ELEC
CHECKING THE BULBS AND BULB SOCKETS
8-5
EAS00733
CHECKING THE BULBS AND
BULB SOCKETS
Check each bulb and bulb socket for damage
or wear, proper connections, and also for con-
tinuity between the terminals.
Damage/wear
Repair or replace the bulb,
bulb socket or both.
Improperly connected
Properly connect.
No continuity
Repair or replace the bulb,
bulb socket or both.

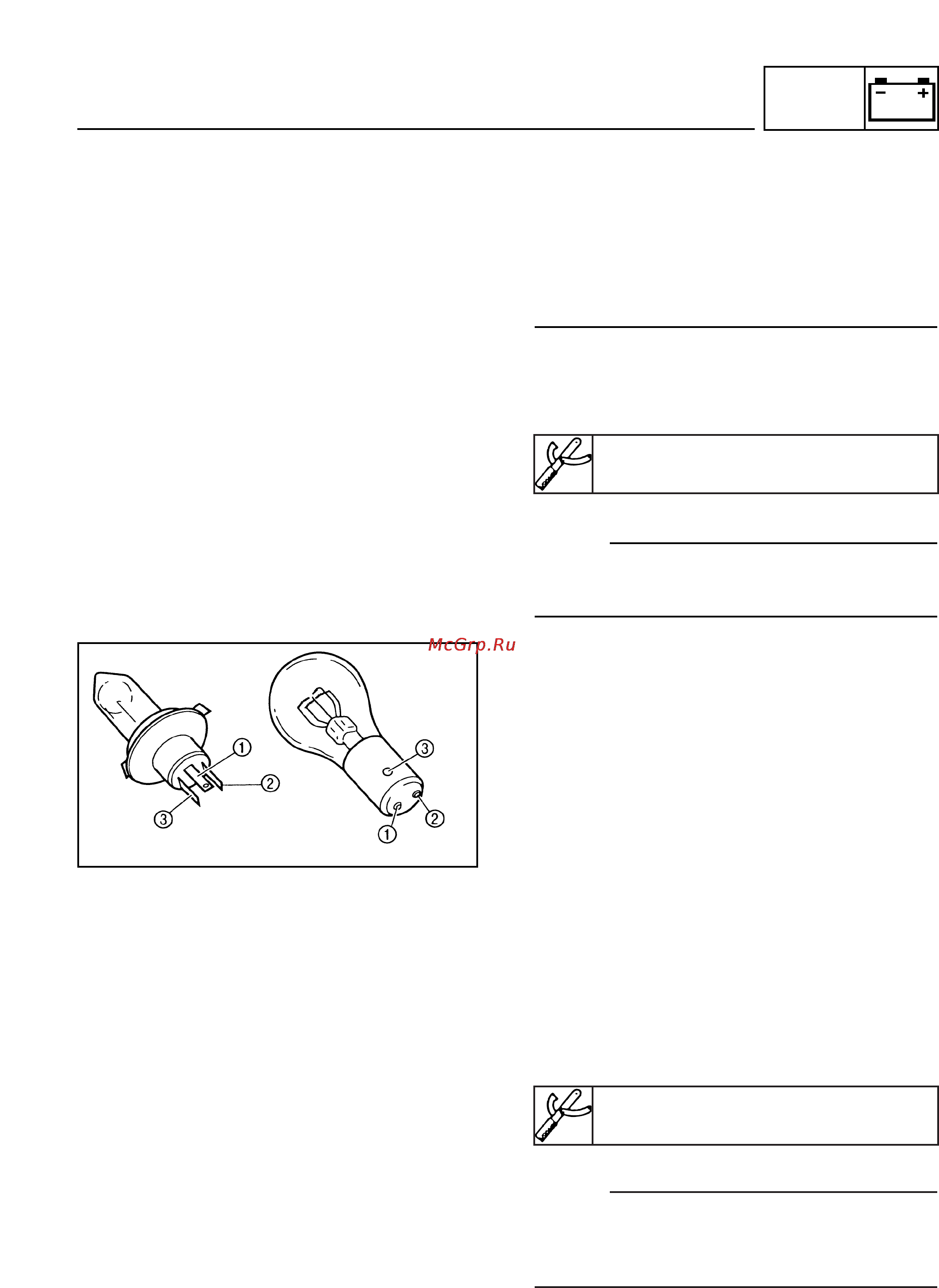

TYPES OF BULBS
The bulbs used on this scooter are shown in
the illustration on the left.
• Bulbs a and b are used for the headlights
and usually use a bulb holder that must be
detached before removing the bulb. The
majority of these types of bulbs can be
removed from their respective socket by
turning them counterclockwise.
• Bulbs c is used for turn signal and
tail/brake lights and can be removed from
the socket by pushing and turning the bulb
counterclockwise.
• Bulbs d and e are used for meter and
indicator lights and can be removed from
their respective socket by carefully pulling
them out.
CHECKING THE CONDITION OF THE
BULBS
The following procedure applies to all of the
bulbs.
1. Remove:
• bulb
ss
WARNING
Since the headlight bulb gets extremely hot,
keep flammable products and your hands
away from the bulb until it has cooled
down.
CAUTION:
• Be sure to hold the socket firmly when
removing the bulb. Never pull the lead,
otherwise it may be pulled out of the ter-
minal in the coupler.
b
a
c
d
e
