Yamaha JOG CS50 (Z) (2002) [83/204] Inspection and repair
![Yamaha JOG CS50 (Z) (2002) [83/204] Inspection and repair](/views2/1121429/page83/bg53.png)

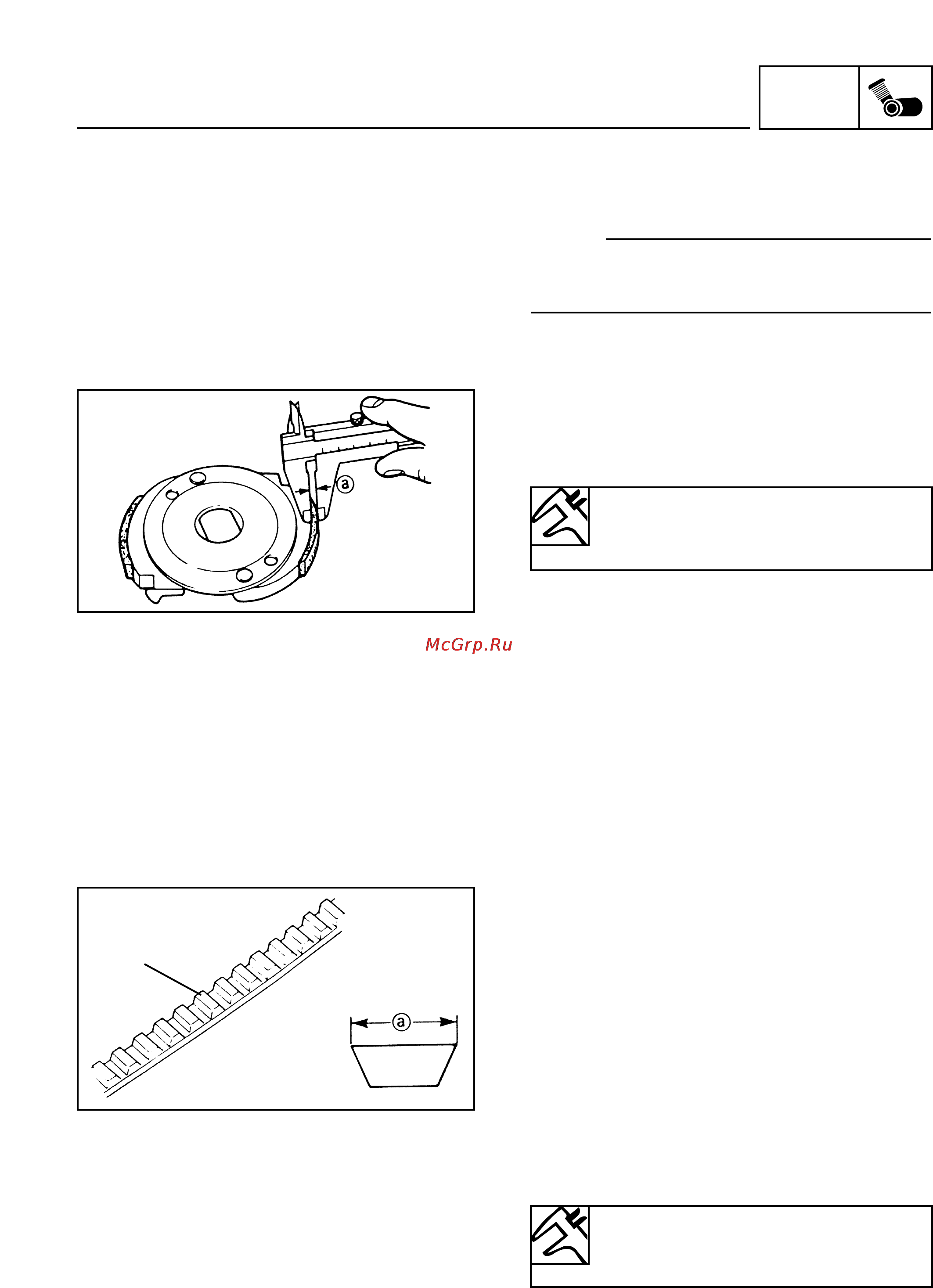

ENG
INSPECTION AND REPAIR
4-20
6. Inspect:
• clutch shoes
Shiny parts
Polish with sand paper.
NOTE:
After using sand paper, clean off the polished
particles with a cloth.
7. Measure:
• clutch shoe thickness
a
Outside specified value
Replace
EAS00320
CHECKING THE V-BELT
1. Check:
• v-belt
Cracks/damage/wear
Replace
Grease/oil
Clean the primary and
secondary sheave.
2. Measure:
• v-belt width a
Out of specification
Replace
Clutch shoe thickness
2.0 mm
<Wear limit>: 1.0 mm
V-belt width
16.5 mm
<Limit>: 15.7 mm
