Yamaha JOG CS50 (Z) (2002) [129/204] Chassis
![Yamaha JOG CS50 (Z) (2002) [129/204] Chassis](/views2/1121429/page129/bg81.png)
CHAS
FRONT WHEEL
7-1
EAS00518
CHASSIS

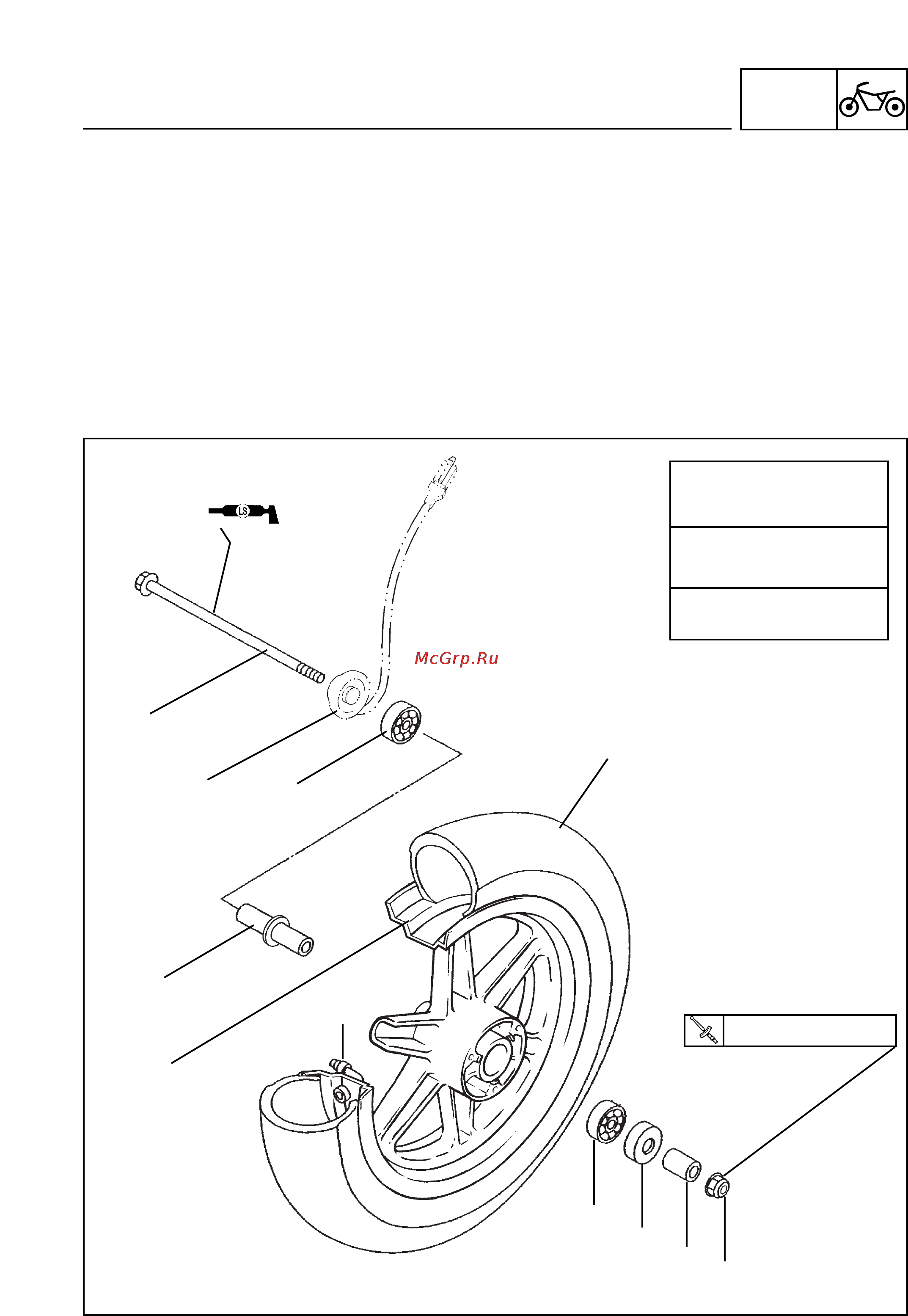

FRONT WHEEL
Wheel axle
Speed sensor unit
Bearing
Collar
Valve
Tyre
Front rim
Oil seal
Spacer
10 Nut
Tyre:
Size: 110/70-12
Type: 47 L
Rim runout limit:
Vertical: 1.0 mm
Lateral: 1.0 mm
Wheel axle bend limit:
0.25 mm
47.5 Nm (4.75 m • kg)
