COOL
RADIATOR AND WATER PUMP
5-2

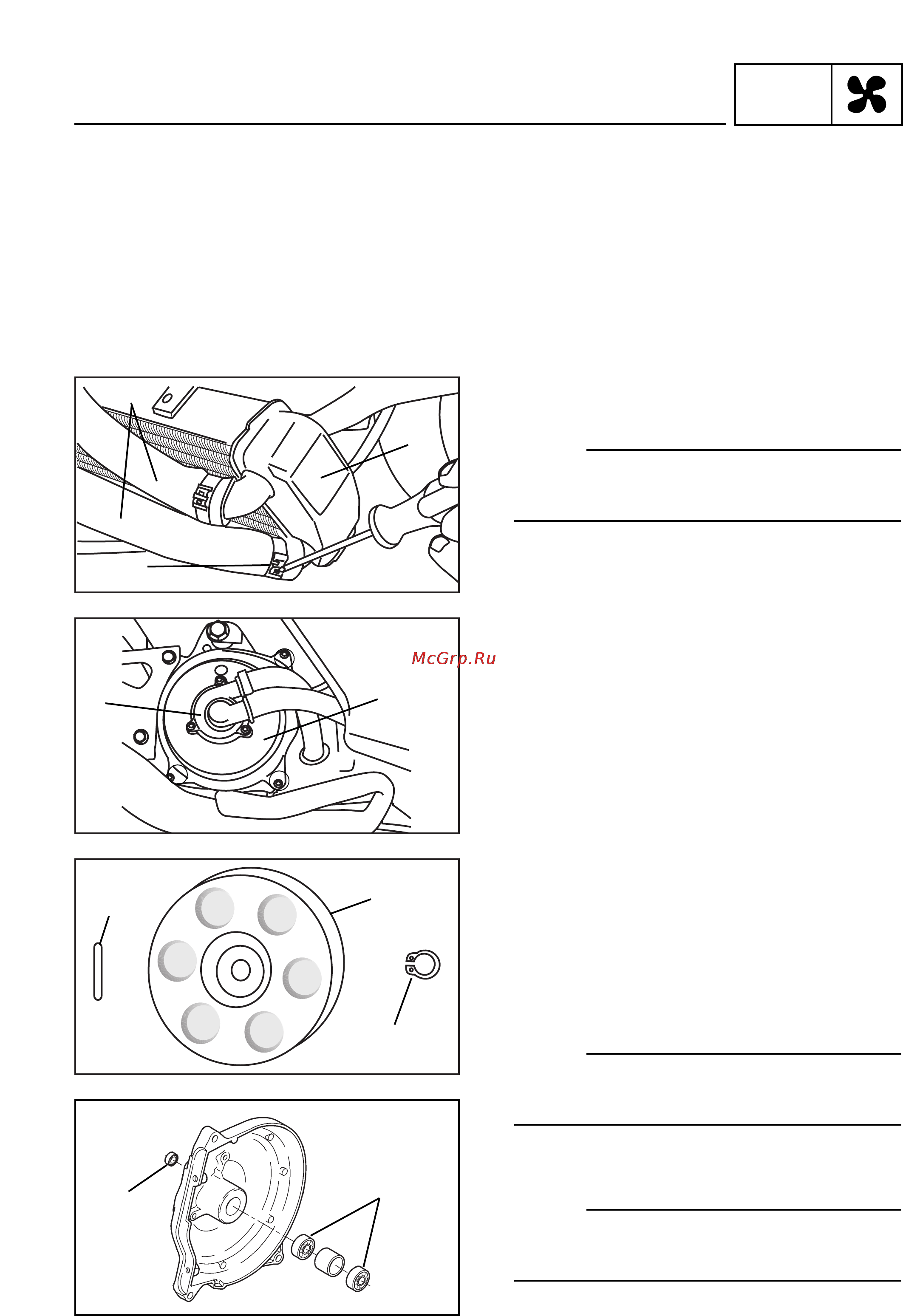

REMOVING THE RADIATOR
1. Remove:
• front upper cowling
• front middle cowling
• front lower cowling
Refer to “FRONT COWLING AND FOO-
TREST” in chapter 3.
2. Drain:
• coolant (from cooling system)
Refer to “CHANGING THE COOLANT” in
chapter 3.
3. Remove:
• hose clamp
NOTE:
Remove the hose clamp with a thin flatted-
head screwdirver.
4. Remove:
• radiator hoses
• radiator
EAS00470
REMOVING THE WATER PUMP
1. Drain:
• coolant (from cooling system)
Refer to “CHANGING THE COOLANT” in
chapter 3.
2. Remove:
• water pump cover
• crankcase cover (right)
3. Remove:
• circlip
• water pump drive pulley
• pin
• impeller
4. Remove:
• bearings
NOTE:
Remove the bearing and oil seal from the out-
side of the crankcase cover (right).
5. Remove:
• water pump seal
NOTE:
Remove te water pump seal from the inside of
the crankcase cover (right)
