Overview
1
8
Part Names and Functions
2
E
This is a state-of-art WDR zoom camera which employed the
x32 zoom lens and digital zoom IC to monitor up to 320 times
as large as an original image.
SCC-C4207(P)/C4307(P) has the following functions.
●
WDR for distinct photographing of both bright and dark
parts of an image.
●
DAY/NIGHT to raise the sensitivity by automatic
conversion into the White & Black mode at night or in poor
illumination environment.
●
Low - Light Surveillance function that enables image
capture even under extremely low light conditions.
●
White Balance function that provides accurate color
rendition under any light conditions.
●
BLC function that enables effective back light
compensation even under a spotlight or a very bright
incident light.
●
Auto Focus function that automatically tracks and focuses
on the moving subject.
●
Privacy Zone function to hide a special area for privacy
protection.
●
RS485/ Wired remote control function.
Broadcast System
●
SCC-C4207/4307 : NTSC System
●
SCC-C4207P/4307P : PAL System
Power System/Power Consumption
●
SCC-C4207(P): DC 12V/5.5W
●
SCC-C4307(P): AC 24V, DC 12V/6W

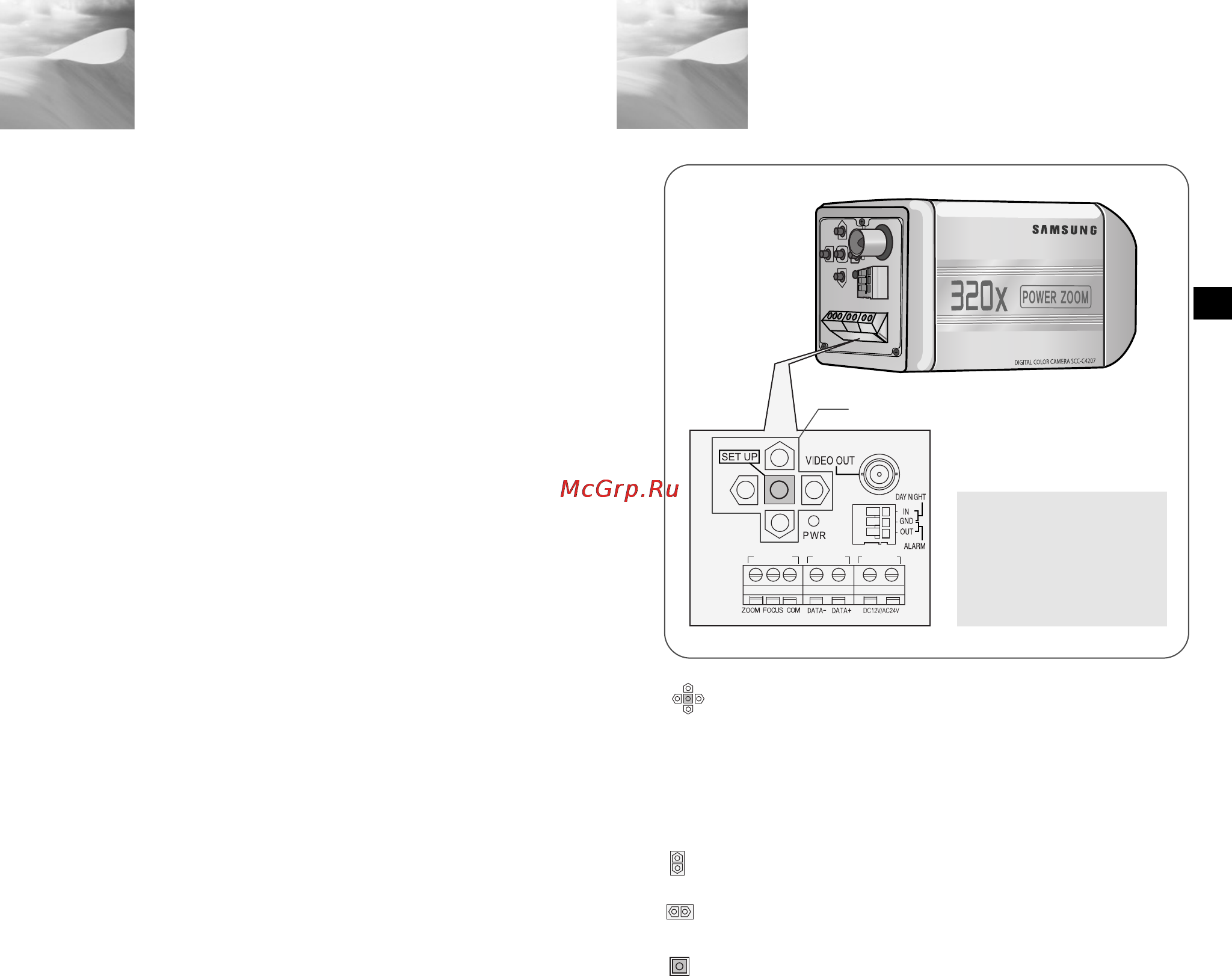

REMOTE RS-485 PWR IN
SET-UP button
The function of the SET-UP button varies depending on
whether you are currently in Normal Operation mode (i.e.,
the Setup Menu is not displayed) or Setup Menu mode.
✔
In Normal Operation Mode
- UP/ DOWN buttons : Use as the ZOOM Tele button
and the ZOOM Wide button respectively.
- LEFT/ RIGHT buttons : Use as the FOCUS Near
button and the FOCUS Far button respectively.
- SET- UP button: Use to enter the Setup Menu.
Hold the SET- UP button for longer than 3 seconds to
enter the Setup Menu.
Press the [SET UP] switch shortly (within 1 sec.) to
start the AF function.
SET-UP button
Instead of “POWER”, “DC IN”
is writtern in SCC-C4207(P).
Instead of “POWER”, “PWR
IN” and instead of “GND”,
“DC12&AC24V” is writtern in
SCC-C4307(P).
