16 Chapter 2 Getting Started

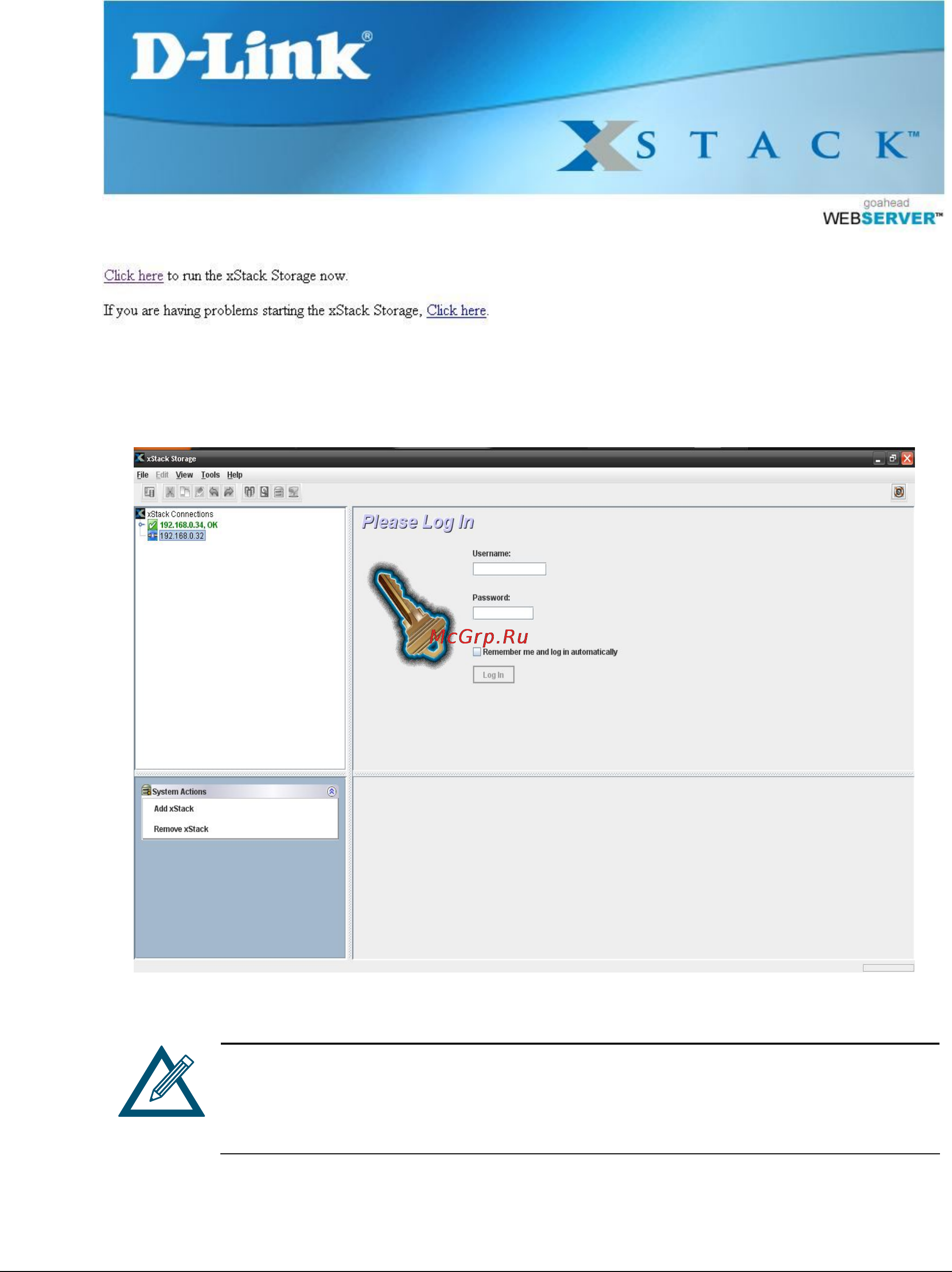

Figure 2-7. xStack Storage Management Center Home Page

Figure 2-8. Example of the xStack Storage Management Center Login Screen

The xStack Storage Management Center requires the latest version of Java

Runtime Environment (JRE). If the latest version of JRE is not installed on

the management PC, xStack will let you download it if the PC has Internet

access. The minimum version of JRE is v1.6.0.0.

3. In the View panel, click the xStack Storage system you want to log in to if it is not

already selected.
