xStack Storage Management Center Software User’s Guide 35

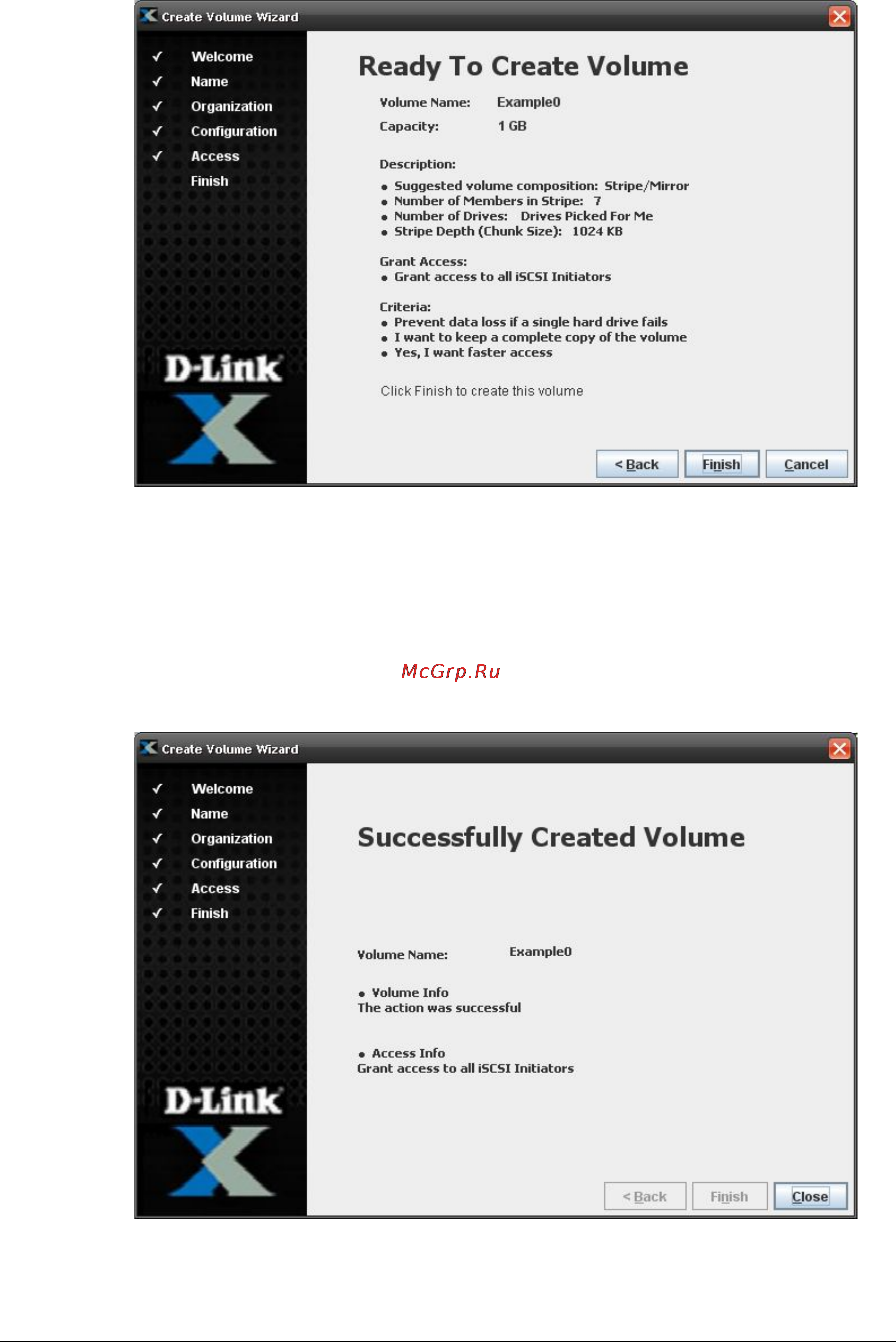

Figure 3-11. Ready to Create Volume Screen

8. If you are satisfied with your selections, click Finish to create the volume.

Otherwise, click the Back button to return to the screen where you need to change

a selection. Then click Next until you return to this screen and click Finish to

create the volume.

If the volume is created, a message similar to the one in Figure 3-12 appears.

Figure 3-12. Successfully Created Volume Message

9. Click Close to close the Wizard and return to the Volume View.
