82 Chapter 5 System Administration

The advanced settings in Figure 5-13appear.

3. In the Value column, perform one of the following steps:

– If the value is selected from a drop-down list, click in the field and select the

desired value.

– If the value is entered in the field, double-click in the field and enter the desired

value.

4. Click Apply.

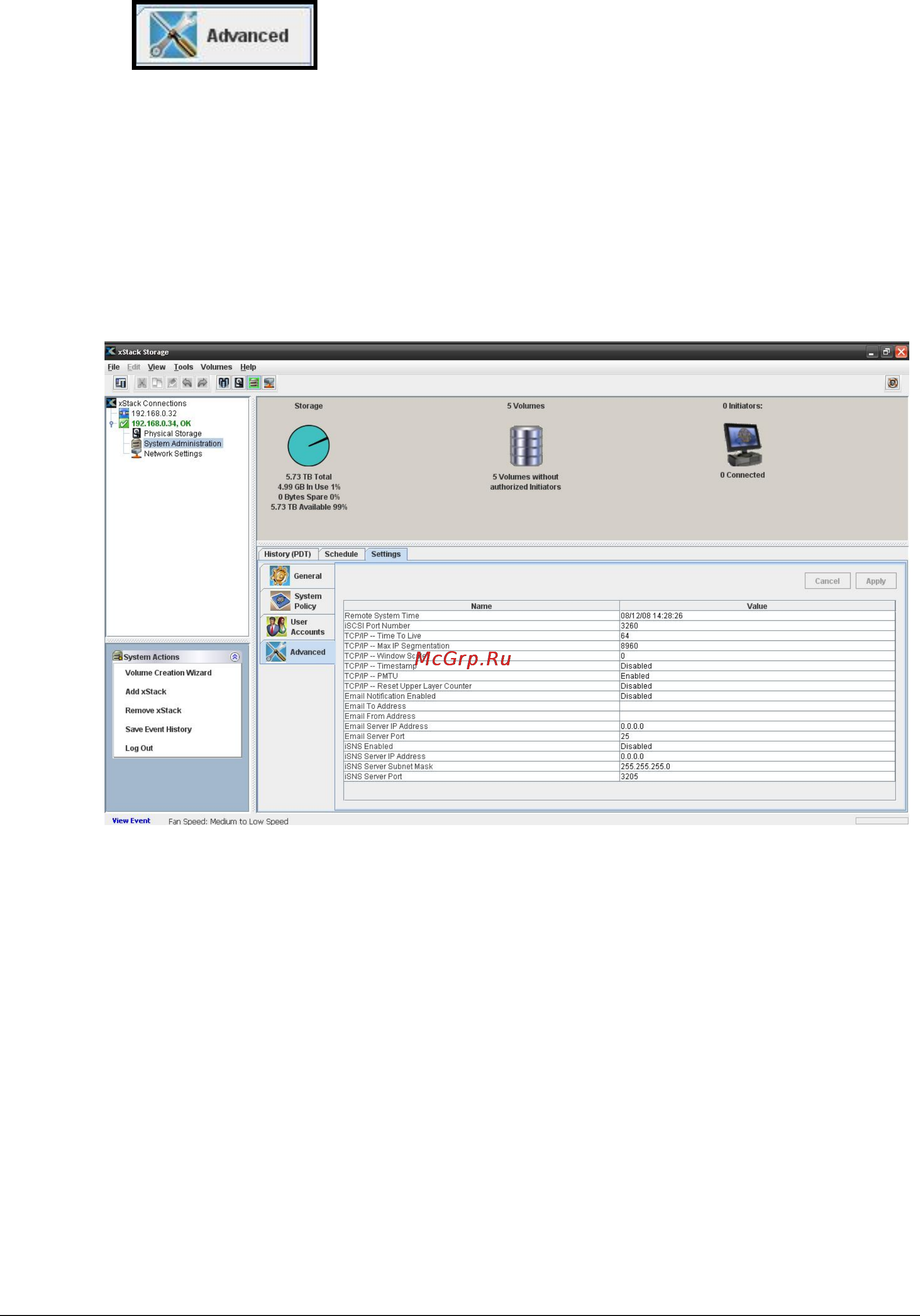

Figure 5-13. Settings Tab (Advanced Settings Shown)
