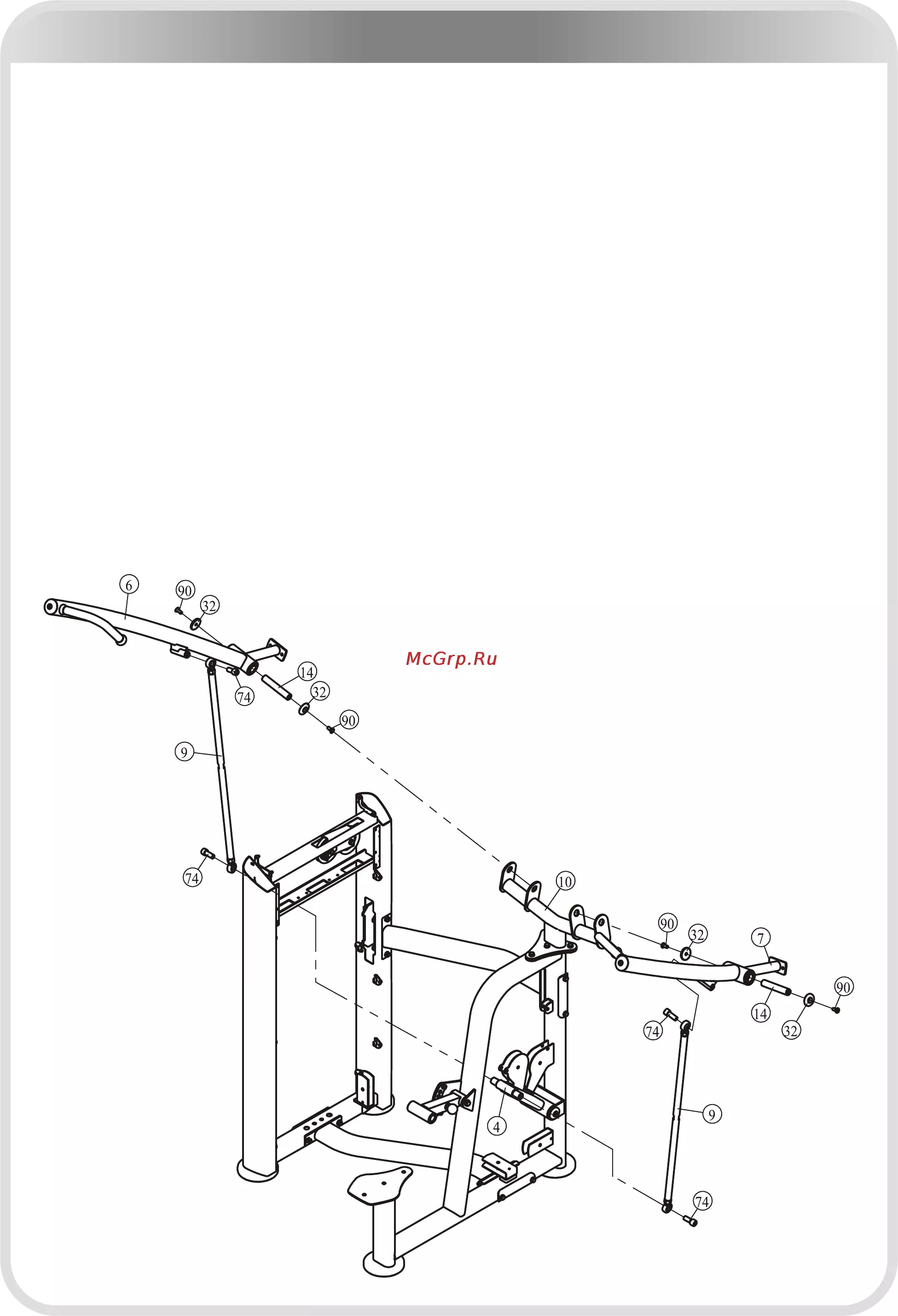

Assembly

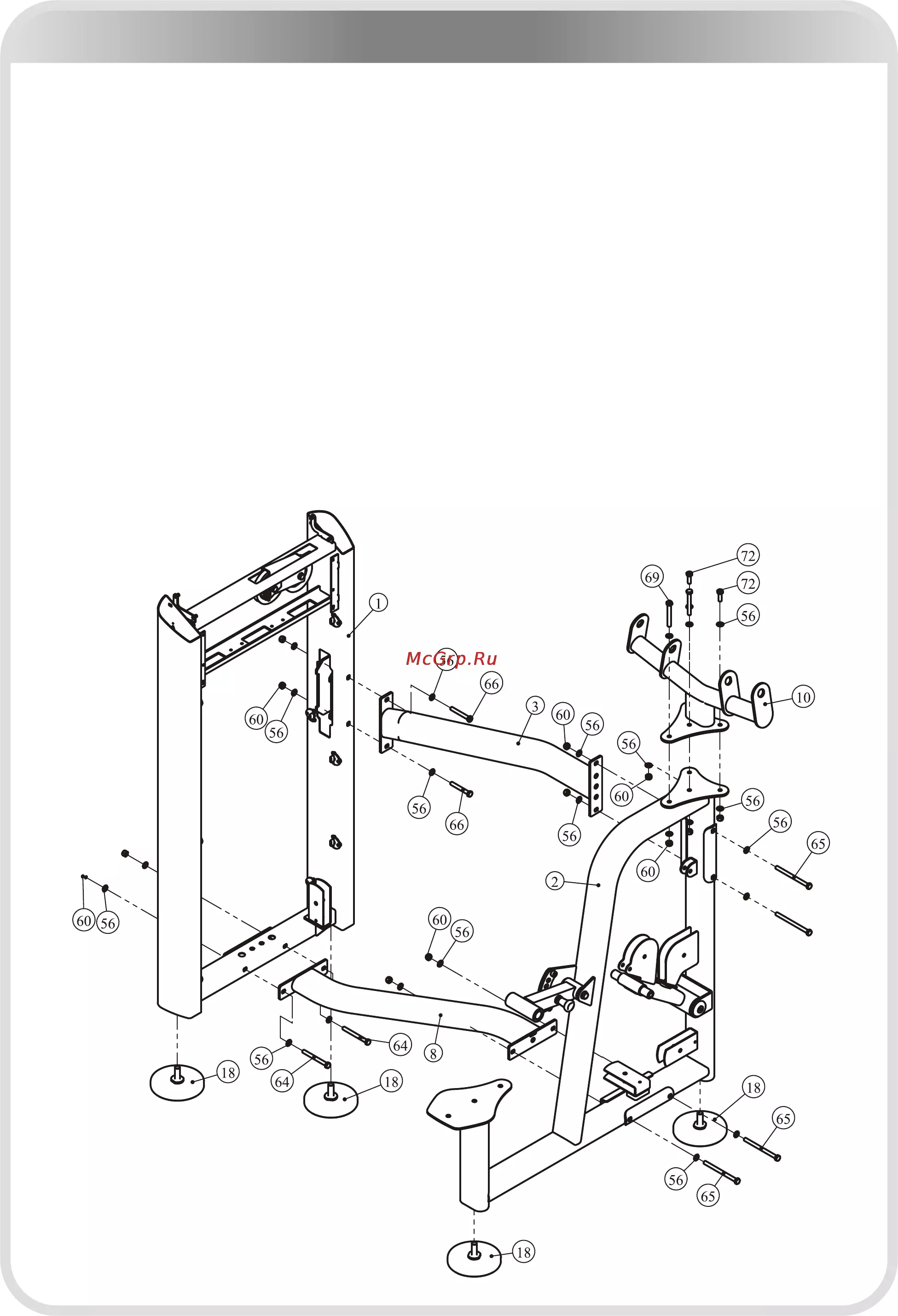

1. Attach two Adjustable Foot plate (#18) to the Weight Stack Frame (#1).

2. Attach two Adjustable Foot plate (#18) to the Main Frame (#2).

3. Attach the Bottom Cross Brace (#8) to the Weight Stack Frame (#1) and the Main

Frame (#2) using:

● two M10*100 HHB (#64) ● two M10*135 HHB (#65)

● eight Φ11*Φ20*2 Flat Washers (#56) ● four M10 Nylon Lock Nuts (#60)

4. Attach the Rear Cross Brace (#3) to the Weight Stack Frame (#1) and the Main

Frame (#2) using:

● two M10*135 HHB (#65) two M10*75 HHB (#66)

● Φ Φ

M10 Nylon Lock Nuts (#60)

11* 20*2 Flat Washers (#56)

5. Attach the Upper Frame (#10) to the Main Frame (#2) using:

●

two M10*30 HHB (#72)

two M10*80 HHB (#69)

● eight Φ11*Φ20*2 Flat Washers (#56)

● four M10 Nylon Lock Nuts (#60)

Note: Hand tighten Bolts and Nylon Lock Nuts until machine is fully assembled.

●

eight

●

four

STEP 1
