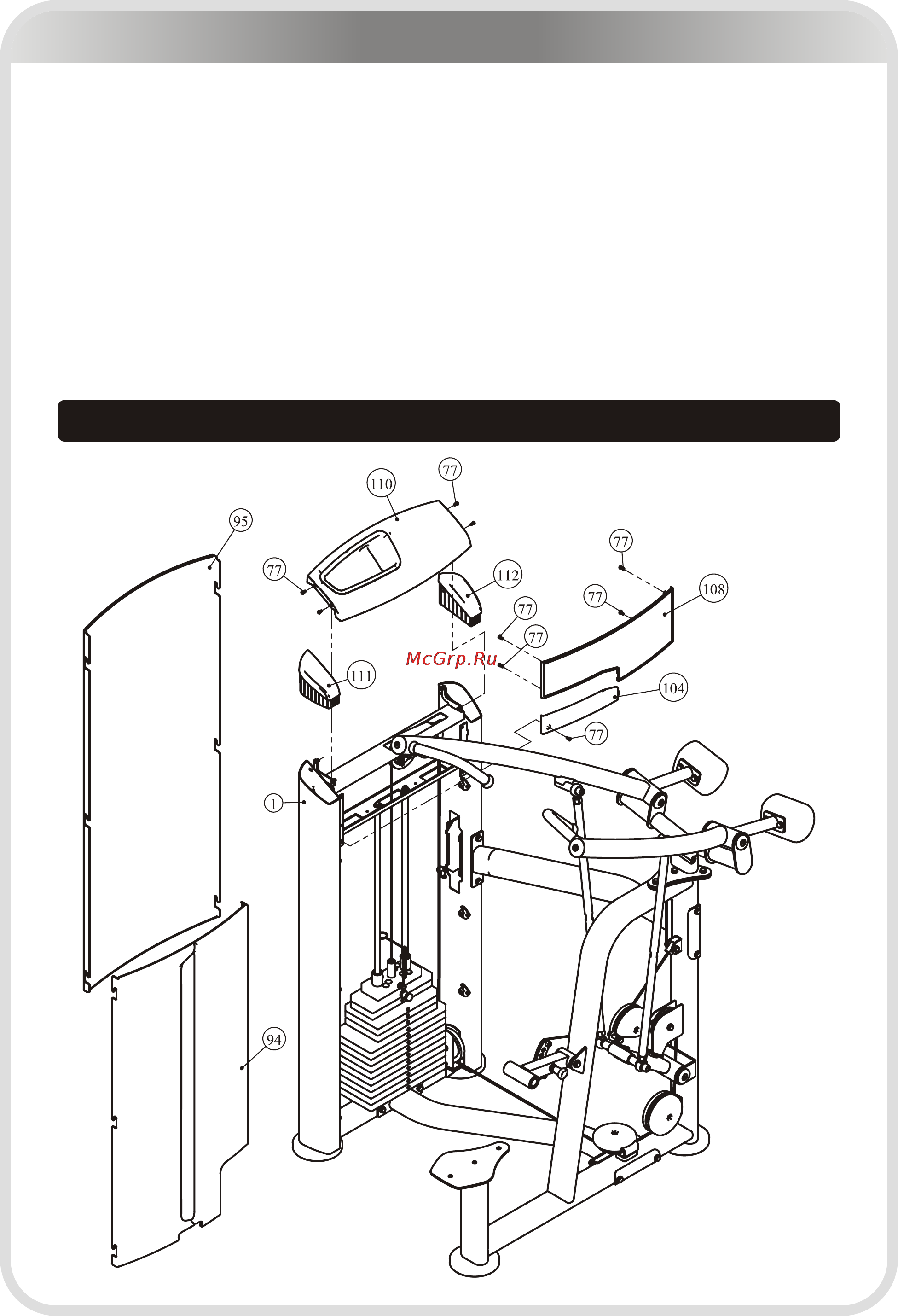

Assembly

Here is the assembly instruction for Plastic Cover !

1. Attach one Front Shroud (#94) to the Weight Stack Frame(#1).

2. Attach one Rear Shroud (#95) to the Weight Stack Frame(#1).

3. Attach the Top Front Shroud (#108) and the Plastic Cover (#104) to the Weight

Stack Frame (#1) using:

● five M5*12 Screws (#77)

4. Attach the Top Cover (#110) to the Weight Stack Frame (#1) using:

● four M5*12 Screws (#77)

5. Attach the Left Plug (#111) and Right Plug (#112) to the Weight Stack Frame (#1).

Note: Wrench Tighten bolts and Nylon Lock nuts.
