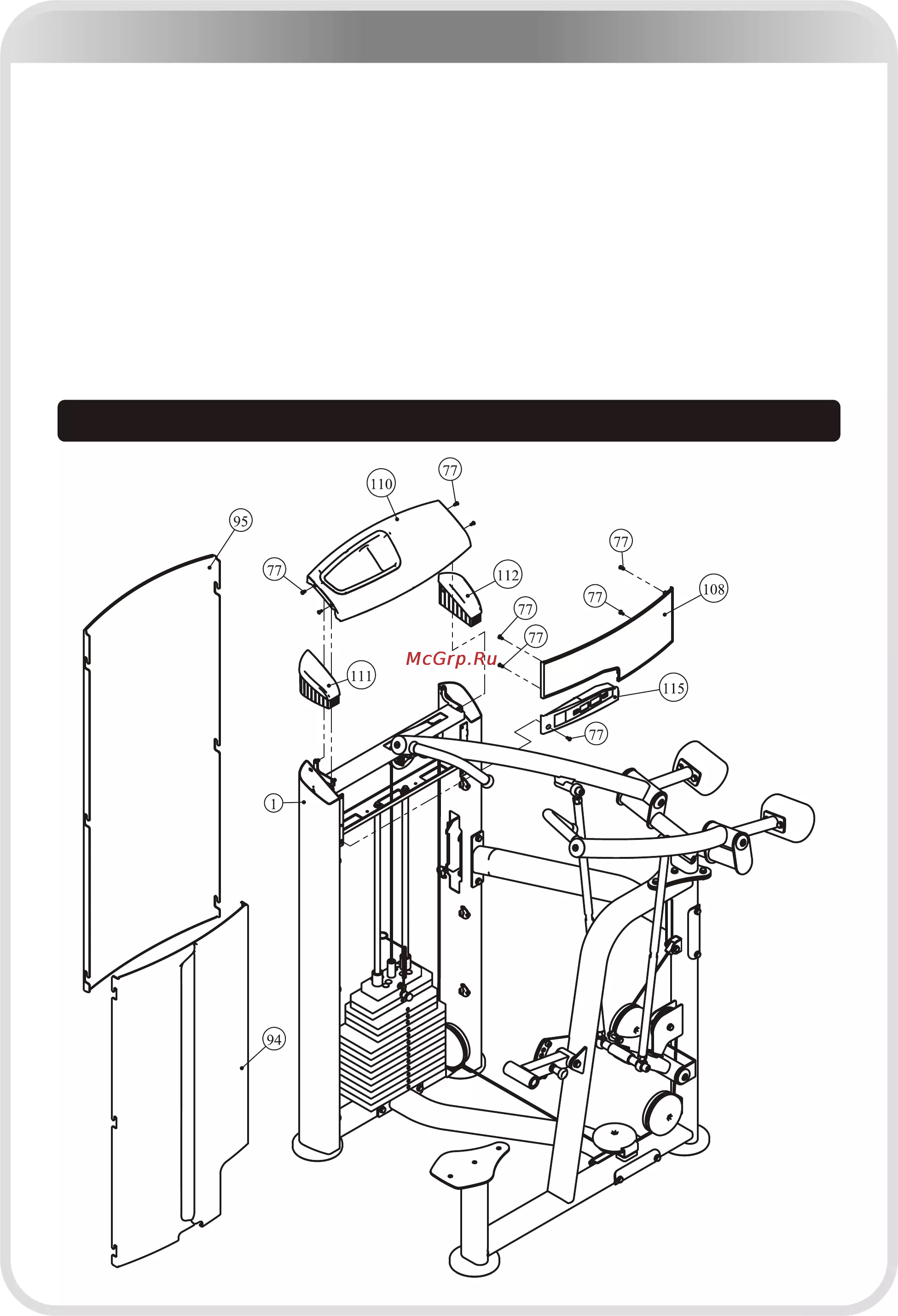

Assembly

1. Attach the Cable (#24) to the Top Plate (#19), and go through two 4.5" Pulley.

2. Attach one 4.5" Pulley (#23) to the Weight Stack Frame (#1) using:

● one M10*50 SHCS (#73) ● one M10 Nylon Lock Nuts (#60)

● two Φ140*26 Pulley Covers (#38)

3. Attach three 4.5" Pulleys (#23) to the Main Frame (#2) using:

● one M10*50 HHB (#68)

●

two M10*50 SHCS (#73)

● two Φ11*Φ20*2 Flat Washers (#56) ● three M10 Nylon lock Nuts (#60)

● three Φ140*26 Pulley Covers (#38)

4. Attach one 4.5" Pulley (#23) to the Sway Pulley Bracket (#4) using:

one M10*50 SHCS (#73)

one M10*50 HHB (#68)

●

● two Φ11*Φ20*2 Flat Washers (#56)

two M10 Nylon lock Nuts (#60)

●

5. Attach the Cable (#24) to the Main Frame (#2) using:

one M10*45 HHB (#67)

●

● two Φ11*Φ20*2 Flat Washers (#56)

● one M10 Nylon lock Nut (#60) ● one Φ25.4*Φ10*37 Cable End (#41)

● one Φ10*Φ14*20 Spacer (#42)

Note: Wrench Tighten Bolts and Nylon Lock Nuts.
