─ 18 ─

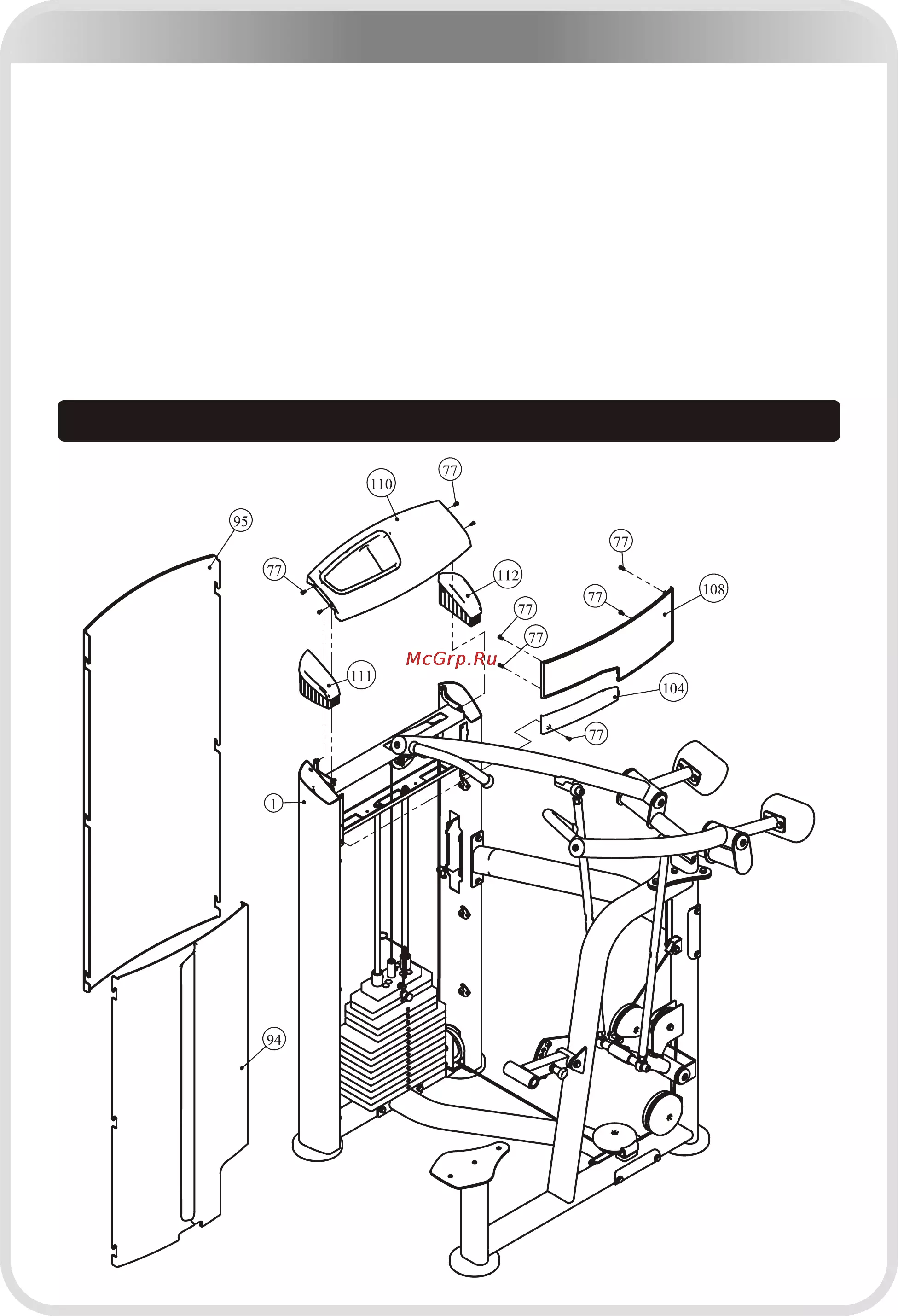

Assembly

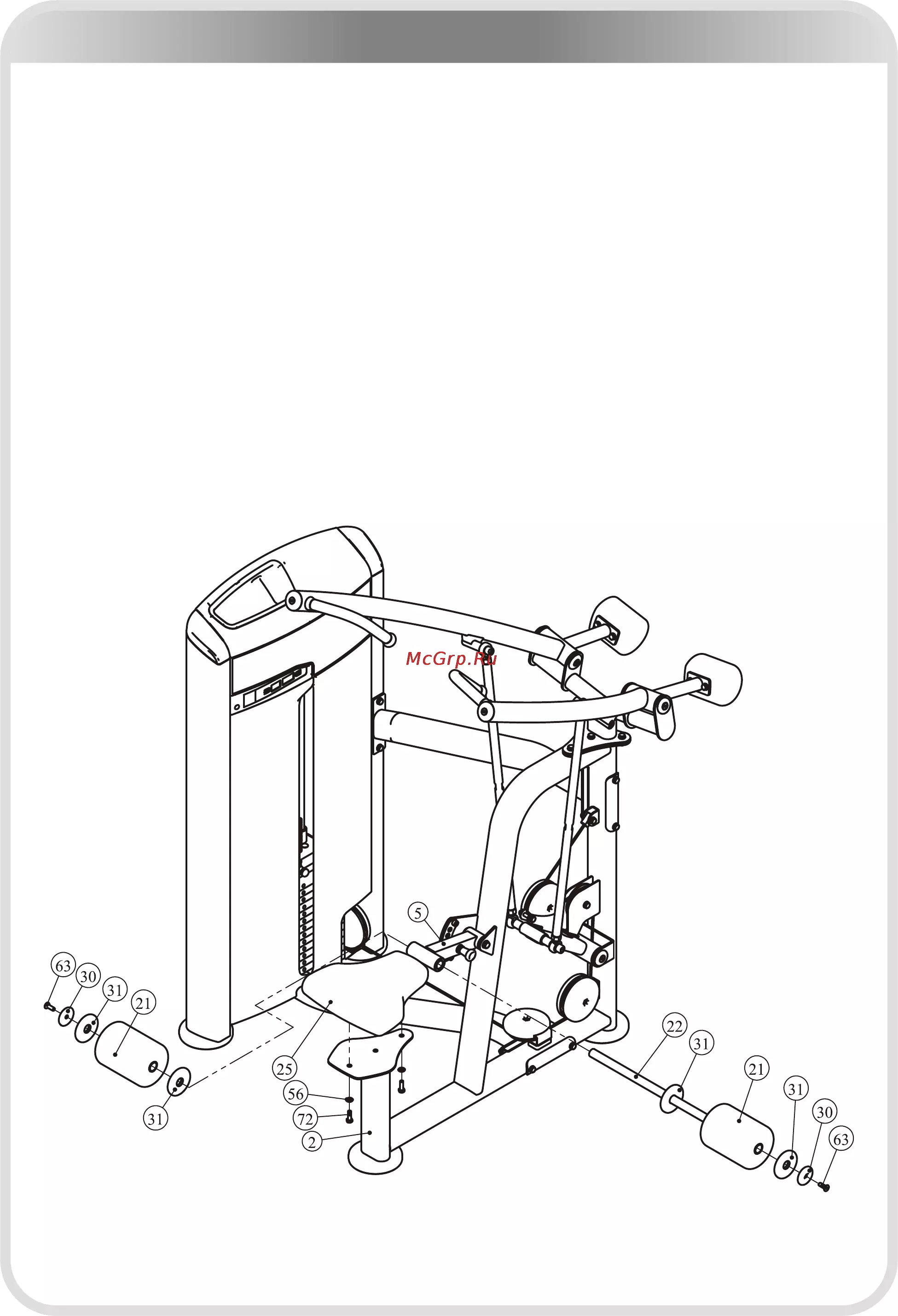

1. Attach the Seat Pad (#25) to the Seat Pad Support (#11) using:

● two M10*30 HHB (#72)

● two Φ11*Φ20*2 Flat Washer (#56)

2. Attach two Short Foam (#21) to the Foam Frame (#5) using:

● one Φ25.2*516 Foam Tube (#22)

● four Φ90*Φ26.2*8.5 Aluminium Ring (#31)

● two Φ60*Φ10.5*10.9 Aluminium Cap (#30)

● two M10*30 FHCS (#63)

3. Wrench Tighten two M8*8 Socket Set Screws(#76).

Note: Wrench Tighten bolts and Nylon Lock nuts.

STEP 6
