─ 12 ─

Assembly

Here is the assembly instruction for 200LBS Weights !

200LBS Weight

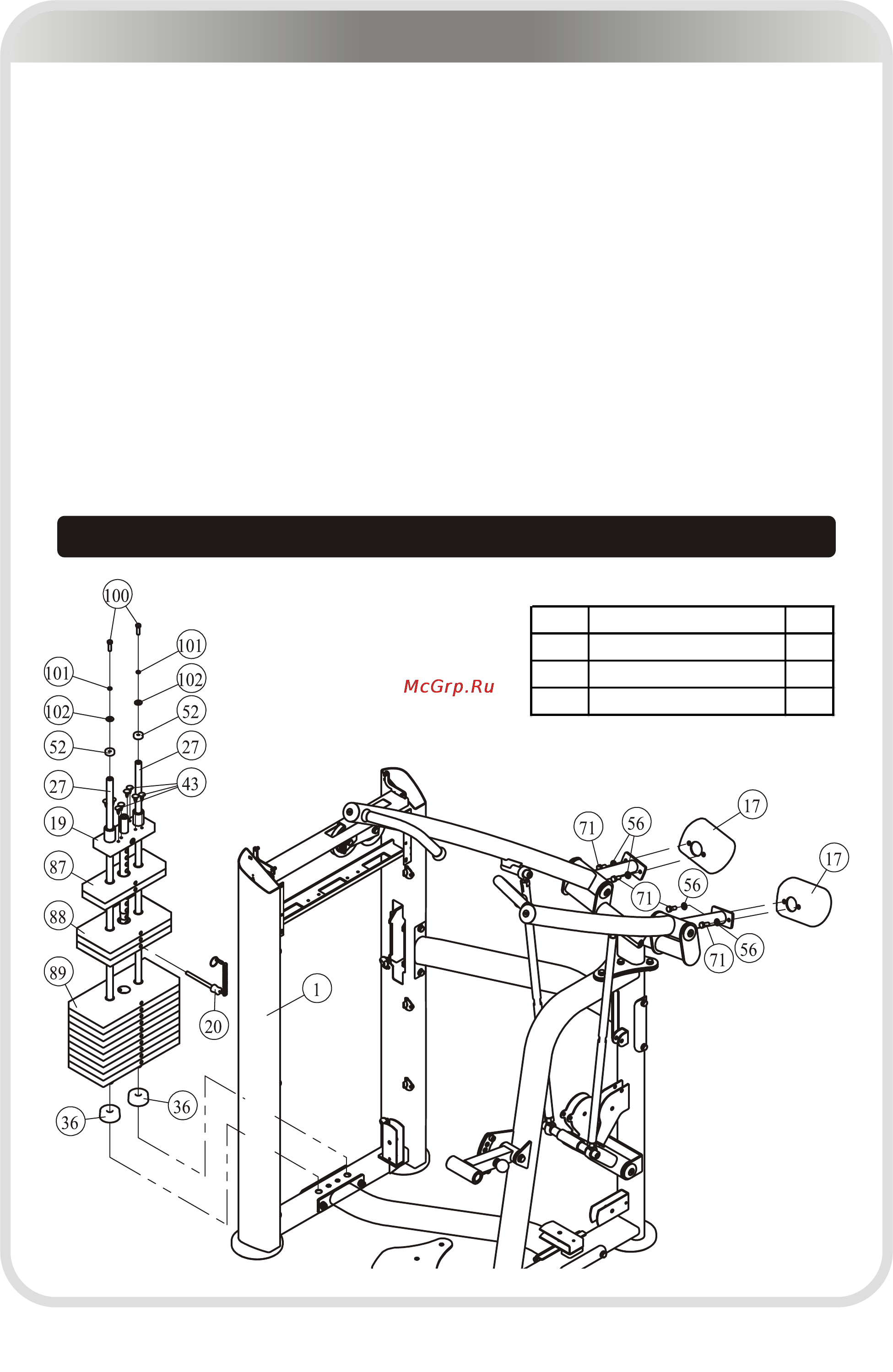

STEP 3

1. Attach:

●

● two 19*1177 Guide Rod (#27) two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#36)

●

three Weight Plate 10LBS (#88)

ten Weight Plate 15LBS (#89)

● two Weight Plate 5LBS (#87) ● one Top Plate (#19)

to the Weight Stack Frame (#1) using:

● two M8*30 HHB (#100) ● two Φ8 Spring Washers (#101)

● two Φ9*Φ22*1.6 Flat Washers (#102) ● two Φ29*Φ19*10 Rubber Plugs (#52)

2. Attach the Selector Pin W/Coil (#20) to the Top Plate (#19).

3. Attach eight Buttons (#43) to the Top Plate (#19).

4. Attach two Rubber Counterweights (#17) to the Left Pull Arm (#6) and the Right

Pull Arm (#7) using:

● four M10*25 HHB (#71) ● four Φ11*Φ20*2 Flat Washers (#56)

Note: Wrench Tighten Bolts.

Item Description Qty

87 Weight Plate 5LBS 2

88 Weight Plate 10LBS 3

89 Weight Plate 15LBS 10
