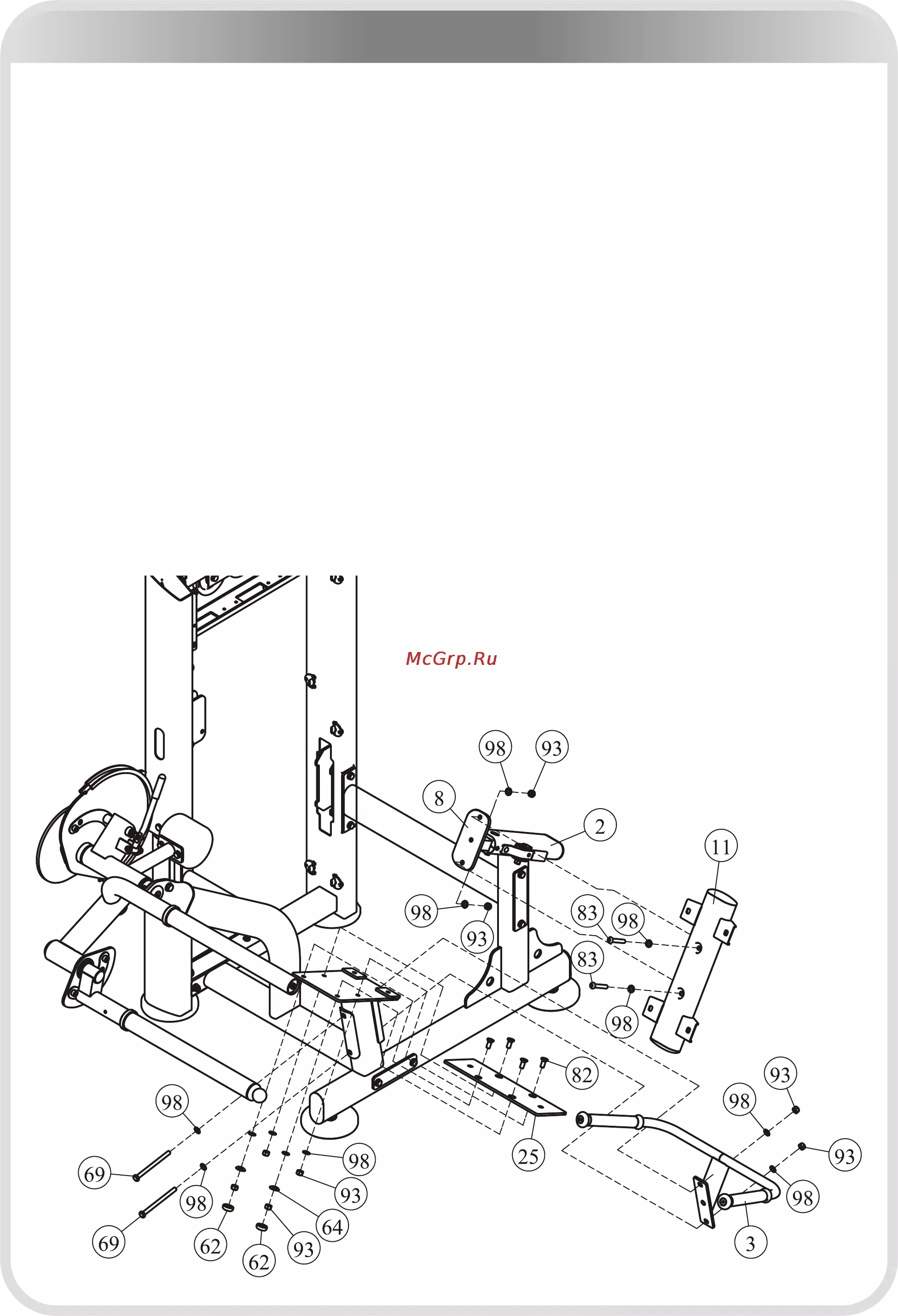

Assembly

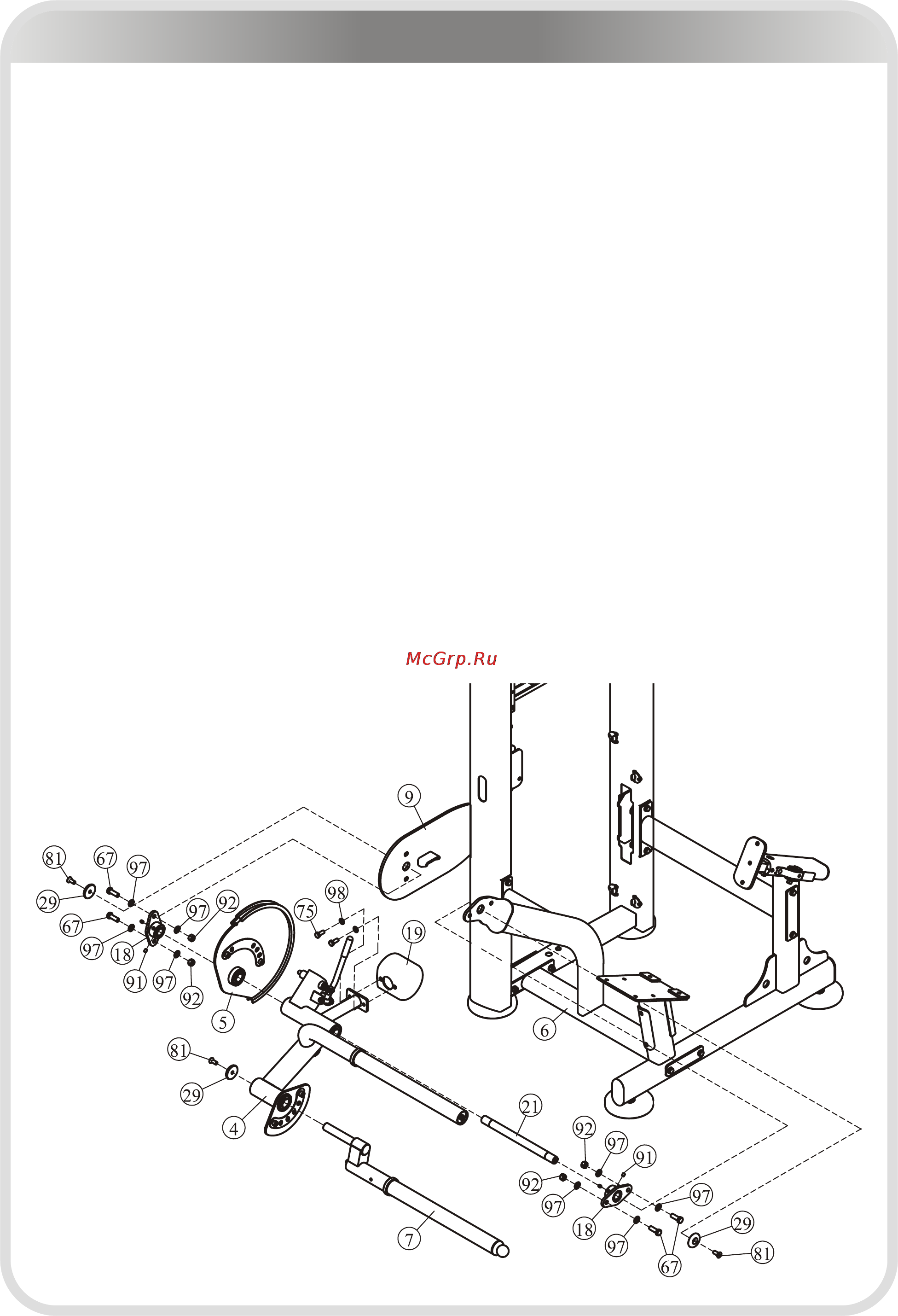

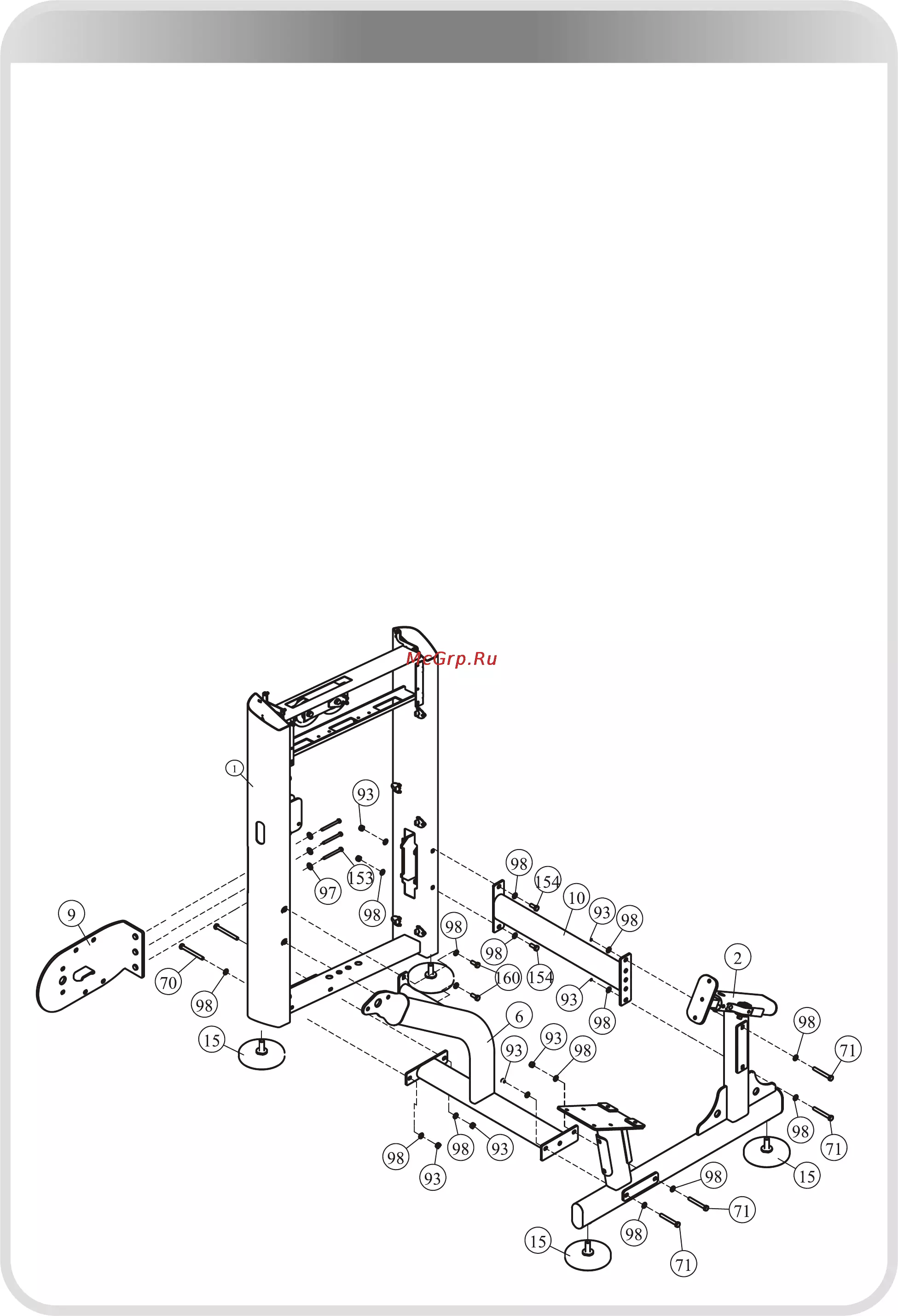

STEP 2

1. Attach one Flange (#18) to the Main Bracket (#9) using:

● two M12*35 HHB (#67) ● four Φ13*Φ24*1.5 Flat Washer (#97)

● two M12 Nylon Lock Nut (#92)

2. Attach the Main Shaft (#21) to the Flange (#18).

3. Attach the Cam (#5) & the Pivot Arm (#4) to the Main Shaft (#21).

4. Attach one Flange (#18) to the Main Shaft (#21).

5. Attach the Flange (#18) to the Bottom Cross Brace (#6) using:

● two M12*35 HHB (#67) ● four Φ13*Φ24*1.5 Flat Washer (#97)

● two M12 Nylon Lock Nut (#92)

6. Attach two Aluminum End Cap (#29) to the Main Shaft (#21) using:

● two M10*30 FHCS (#81)

7. Attach two Flange (#18) to the Main Shaft (#21) using:

● four M8*8 Socket Set Screw (#91)

8. Attach the Swing Tube (#7) to the Pivot Arm (#4) using:

● one Aluminum End Cap (#29)

●

one M10*30 FHCS (#81)

10. Attach the Counter Poise Block (#19) to the Pivot Arm (#4) using:

● two M10*25 HHB (#75) ● two Φ11*Φ20*2 Flat Washer (#98)

Note: Hand tighten bolts and Nylon Lock nuts.
