─ 13 ─

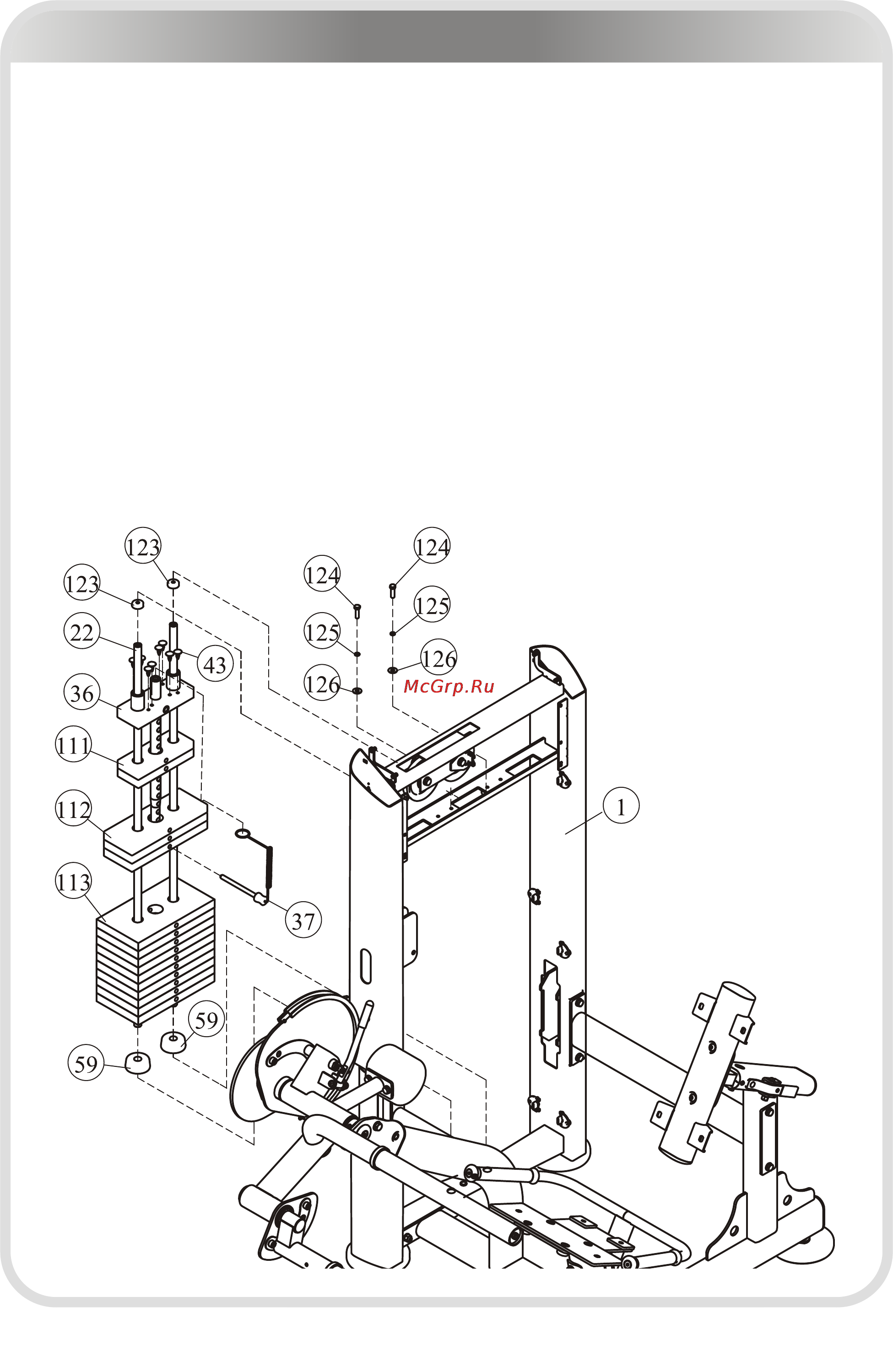

Assembly

STEP 4

1. Attach:

● two Guide Rod (#22)

● two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#59)

● ten Weight Plate 15LBS (#113)

● three Weight Plate 10LBS (#112)

● two Weight Plate 5LBS (#111)

● one Top Plate (#36)

to the Weight Stack Frame (#1) using:

● two M8*30 HHB (#124)

● two Φ8 Spring Washers (#125)

● two Φ9*Φ22*1.6 Flat Washer (#126)

● two Φ29*Φ19*10 Rubber Plug (#123)

2. Attach the Selector Pin W/Coil (#37) & eight Button (#43) to the Top Plate (#36).

Note: Wrench Tighten bolts and Nylon Lock nuts.
