─ 12 ─

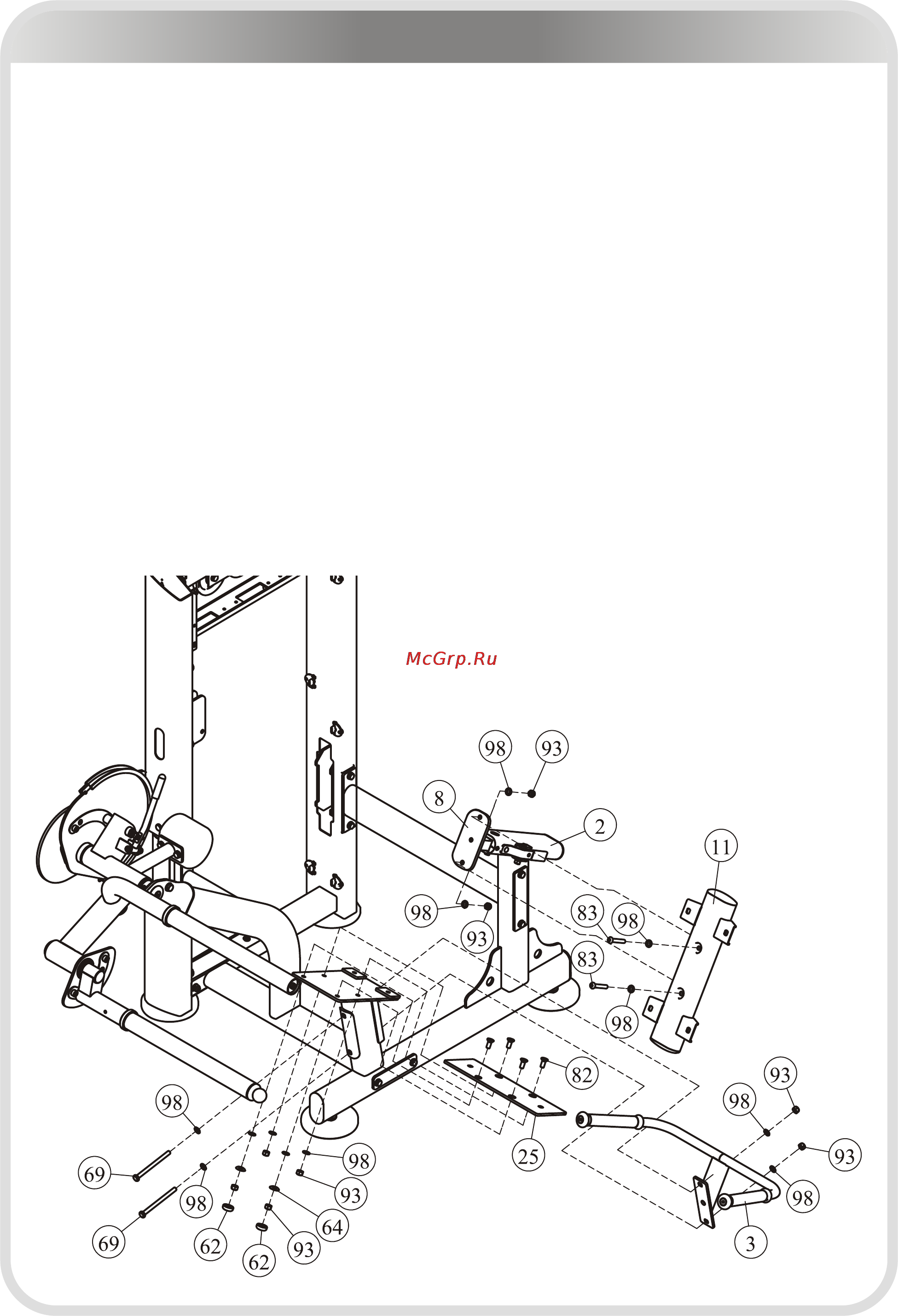

Assembly

STEP 3

1. Attach the Seat Pad Plate (#25) to the Main Frame (#2) using:

● four M10*25 FHCS (#82)

● four Φ11*Φ20*2 Flat Washer (#98)

● four M10 Nylon Lock Nut (#93)

● two Φ27.6*Φ12.8*3.5 Washer(#64)

● two Φ30 Plastic Cap (#62)

2. Attach the Back Pad Support (#11) to the Adjustable tube (#8) using:

● two M10*65 BHCS (#83)

● four Φ11*Φ20*2 Flat Washer (#98)

● two M10 Nylon Lock Nut (#93)

3. Attach the Handle (#3) to the Main Frame (#2) using:

● two M10*135 HHB (#69)

● four Φ11*Φ20*2 Flat Washer (#98)

● two M10 Nylon Lock Nut (#93)

Note: Wrench Tighten bolts and Nylon Lock nuts.
