─ 14 ─
Assembly

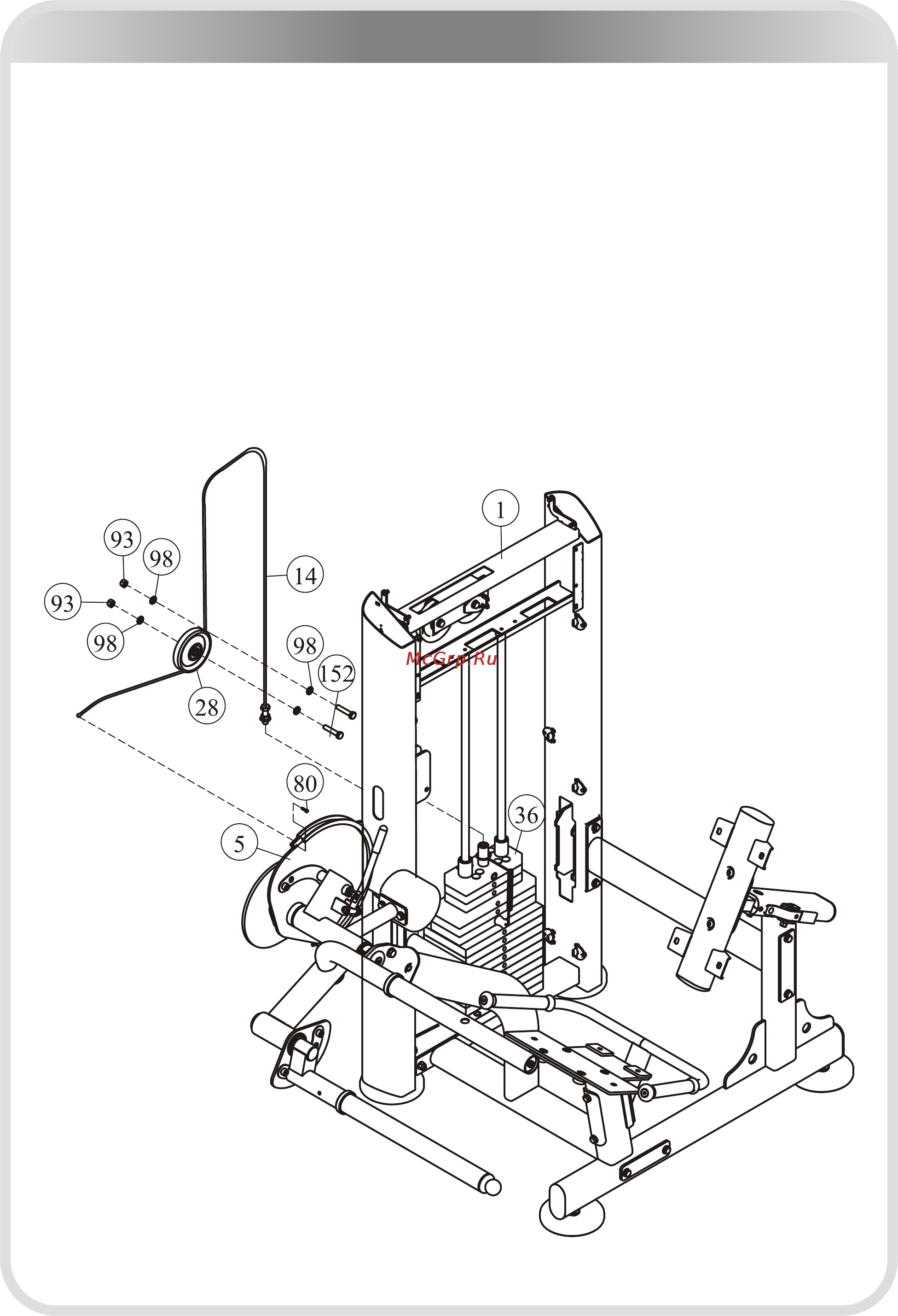

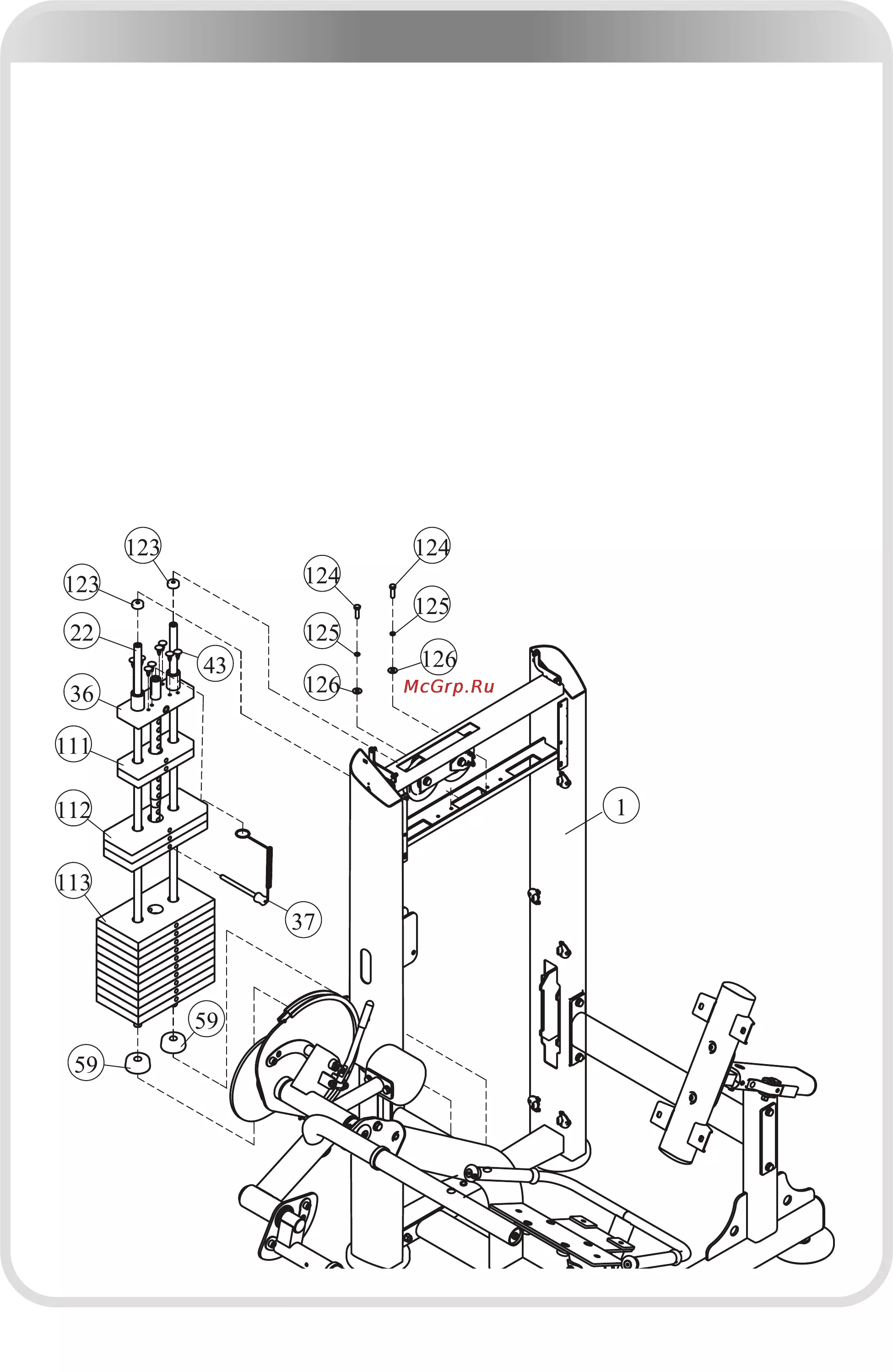

STEP 5
1. Attach the Cable (#14) to the Top Plate (#36).
2. Attach one 4.5" Pulley (#28) to the Weight Stack Frame (#1) using:
● two M10*55 HHB (#152)
● four Φ11*Φ20*2 Flat Washer (#98)
● two M10 Nylon Lock Nut (#93)
3. Attach the Cable (#14) to the Cam (#5) using:
● one M4*15 SHCS (#80)
Note: Wrench Tighten bolts and Nylon Lock nuts.
