Assembly

─ 18 ─

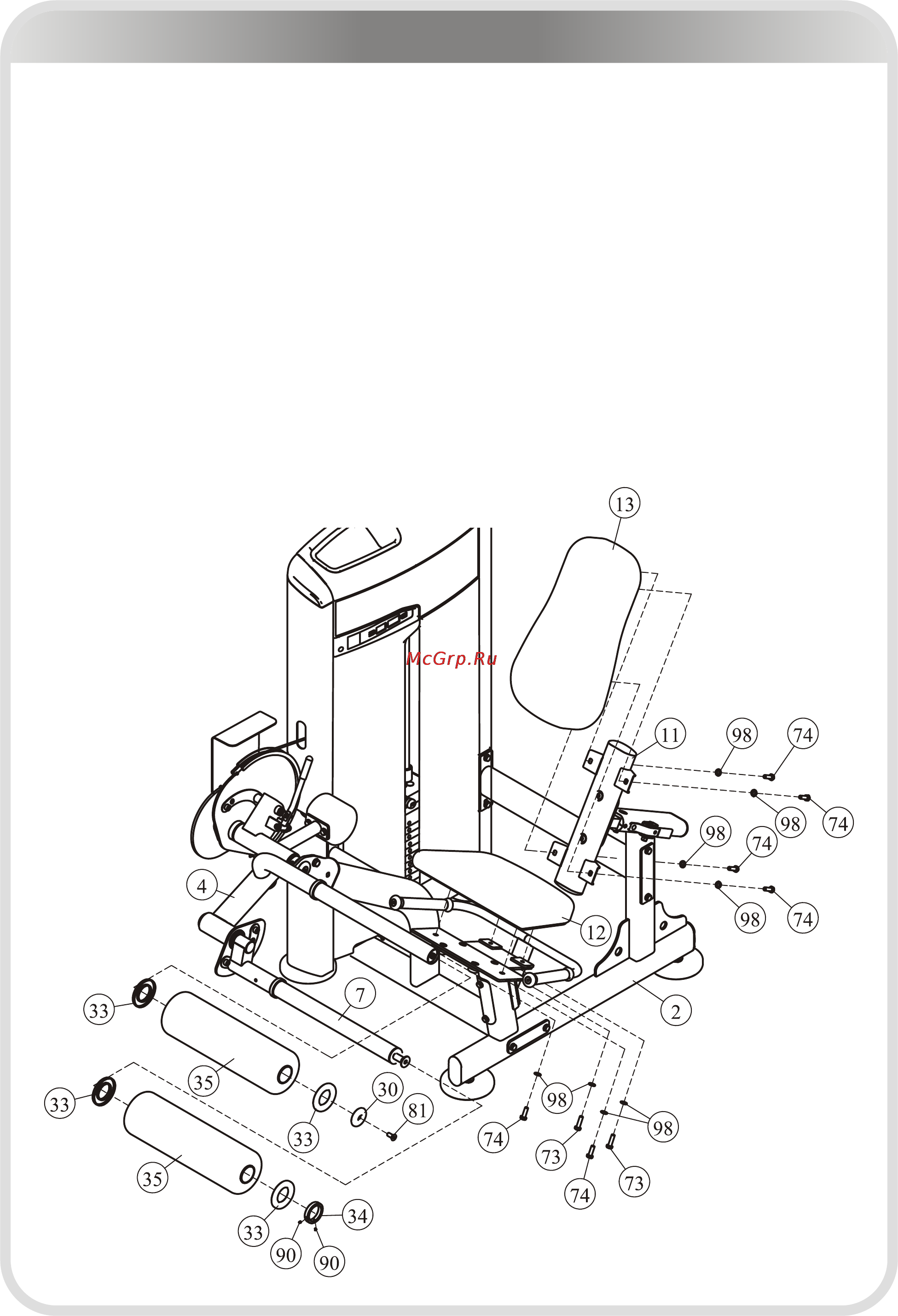

1. Attach the Seat Pad (#12) to the Main Frame (#2) using:

● four Φ11*Φ20*2 Flat Washer (#98)

● two M10*30 HHB (#74)

● two M10*35 HHB (#73)

2. Attach two Roller (#35) to the Swing Tube (#7) & the Pivot Arm (#4) using:

● four Big Collar (#33)

● one Φ65.6*Φ50.5*12.7 Collar (#34)

● two 10-32*6.4 Socket Set Screw (#90)

● one Aluminum End Cap (#30)

● one M10*30 FHCS (#81)

3. Attach the Back Pad (#13) to the Back Pad Support (#11) using:

● four M10*30 HHB (#74)

● four Φ11*Φ20*2 Flat Washer (#98)

Note: Wrench Tighten bolts and Nylon Lock nuts.

STEP 7
