Assembly

─ 17 ─

Here is the assembly instruction for Plastic Cover !

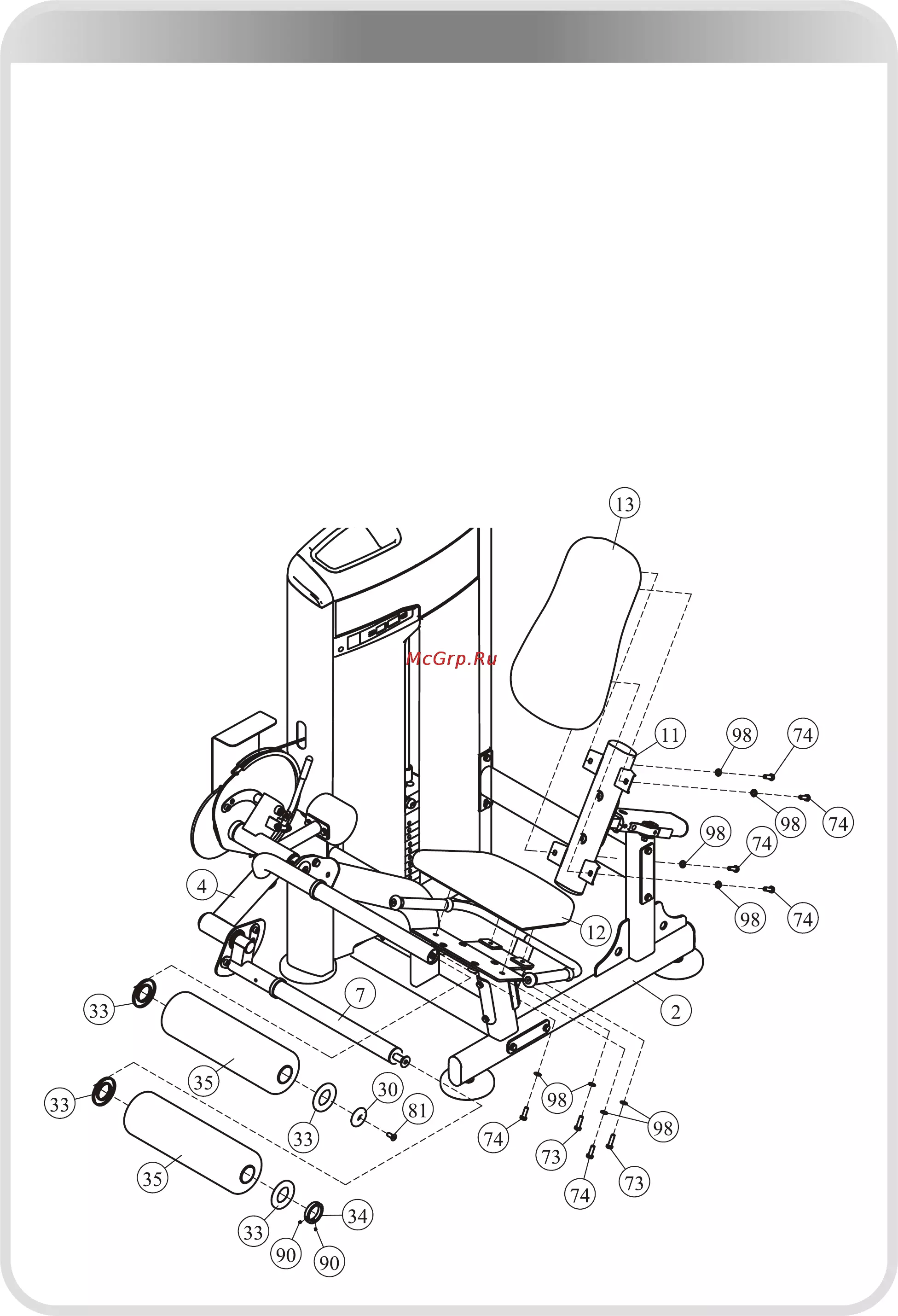

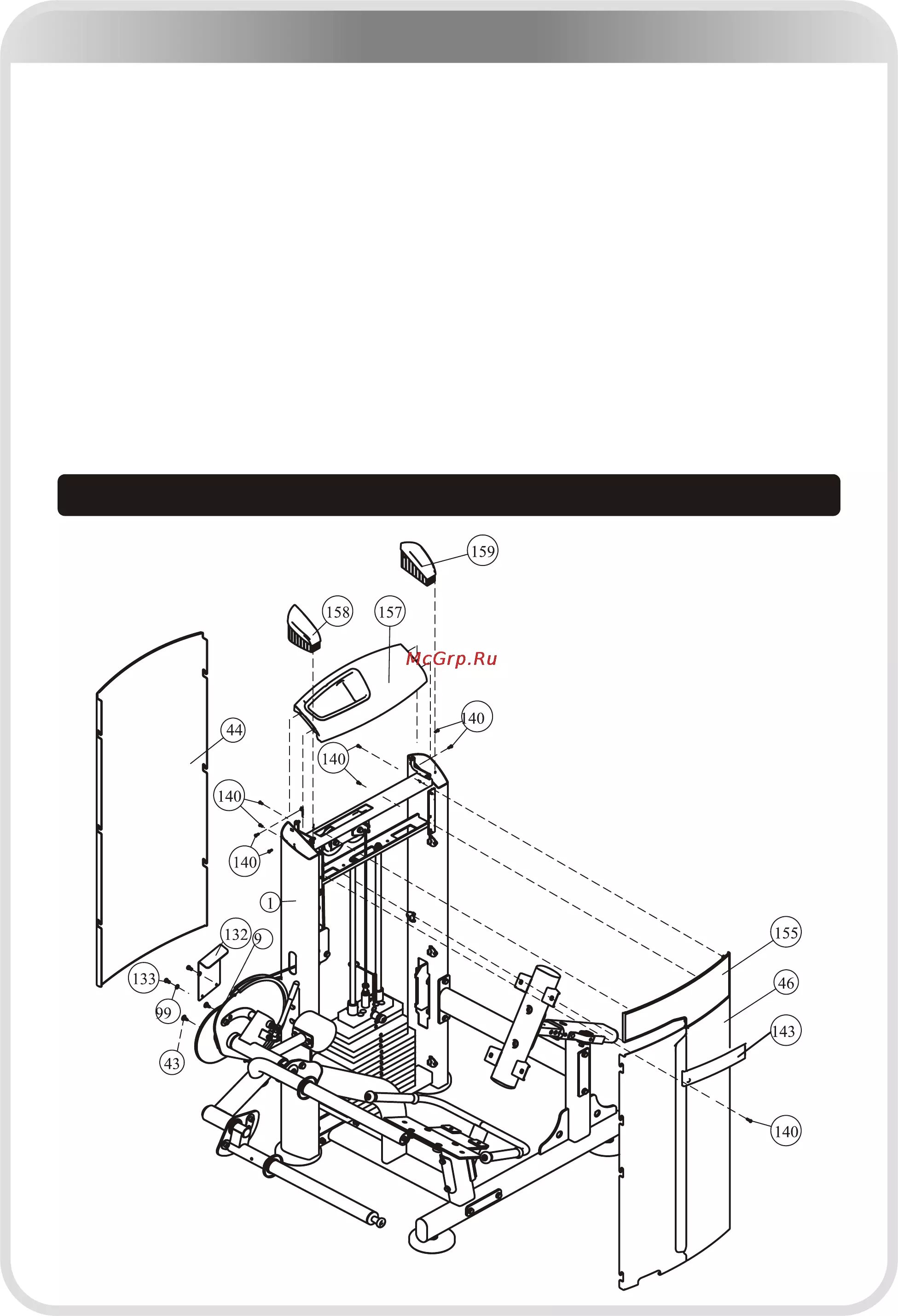

STEP 6

1. Attach one Front Shroud (#46) to the Weight Stack Frame (#1).

2. Attach one Rear Shroud (#44) to the Weight Stack Frame (#1).

3. Attach the Top Front Shroud (#155) and Plastic Cover (#143) to the Weight Stack

Frame (#1) using:

● five M5*12 Screws (#140)

4. Attach the Top Cover (#157) to the Weight Stack Frame (#1) using:

● four M5*12 Screws (#140)

5. Attach the Left Plug (#158) and Right Plug (#159) to the Weight Stack Frame (#1).

6. Attach one Baffle Plate (#132) to the Main Bracket (#9) using:

● two M8*15 HHB (#133) ● two Φ9*Φ16*1.6 Flat Washer (#99)

7. Attach two Button (#43) to the Main Bracket (#9).

Note: Wrench Tighten bolts and Nylon Lock nuts.
