Assembly

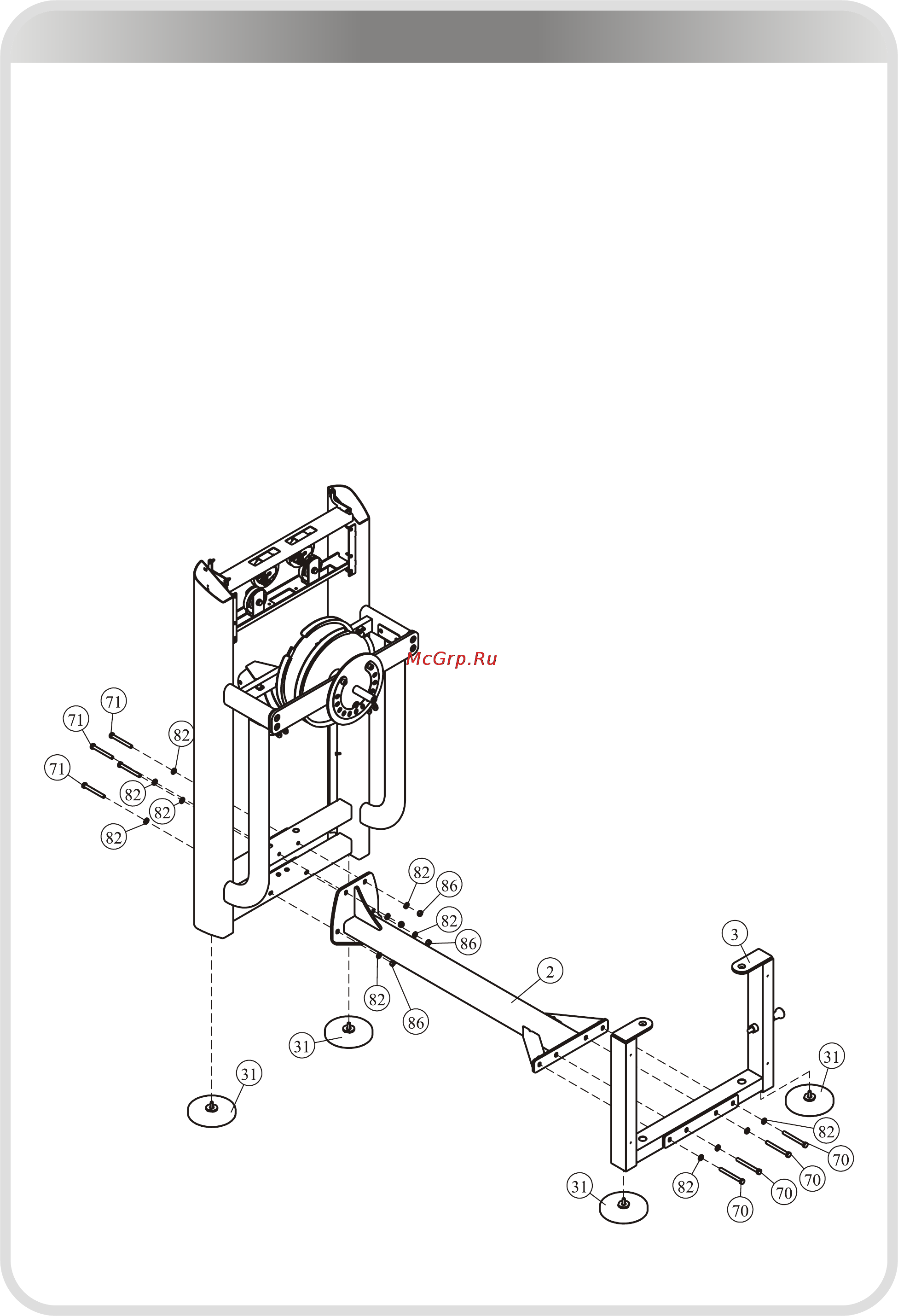

1. Attach two Adjustable Foot Plate (#31) to the Weight Stack Frame (#1).

2. Attach two Adjustable Foot Plate (#31) to the Rear Frame (#3).

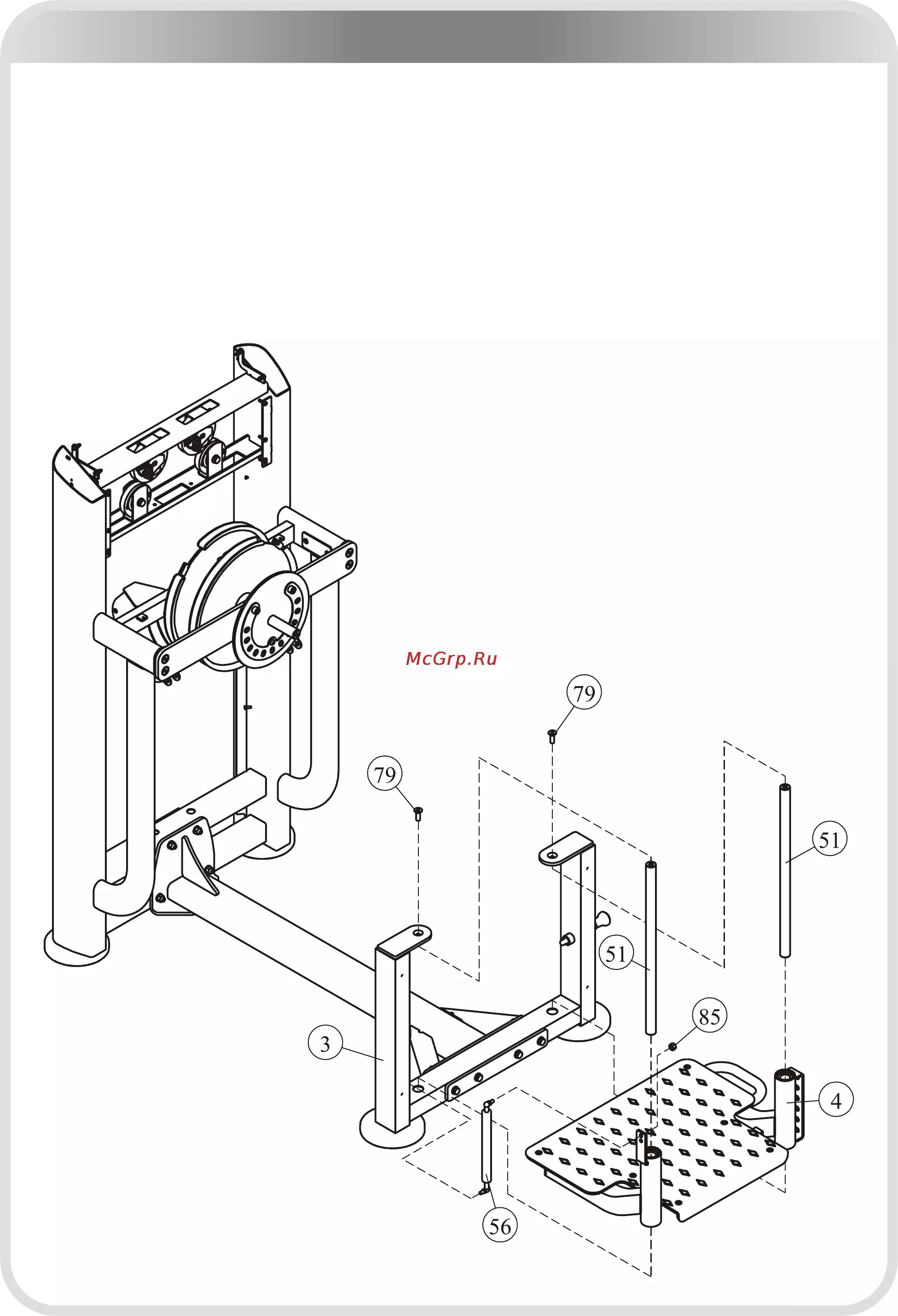

3. Attach the Bottom Cross Brace (#2) & the Rear Frame (#3) to the Weight Stack

Frame (#1) using:

four M10*90 HHB (#71)

four M10*100 HHB (#70)

twelve 11* 20*2 Flat Washers (#82)

four M10 Nylon lock Nuts (#86)

Note: Hand tighten bolts and Nylon Lock nuts.

●

● Φ Φ

●

STEP 1
