Assembly

STEP 4

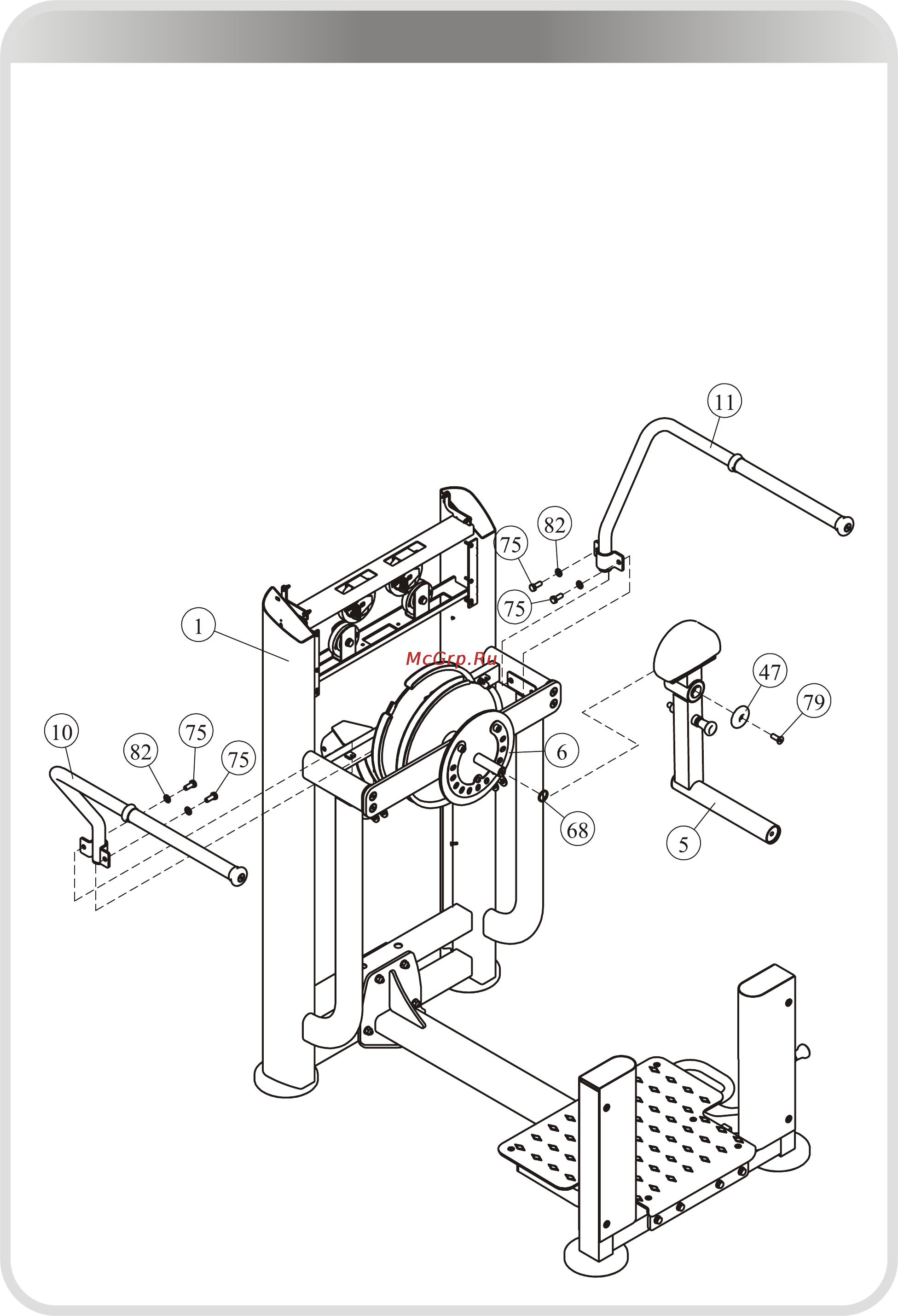

1. Attach the Left Armrest (#10) & the Right Armrest (#11) to the Weight Stack

Frame (#1) using:

four M10*25 HHB (#75)

four 11* 20*2 Flat Washers (#82)

2. Attach the Sway Frame (#5) to the Weight Stack Frame (#1) using:

one Little Adjustable Ring (#68)

one Aluminous Cap (#47)

one M10*30 Flat Head Cap Screw (#79)

Note: Hand tighten bolts and Nylon Lock nuts.

●
