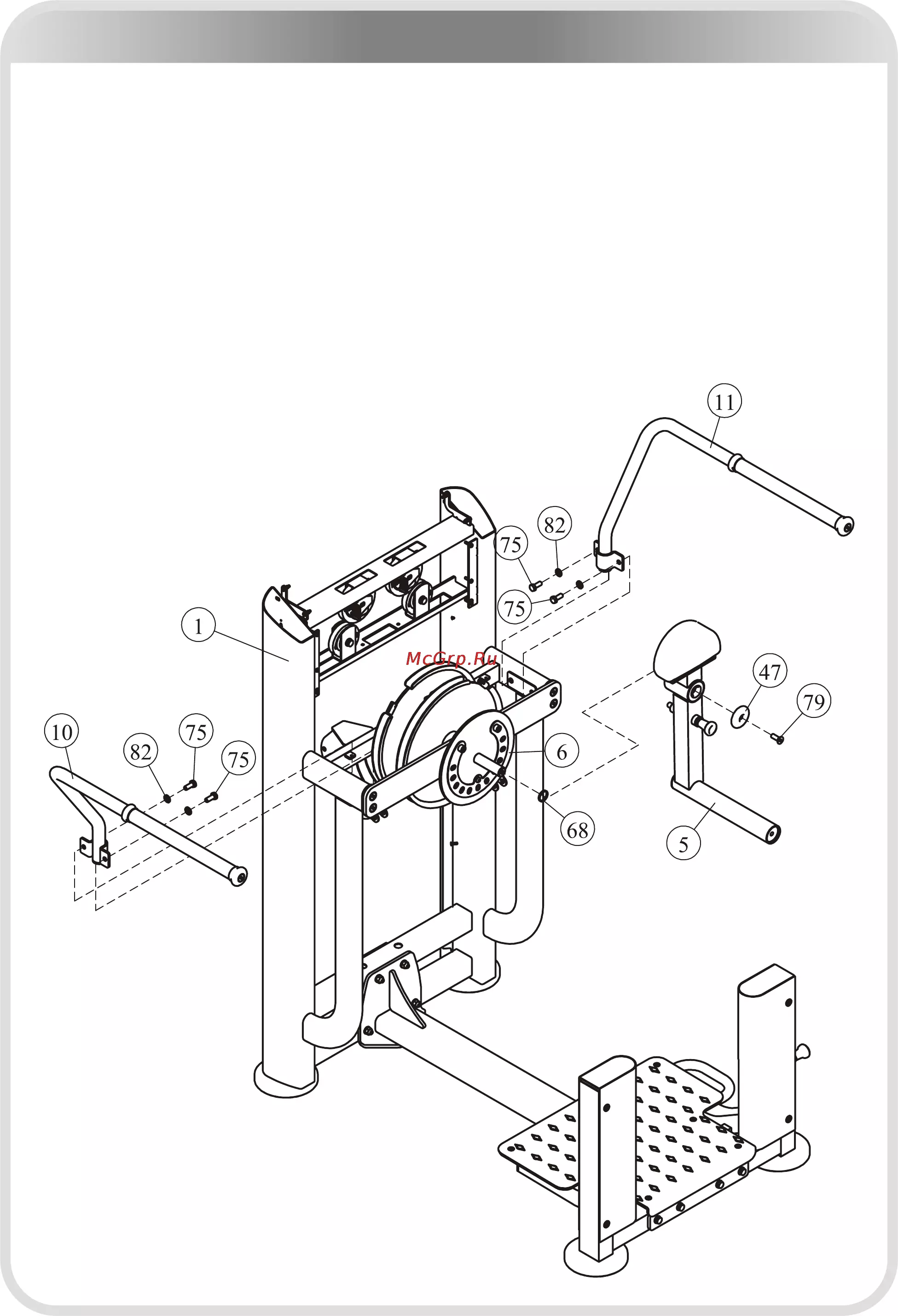

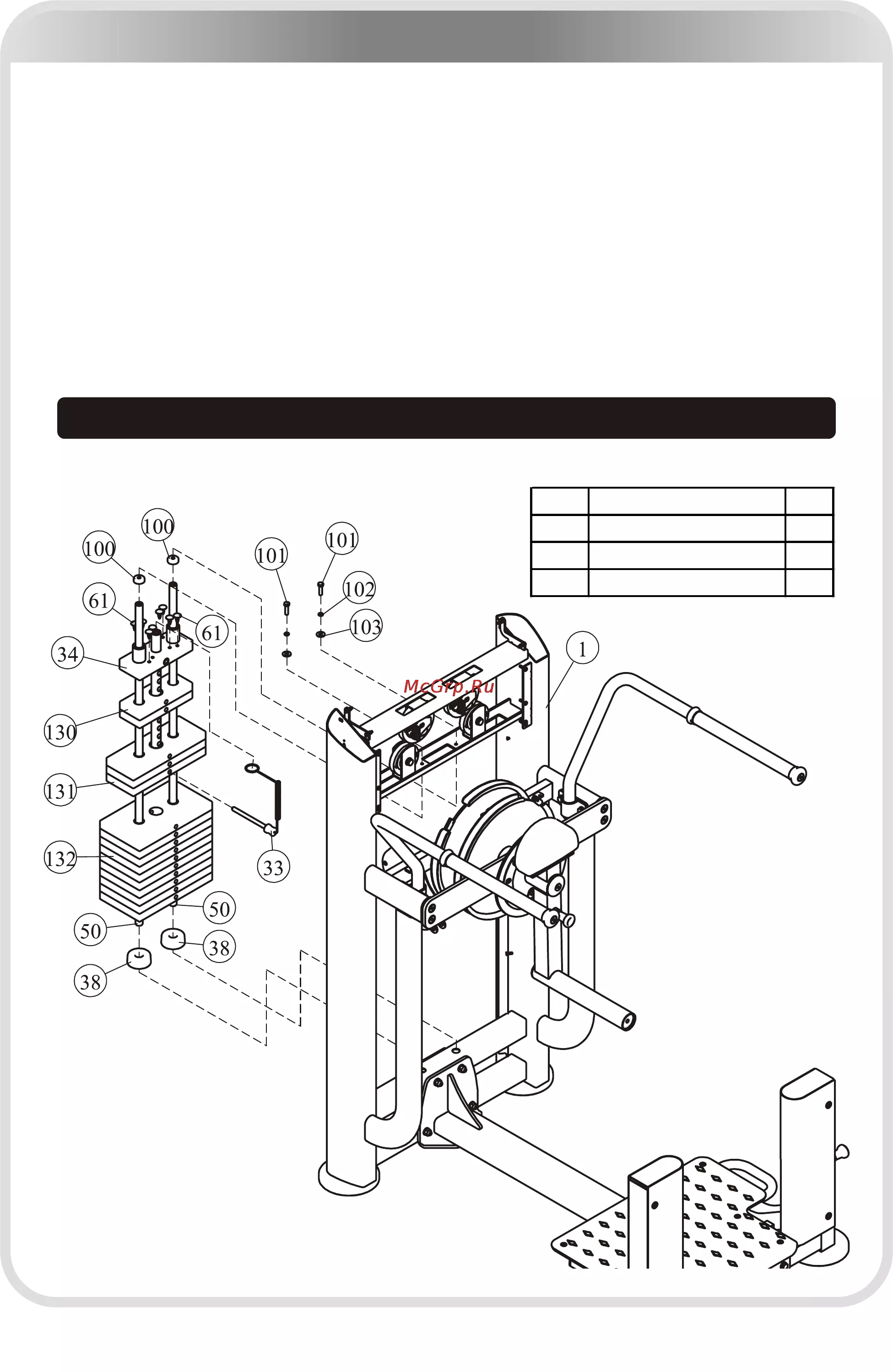

Assembly

1. Attach:

two Guide Rod (#50) two Φ63.5* 19*25.4 Weight Rubber Bumper (#38)

three Weight Plate 10LBS (#131)

ten Weight Plate 15LBS (#132)

two Weight Plate 5LBS (#130) one Top Plate (#34)

to the Weight Stack Frame (#1) using:

two M8*30 HHB (#101) two 8 Spring Washers (#102)

two 9* 22*1.6 Flat Washer (#103) two 29* 19*10 Rubber Plug (#100)

2. Attach the Selector Pin W/Coil (#33) & eight Button (#61) to the Top Plate (#34).

Note: Wrench Tighten bolts and Nylon Lock nuts.

● ● Φ

●

● ●

● ● Φ

● Φ Φ ● Φ Φ

STEP 5

Here is the assembly instruction for 200LBS Weights !

200LBS Weight

Item Description Qty

130 Weight Plate 5LBS 2

131 Weight Plate 10LBS 3

132 Weight Plate 15LBS 10
