Assembly
STEP 2

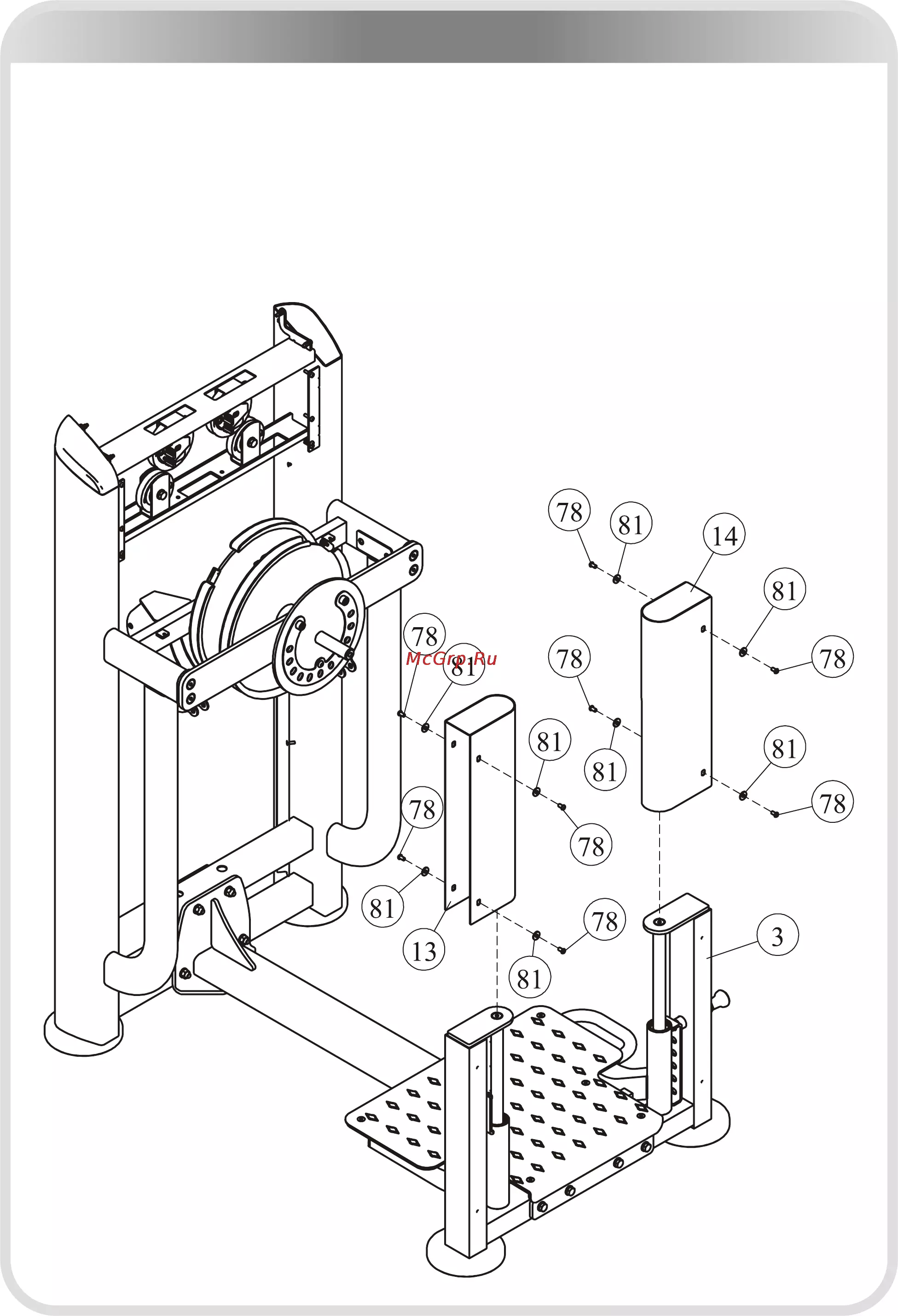

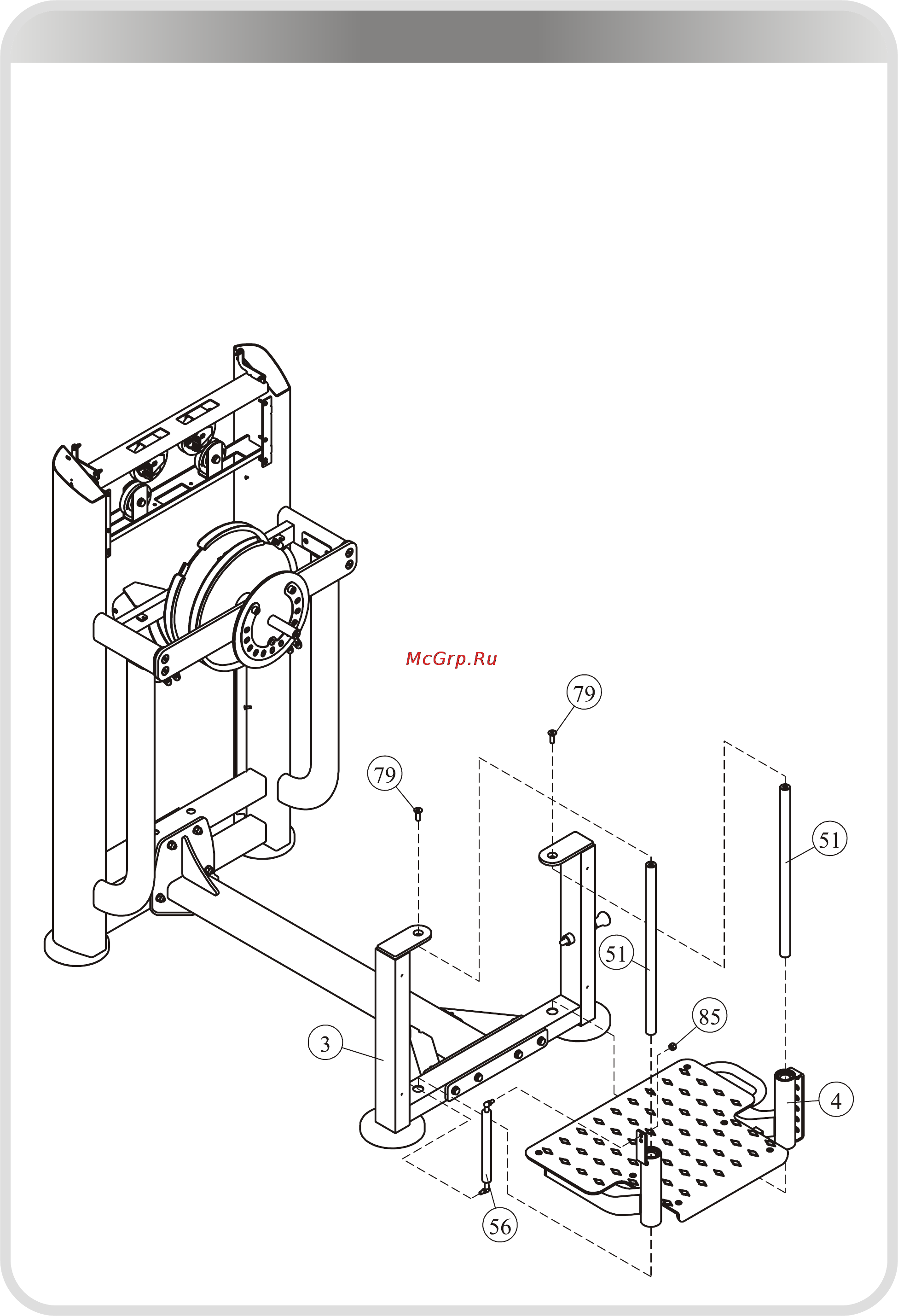

1. Attach the Footstool Brace (#4) to the Rear Frame (#3) using:
two M10*30 FHCS (#79)
two 25*510 Short Leader (#51)
2. Attach the Gas Spring (#56) to the Rear Frame (#3) & the Footstool Brace (#4)
using:
one M8 Nylon Lock Nut (#85)
Note: Wrench Tighten bolts and Nylon Lock nuts.
●
