─ 19 ─

Assembly

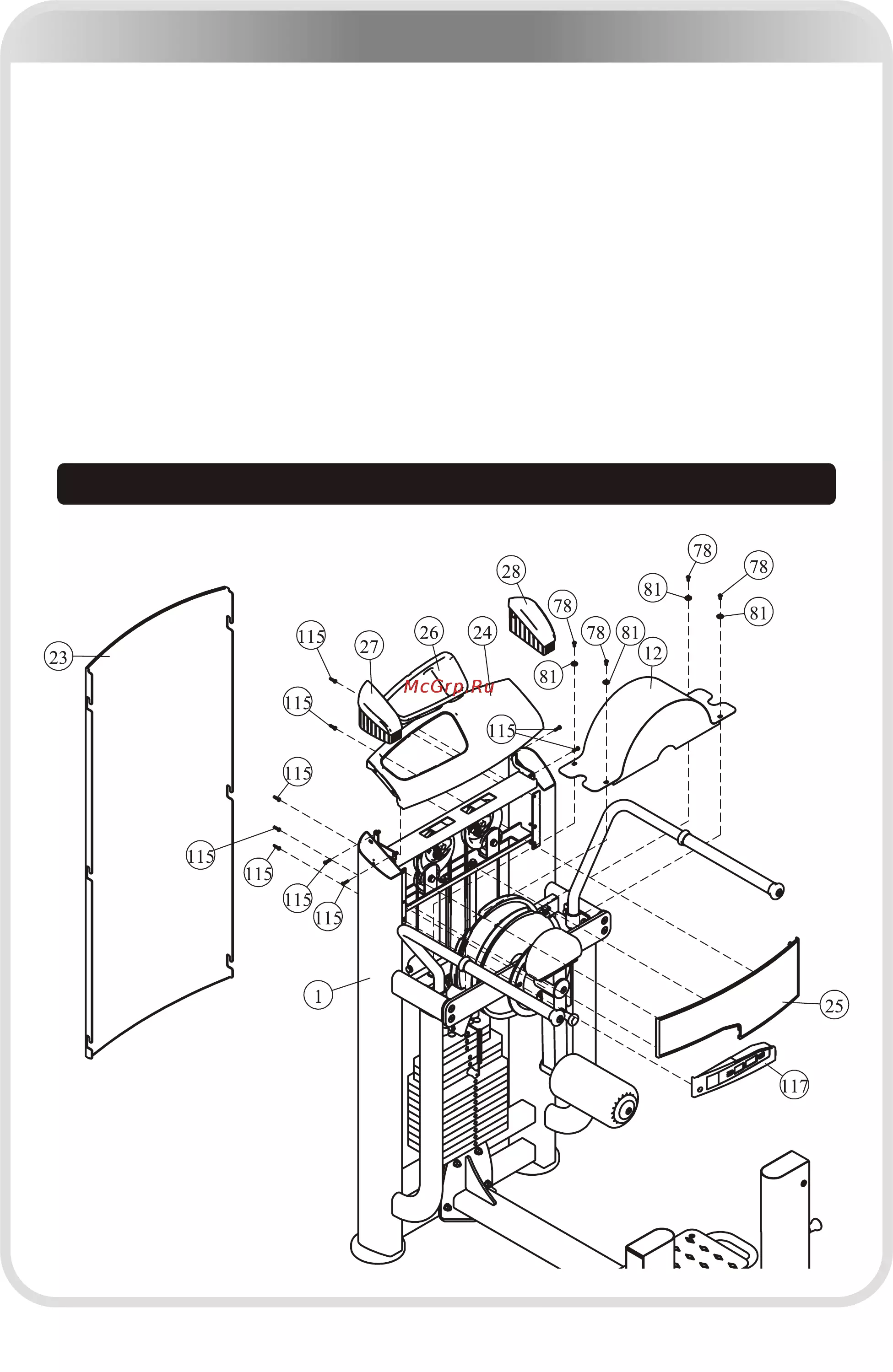

1. Attach one Rear Shroud (#23) to the Weight Stack Frame (#1).

2. Attach the Top Front Shroud (#25) and the Console PCB (#117) to the Weight

Stack Frame (#1) using:

five M5*12 Screws (#115)

3. Attach the Top Cover (#24) to the Weight Stack Frame (#1) using:

four M5*12 Screws (#115)

4. Attach the Left Plug (#27) and Right Plug (#28) to the Weight Stack Frame (#1).

5. Attach the Round Cover (#12) to the Weight Stack Frame (#1) using:

four M6*12 BHCS (#78)

four Φ6.6* 18*1.6 Flat Washers (#81)

Note: Wrench Tighten bolts and Nylon Lock nuts.

●

● Φ

STEP 8

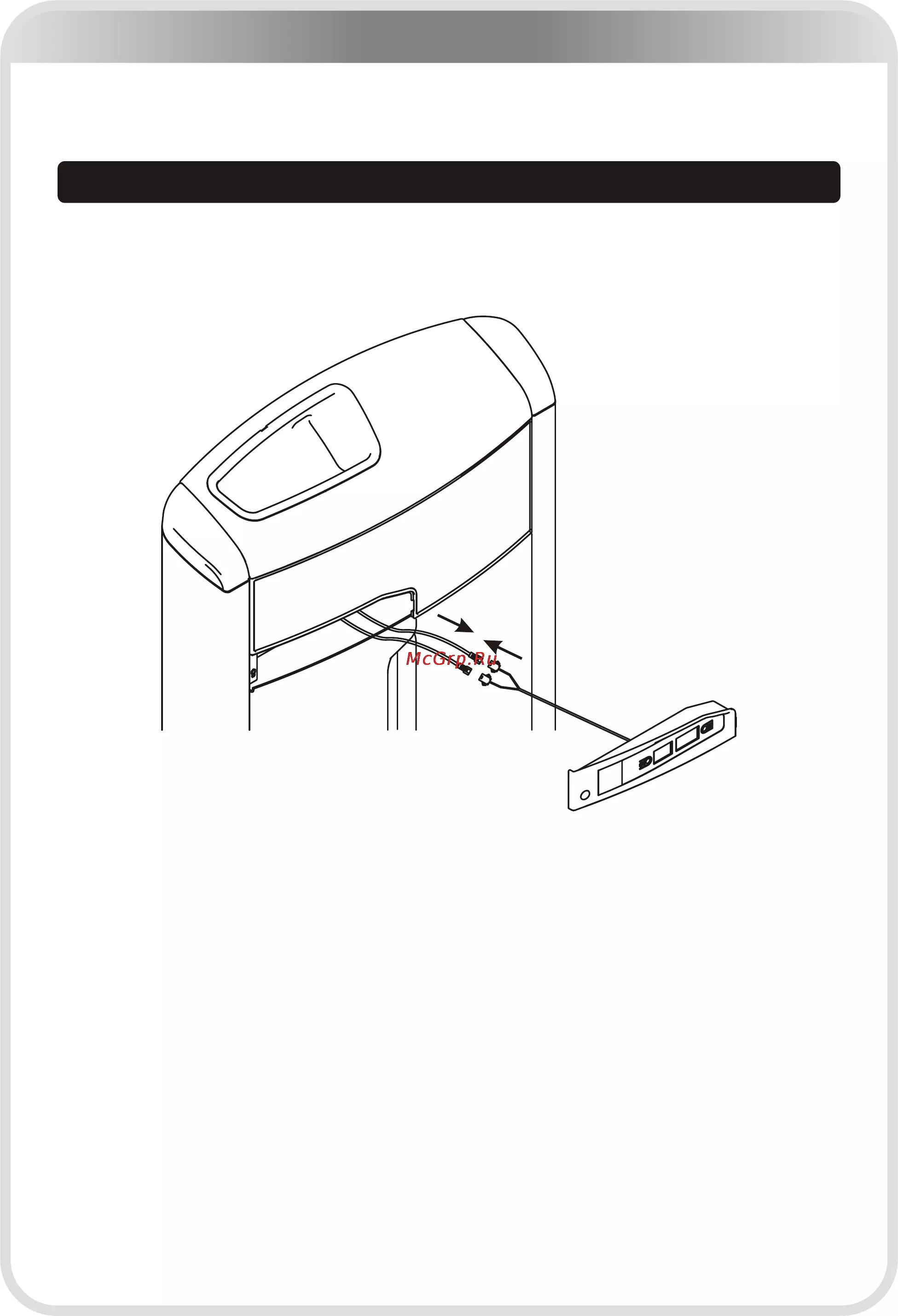

Here is the assembly instruction for Console PCB !
