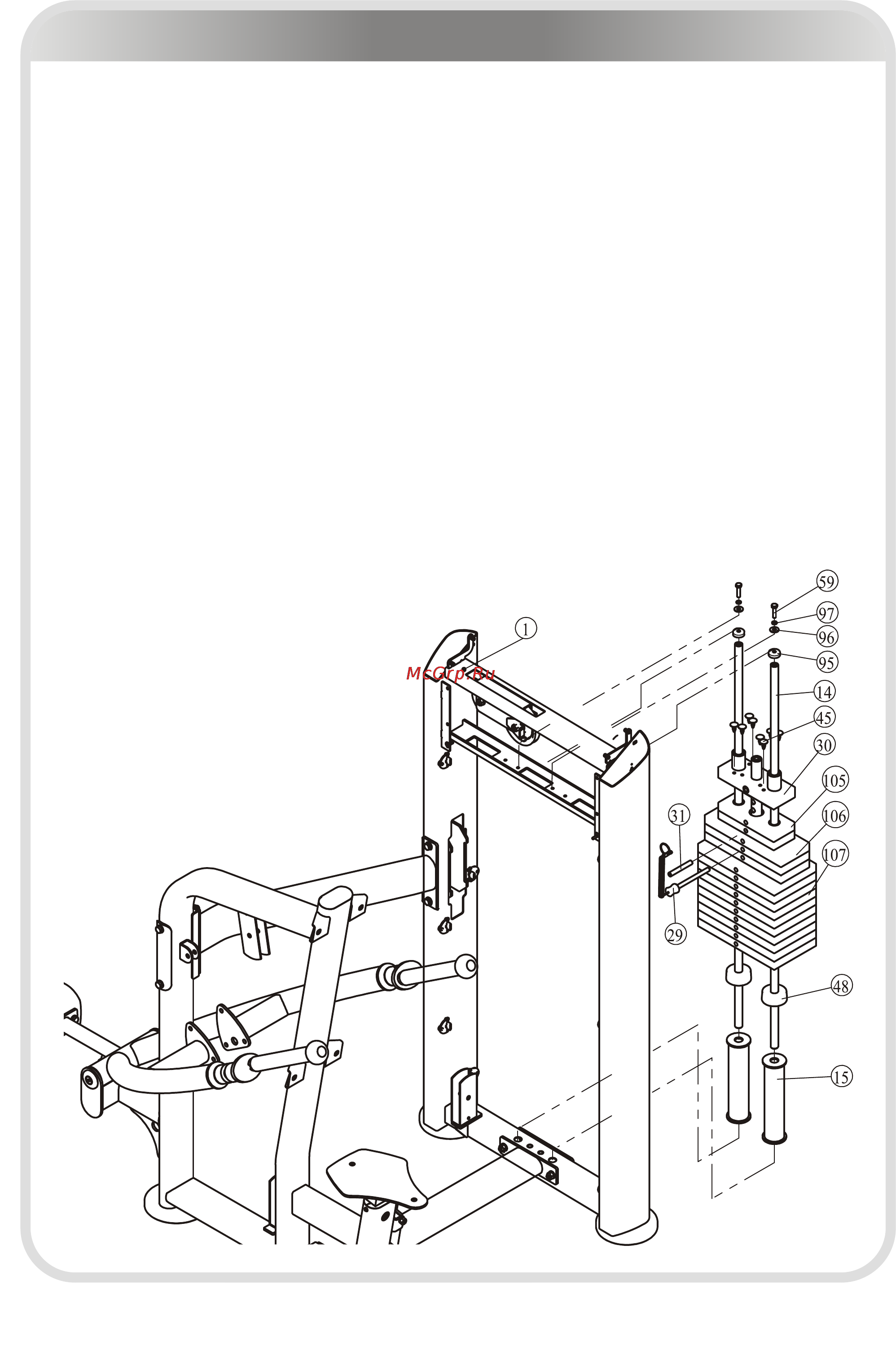

Assembly

STEP 3

1. Attach:

● two Φ19*1177 Guide Rods (#14)

● two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#48)

● two Weight Stack Space 237 (#15)

● ten Weight Plate 15LBS (#107)

● three Weight Plate 10LBS (#106)

● two Weight Plate 5LBS (#105)

● one Top Plate (#30)

to the Weight Stack Frame (#1) using:

● two M8*30 HHB (#59)

● two Φ8 Spring Washers (#97)

● two Φ9*Φ22*1.6 Flat Washers (#96)

● two Φ29*Φ19*10 Rubber Plugs (#95)

2. Attach the Selector Pin W/Coil (#29) to the Top Plate (#30).

3. Attach eight Φ8*Φ20*23 Buttons (#45) to the Top Plate (#30).

4.Attach one Φ11*76 Split Pin (#31) to the second Weight Plate 10LBS(#106).

Note: Wrench Tighten bolts and Nylon Lock nuts.
