─ 18 ─

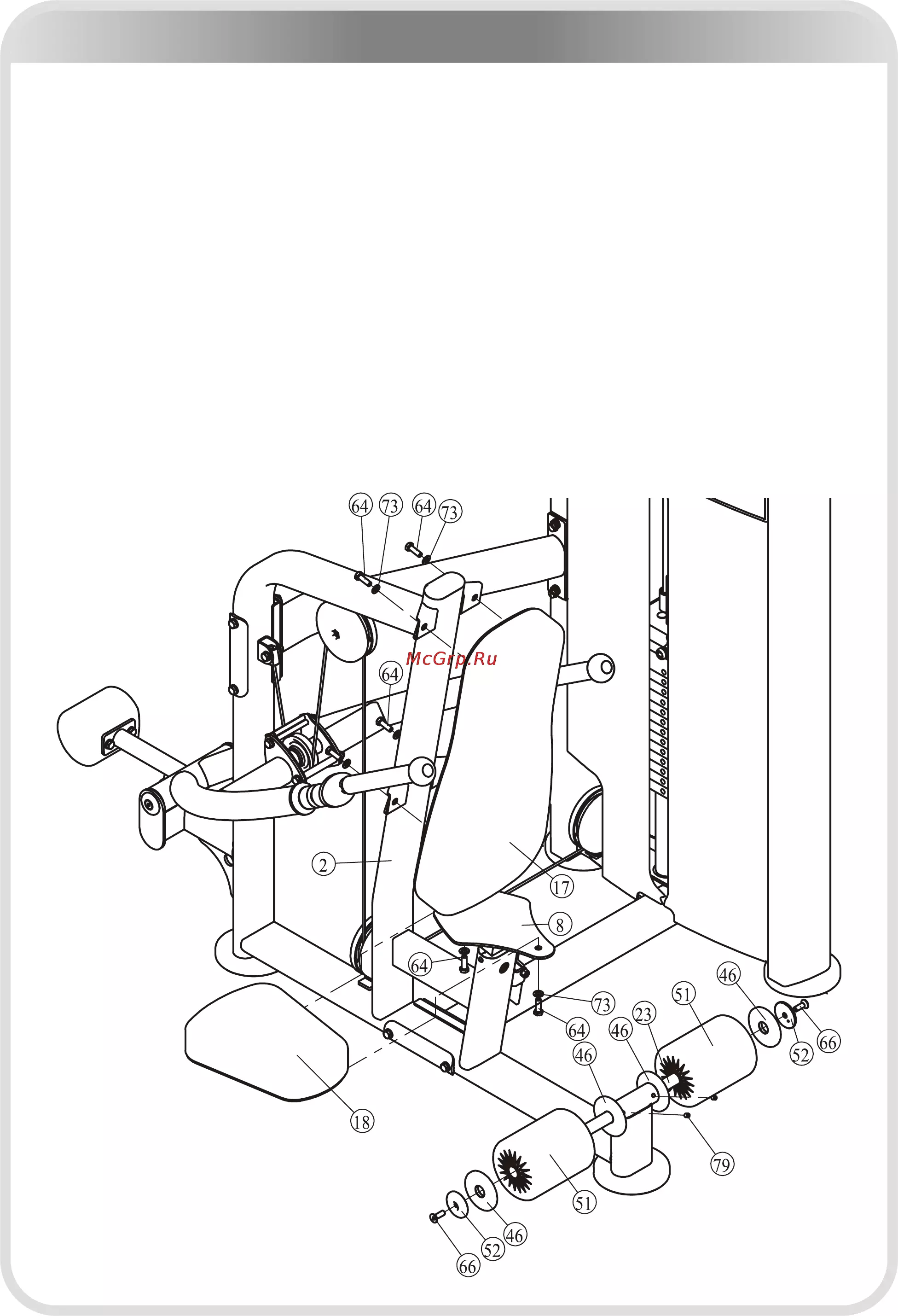

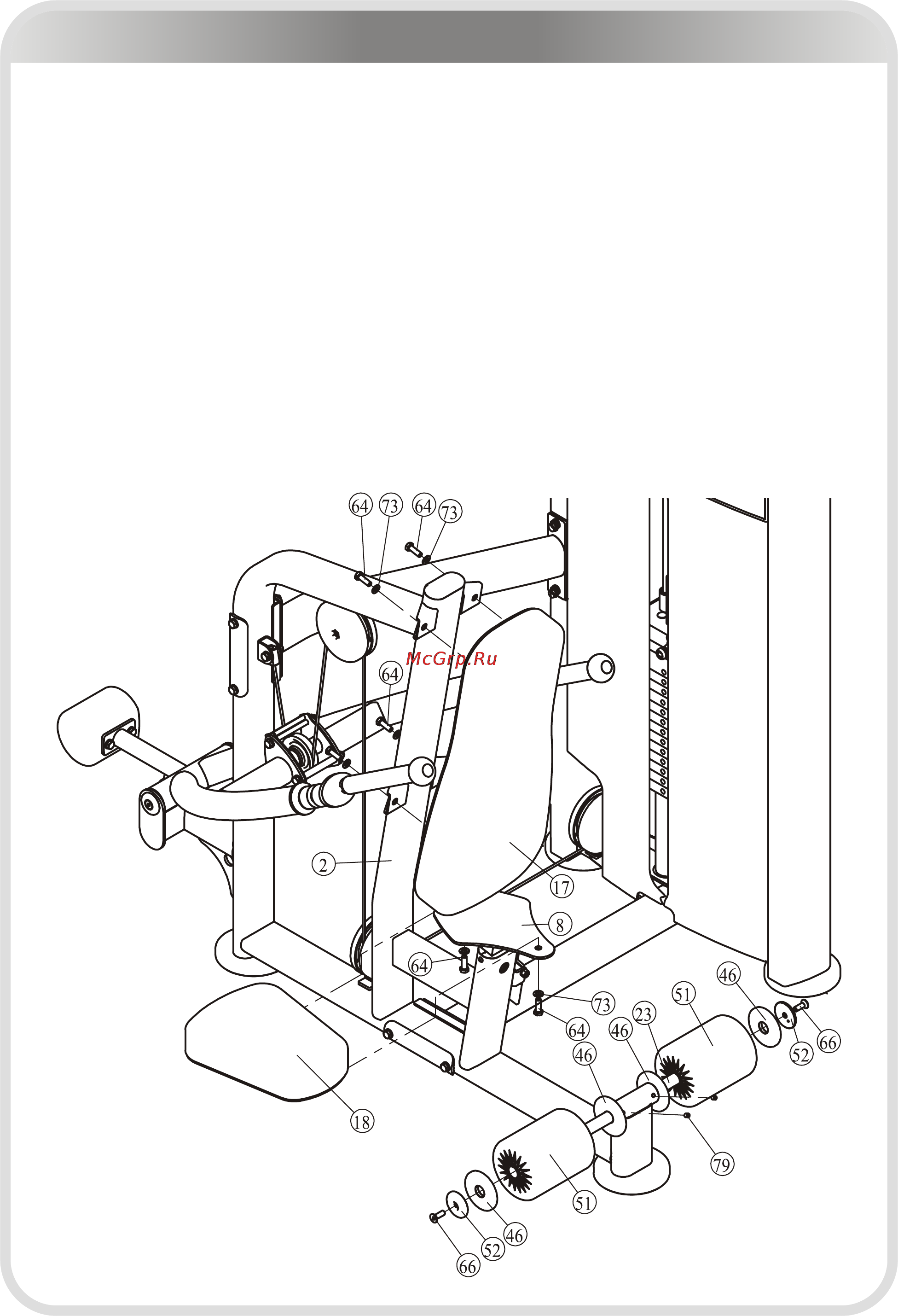

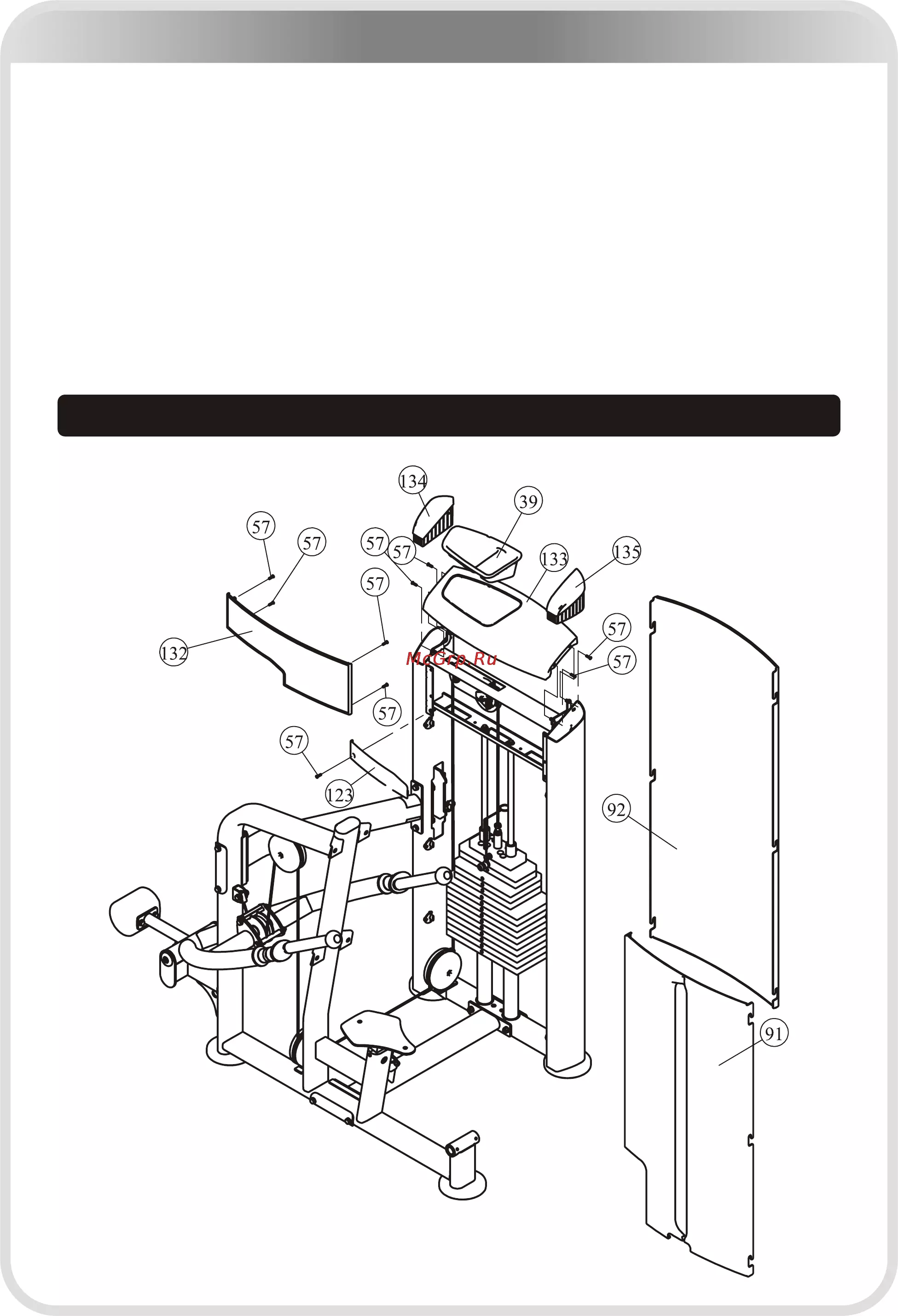

Assembly

1. Attach the Seat Pad (#18) to the Seat Pad Support (#8), using:

● two M10*30 HHB (#64)

● two Φ11*Φ20*2 Flat Washers (#73)

2. Attach the Back Pad (#17) to the Main Frame (#2), using:

● four M10*30 HHB (#64)

● four Φ11*Φ20*2 Flat Washers (#73)

3. Attach two FOAM Pad (#51) to the Main Frame (#2), using:

● one Φ25*2.5*516 FOAM Tube (#23)

● four Aluminium Shield (#46)

● two Φ60*Φ10.5*10.9 Aluminium Cap (#52)

● two M10*30 FHCS (#66)

● two M8*8 Socket Set Screw (#79)

Note: Wrench Tighten bolts and Nylon Lock nuts.

STEP 6
