─ 15 ─

Assembly

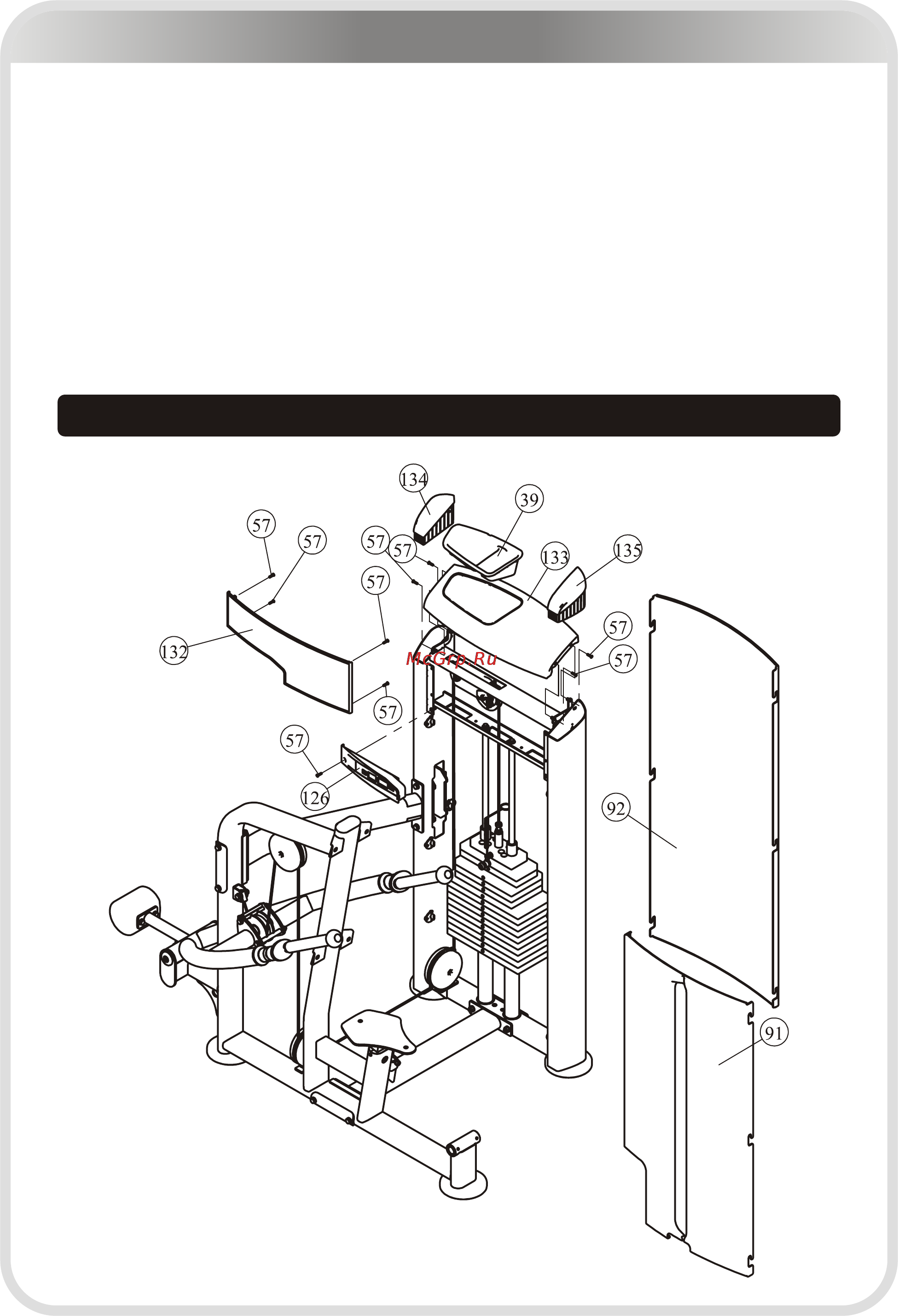

STEP 5

1. Attach one Front Shroud (#91) to the Weight Stack Frame (#1).

2. Attach one Rear Shroud (#92) to the Weight Stack Frame (#1).

3. Attach the Top Front Shroud (#132) and the Console PCB (#126) to the Weight

Stack Frame (#1) using:

● five M5*12 Screws (#57)

4. Attach the Top Cover (#133) to the Weight Stack Frame (#1) using:

● four M5*12 Screws (#57)

5. Attach the Left Plug (#134) and Right Plug (#135) to the Weight Stack Frame (#1).

Note: Wrench Tighten bolts and Nylon Lock nuts.

Here is the assembly instruction for Console PCB !
