Assembly

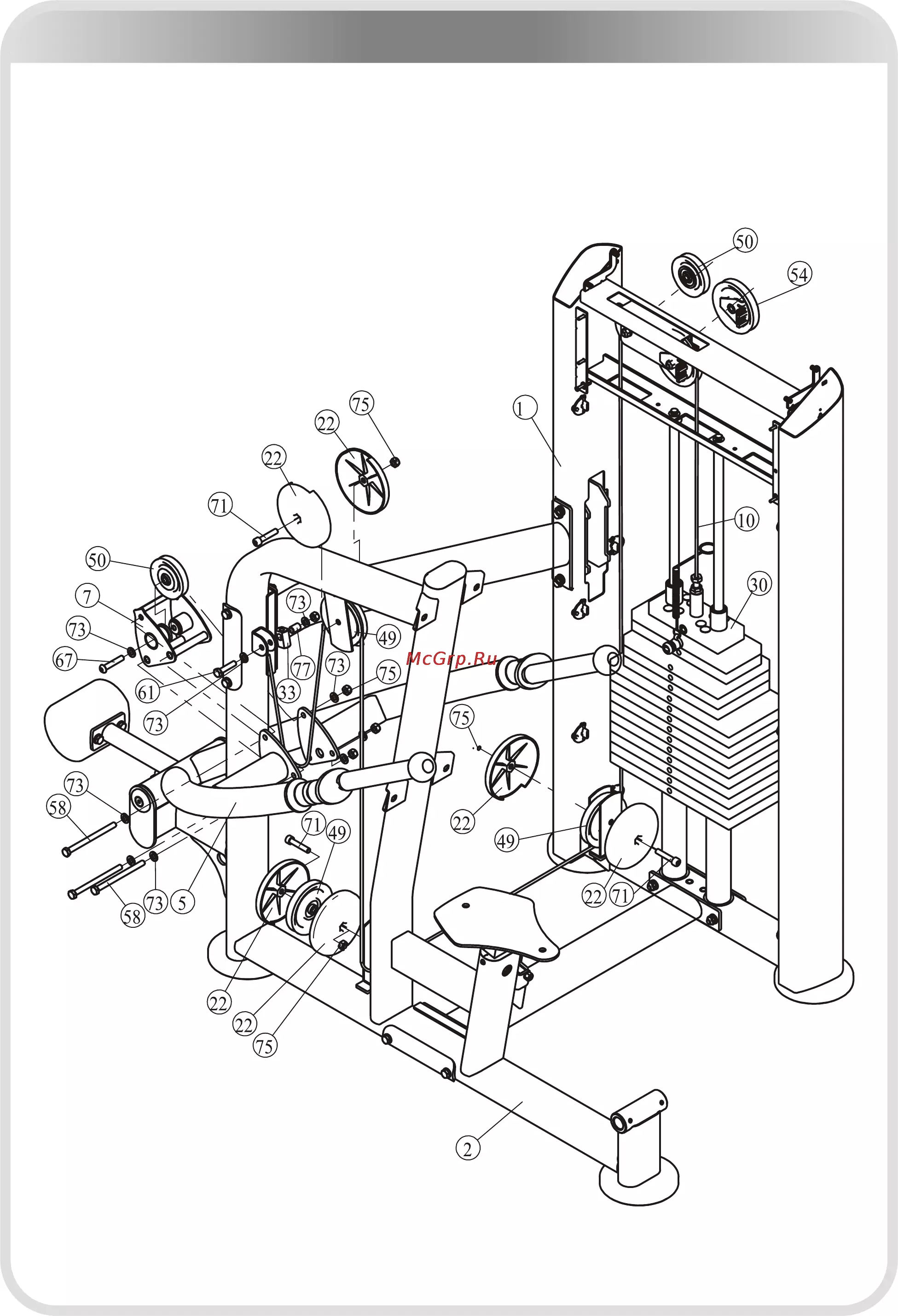

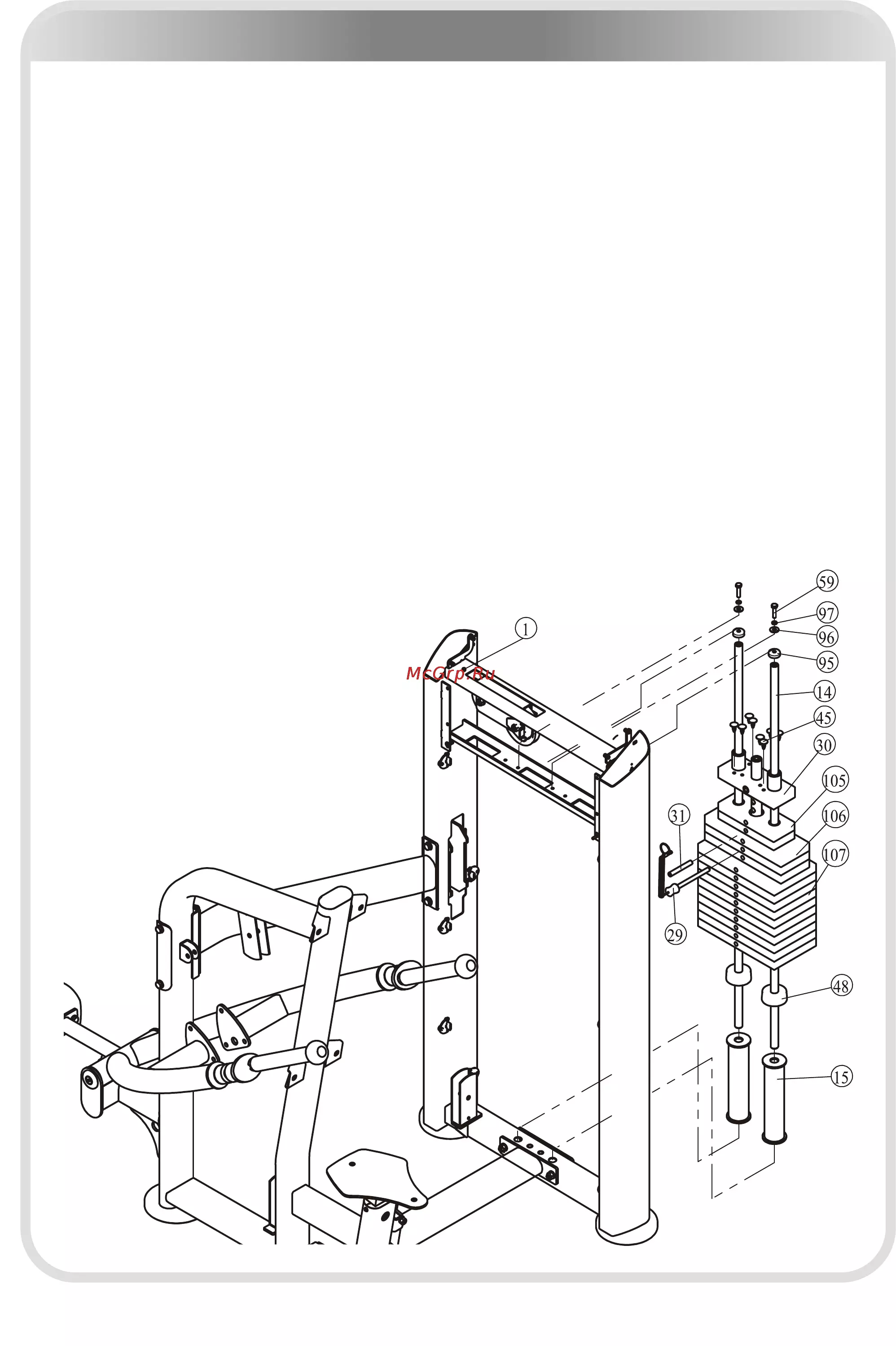

1. Attach the Cable (#10) to the Top Plate (#30), and go through one 3.5" Pulley, one

4.5" Pulleys.

2. Attach three 4.5" Pulleys (#49), one 3.5" Pulley(#50), the Cable (#10) to the Weight

Stack Frame (#1), the Main Frame (#2), the Pulley Bracket (#7), using:

● three M10*50 SHCS (#71)

● one M10*55 BHCS (#67)

● six Pulley Covers (#22)

● one Φ11*Φ20*2 Flat Washers (#73)

● three M10 Nylon lock Nuts (#75)

3. Attach the Pulley Bracket (#7) to the Rotary Arm Frame (#5), using:

● three M10*135 HHB (#58)

● six Φ11*Φ20*2 Flat Washers (#73)

● three M10 Nylon lock Nuts (#75)

4. Attach the Cable (#10) to the Main Frame (#2) using:

● one M10*45 HHB (#61)

● two Φ11*Φ20*2 Flat Washers (#73)

● one Cable End (#33)

● one Φ10*Φ14*20 Spacer (#77)

● one M10 Nylon lock Nuts (#75)

Note: Wrench Tighten bolts and Nylon Lock nuts.

STEP 4
