─ 10 ─

Assembly

STEP 2

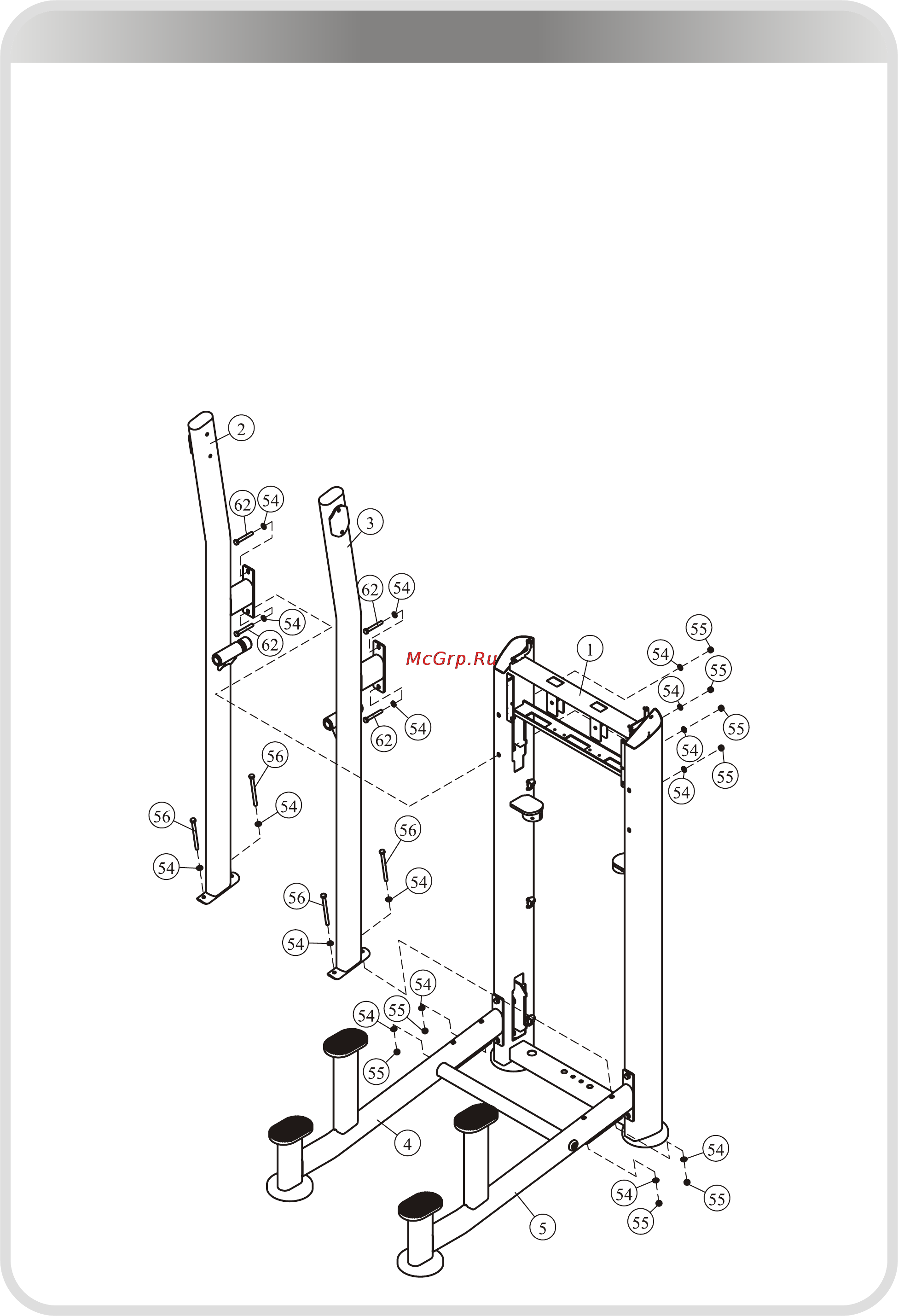

1. Attach the Left Support (#2) to the Left Cross Brace (#4) and the Weight Stack

Frame (#1) using:

● two M10*75 HHB (#62) ● two M10*130 HHB (#56)

● eight Φ11*Φ20*2 Flat Washer (#54) ● four M10 Nylon lock Nut (#55)

2. Attach the Right Support (#3) to the Right Cross Brace (#5) and the Weight Stack

Frame (#1) using:

● two M10*75 HHB (#62) ● two M10*130 HHB (#56)

● eight Φ11*Φ20*2 Flat Washer (#54) ● four M10 Nylon lock Nut (#55)

Note: Hand tighten bolts and Nylon Lock nuts.
