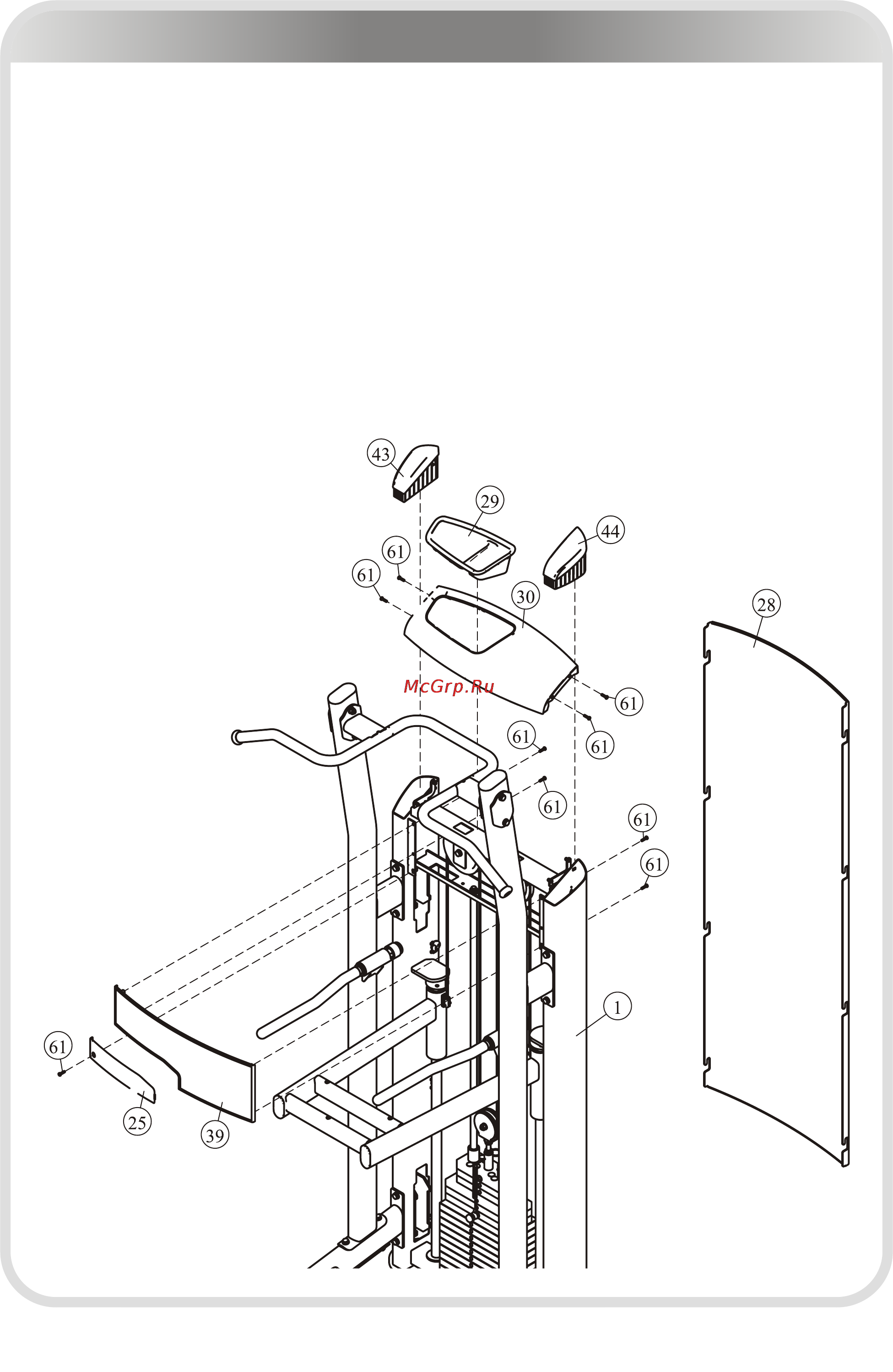

Assembly

1. Attach the Top Front Shroud (#39) to the Weight Stack Frame (#1) using:

● four M5*12 BHCS (#61)

2. Attach the Plastic Cover (#25) to the Top Front Shroud (#39) and the Weight Stack

Frame (#1) suing:

● one M5*12 BHCS (#61)

3. Attach the Rear Shroud (#28) to the Weight Stack Frame (#1).

4. Attach the Top Cover (#30) and the Support (#29) to the Weight Stack Frame (#1)

using:

● four M5*12 BHCS (#61)

5. Attach the Left Plug (#43) and the Right Plug (#44) to the Weight Stack Frame (#1).

STEP 7
