─ 13 ─

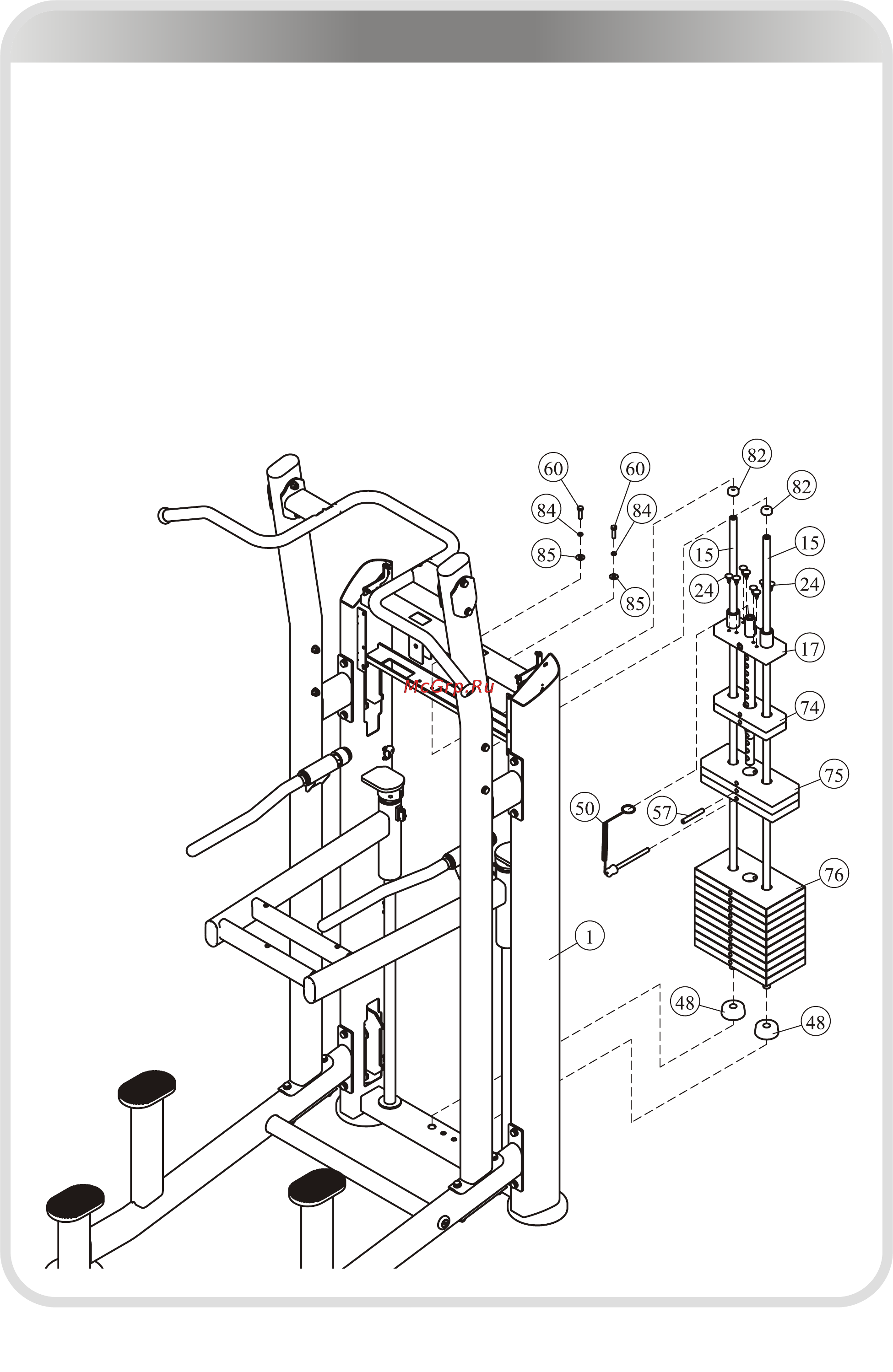

Assembly

STEP 5

1. Attach:

● two Φ19*1477 Guide Rod (#15) ● two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#48)

● ten Weight Plate 15LBS (#76) ● three Weight Plate 10LBS (#75)

● two Weight Plate 5LBS (#74) ● one Top Plate (#17)

to the Weight Stack Frame (#1) using:

● two M8*30 HHB (#60) ● two Φ8 Spring Washers (#84)

● two Φ9*Φ22*1.6 Flat Washer (#85) ● two Φ29*Φ19*10 Rubber Plug (#82)

2. Attach the Split Pin (#57) to the fourth Weight Plate (#75) from above.

3. Attach the Selector Pin W/Coil (#50) & eight Button (#24) to the Top Plate (#17).

Note: Wrench Tighten bolts and Nylon Lock nuts.
