Assembly

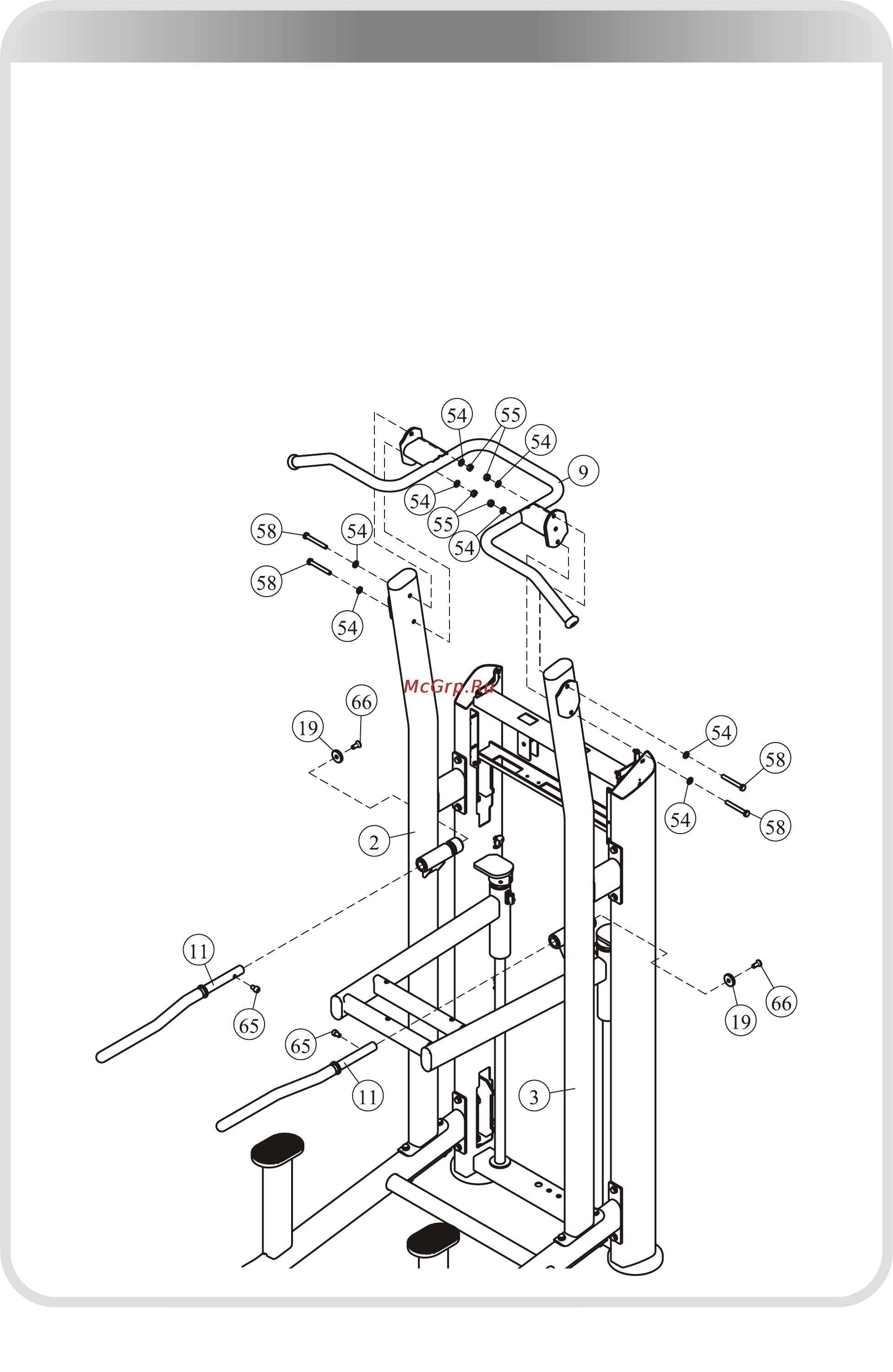

1. Attach the Handle (#9) to the Left Support (#2) and the Right Support (#3) using:

● four M10*80 HHB (#58)

● eight Φ11*Φ20*2 Flat Washer (#54)

● four M10 Nylon lock Nut (#55)

2. Attach two handle (#11) to the Left Support (#2) and the Right Support (#3) using:

● two Φ38*Φ10.5*8 End Cap (#19)

● two M10*25 FHCS (#66)

● two M10*15 SHCS (#65)

Note: Wrench Tighten bolts and Nylon Lock nuts.

STEP 4
