─ 9 ─

Assembly

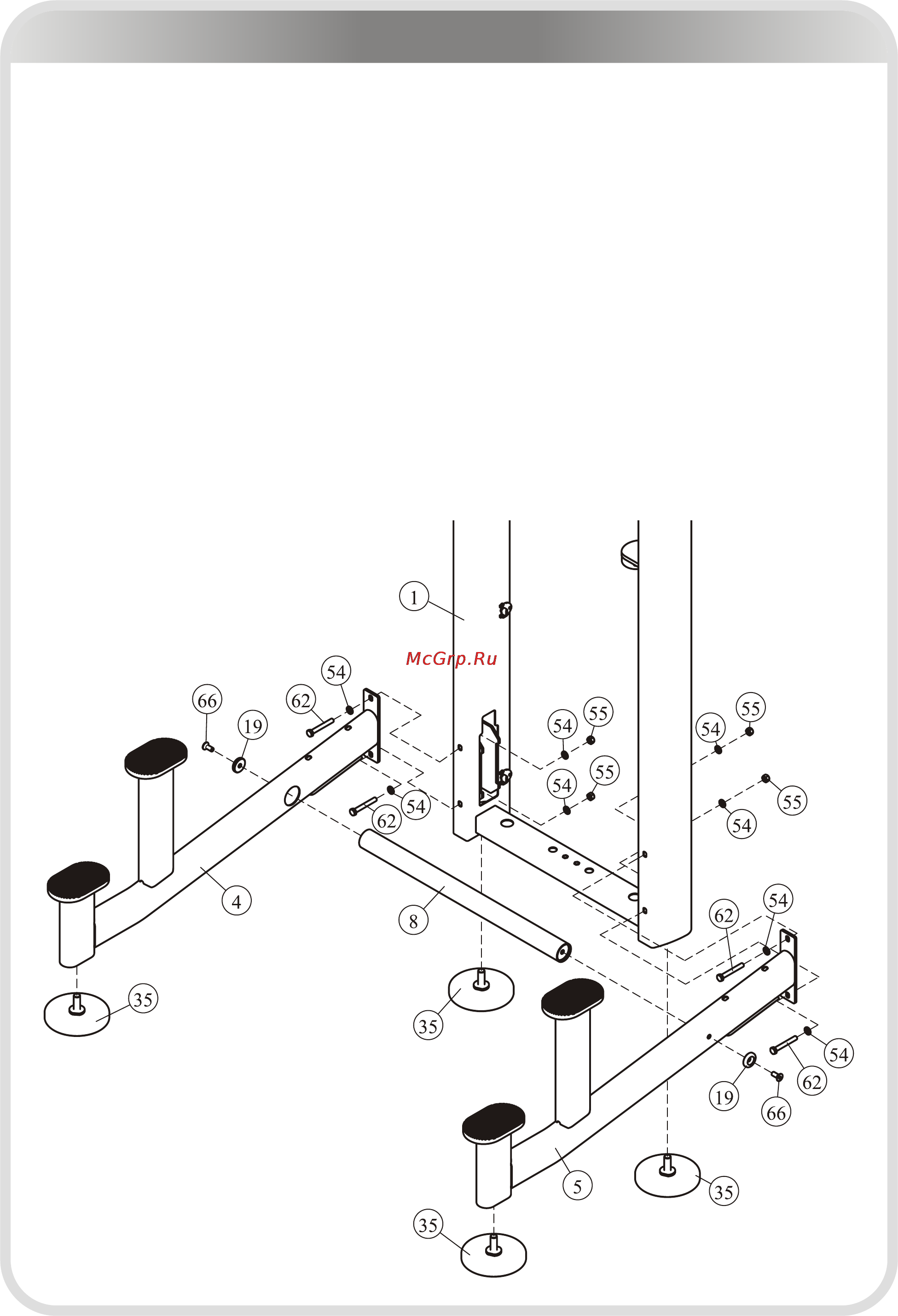

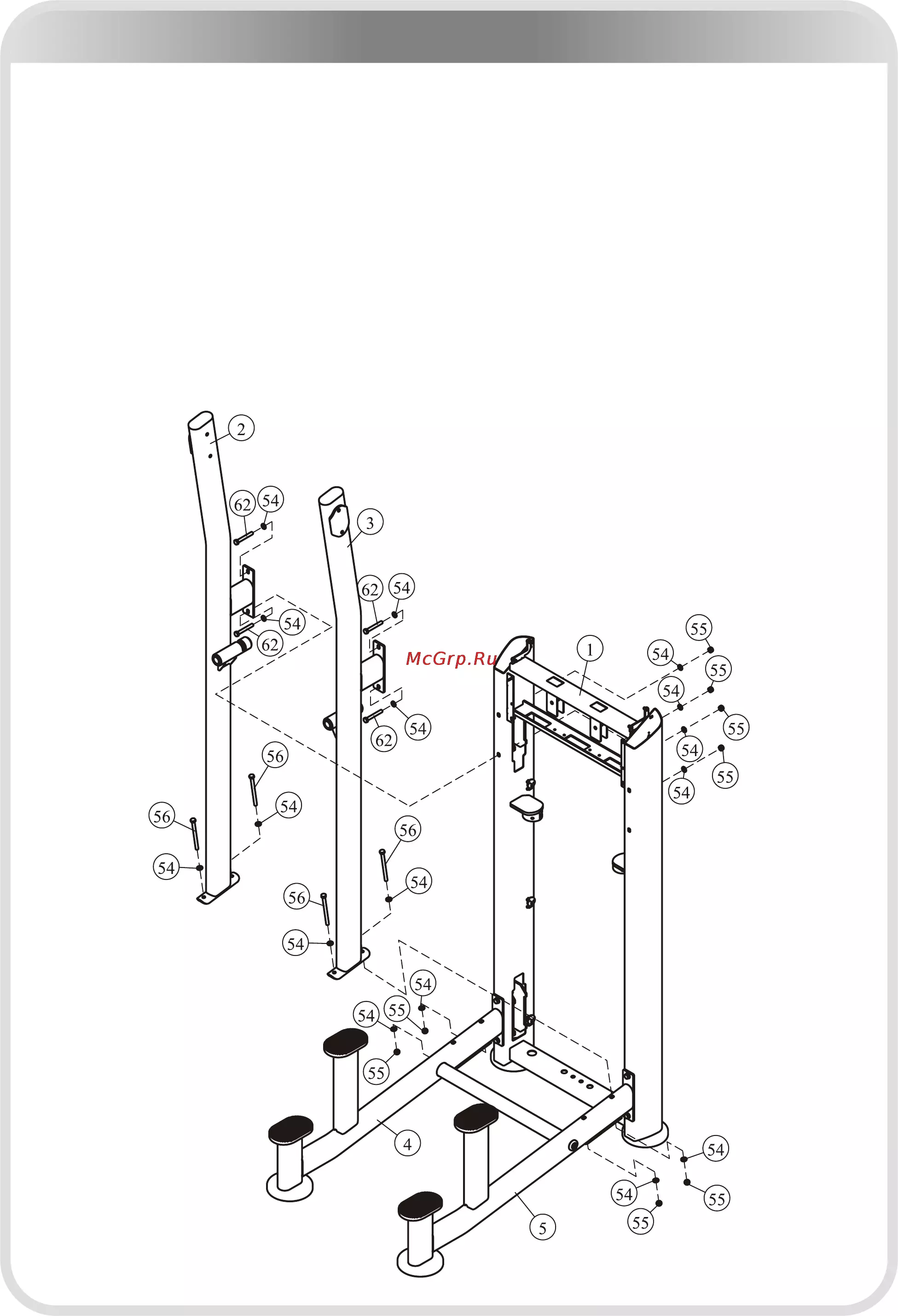

1. Attach two Adjustable Foot Plate (#35) to the Weight Stack Frame (#1).

2. Attach two Adjustable Foot plate (#35) to the Left Cross Brace (#4) and the Right

Cross Brace (#5).

3. Attach the Nether Cross Brace (#8) to the Left Cross Brace (#4) and the Right

Cross Brace (#5) using:

● two Φ38*Φ10.5*8 End Cap (#19)

● two M10*25 FHCS (#66)

4. Attach the Left Cross Brace (#4) and the Right Cross Brace (#5) to the Weight

Stack Frame (#1) using:

● four M10*75 HHB (#62)

● eight Φ11*Φ20*2 Flat Washer (#54)

● four M10 Nylon lock Nut (#55)

Note: Hand tighten bolts and Nylon Lock nuts.

STEP 1
