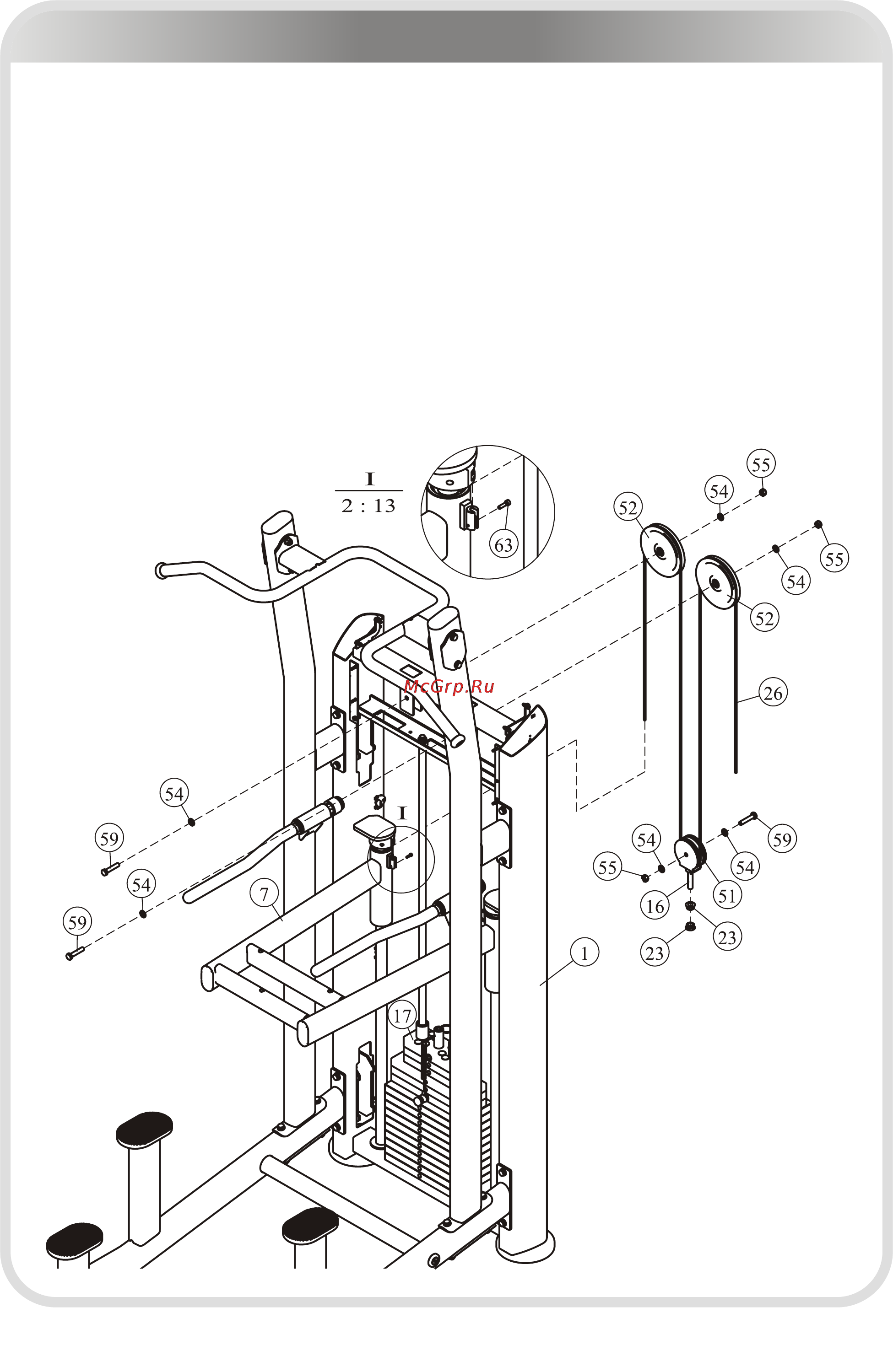

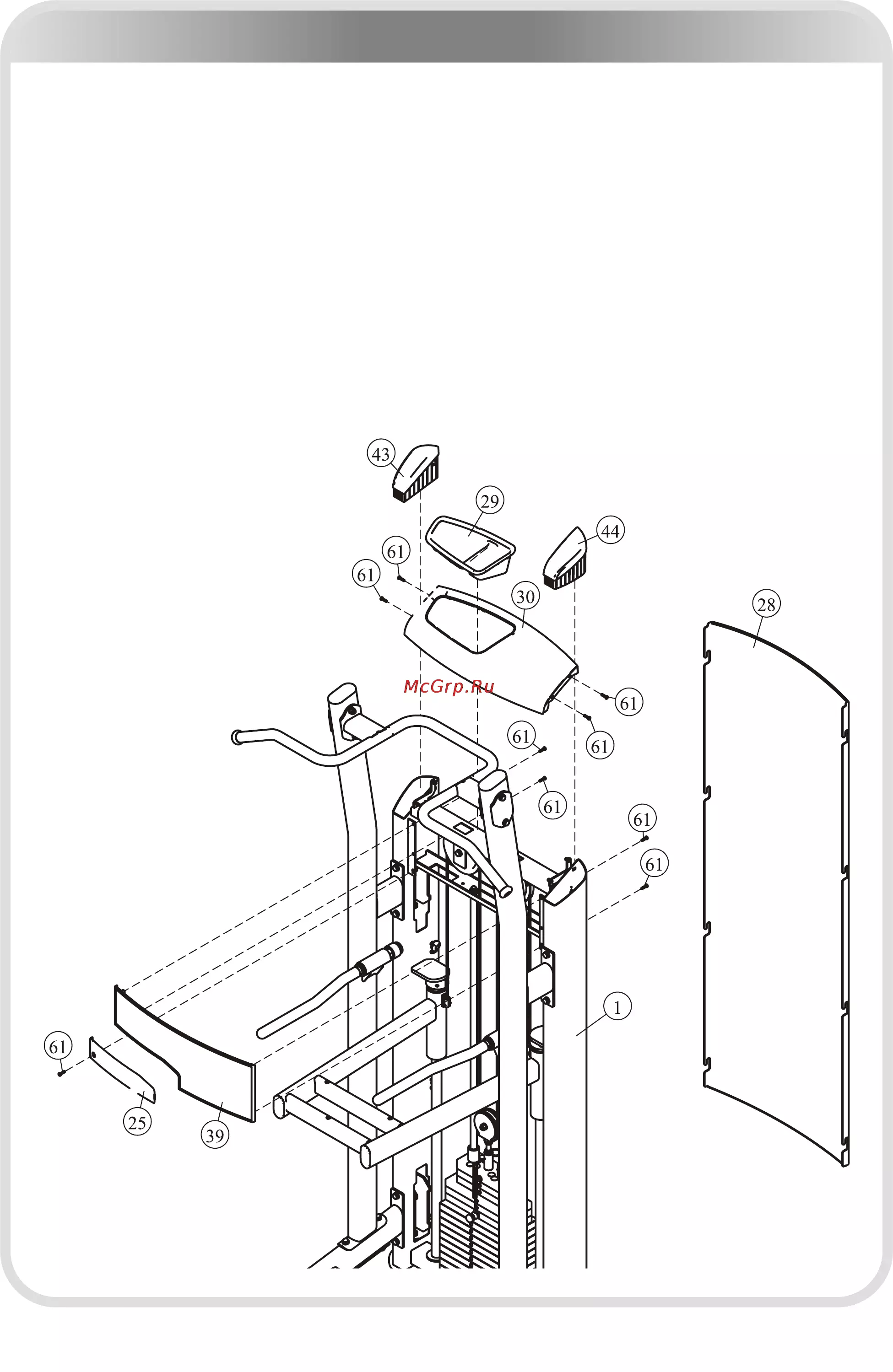

Assembly

STEP 6

1. Attach the Pulley Bracket (#16) to the Top Plate (#17) using:

● two 1/2"-13 Hex Flanged Nut (#23)

2. Attach one 3.5" Pulley (#51) to the Pulley Bracket (#16) using:

● one M10*50 HHB (#59)

● two Φ11*Φ20*2 Flat Washer (#54)

one M10 Nylon lock Nut (#55)

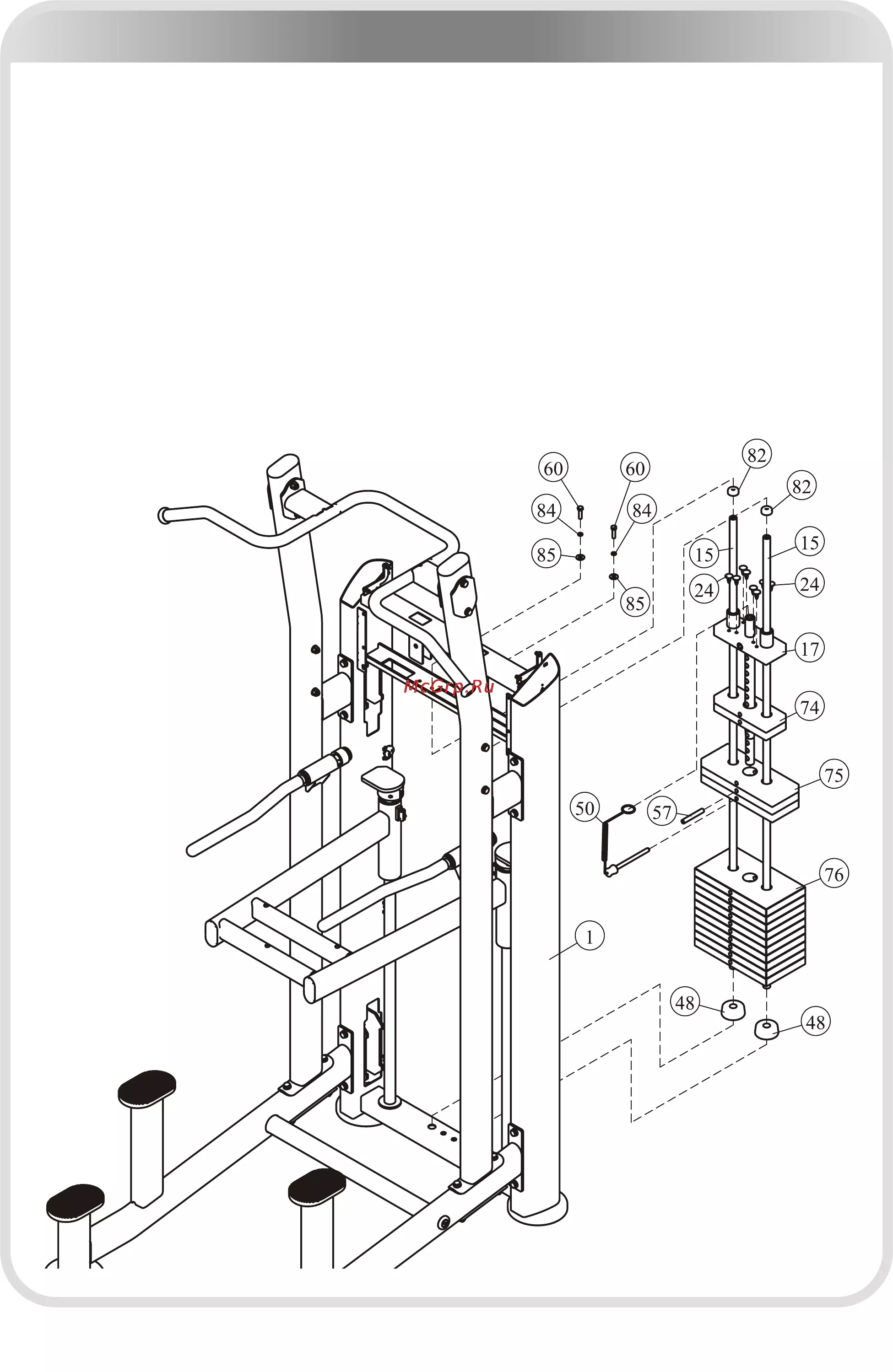

3. Attach two 6" Pulley (#52) to the Weight Stack Frame (#1) using:

● two M10*50 HHB (#59)

● four Φ11*Φ20*2 Flat Washer (#54)

● two M10 Nylon lock Nut (#55)

4. Attach the Cable (#26) to the Glide Support (#7) using:

● two M4*15 SHCS (#63)

●
