Assembly

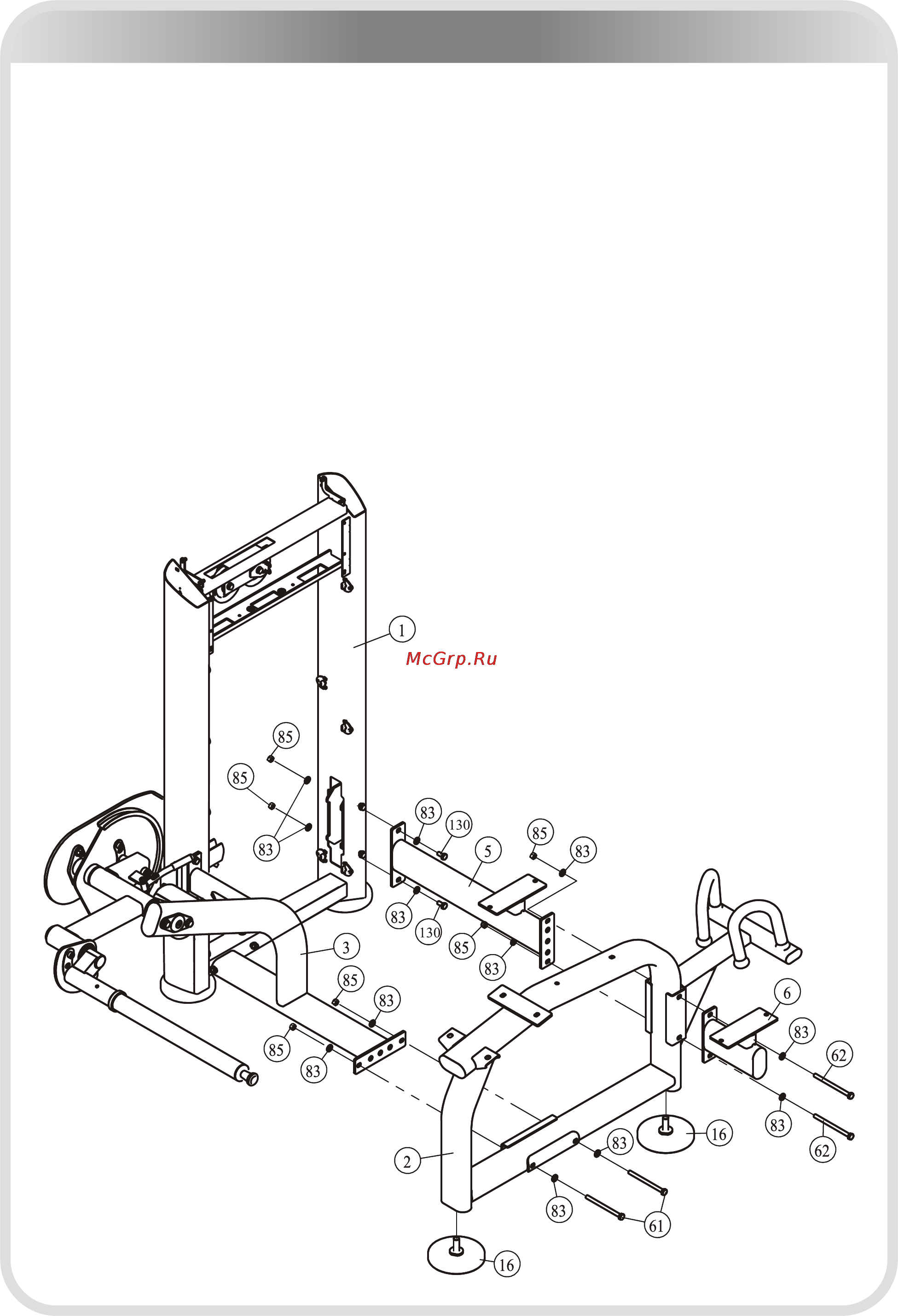

STEP 2

1. Attach two Adjustable Foot plates (#16) to the Main Frame (#2).

2. Attach the Main Frame (#2) to the Bottom Cross Brace (#3) using:

● two M10*135 HHB (#61)

● four Φ11*Φ20*2 Flat Washers (#83)

● two M10 Nylon Lock Nuts (#85)

3. Attach the Left Cross Brace (#5) and the Right Cross Brace (#6) to the Weight

Stack Frame (#1) and the Main Frame (#2) using:

● two M10*140 HHB (#62)

● two M10*75 HHB (#130)

● eight Φ11*Φ20*2 Flat Washers (#83)

● four M10 Nylon Lock Nuts (#85)

Note: Wrench Tighten Bolts and Nylon Lock nuts.
