─ 13 ─

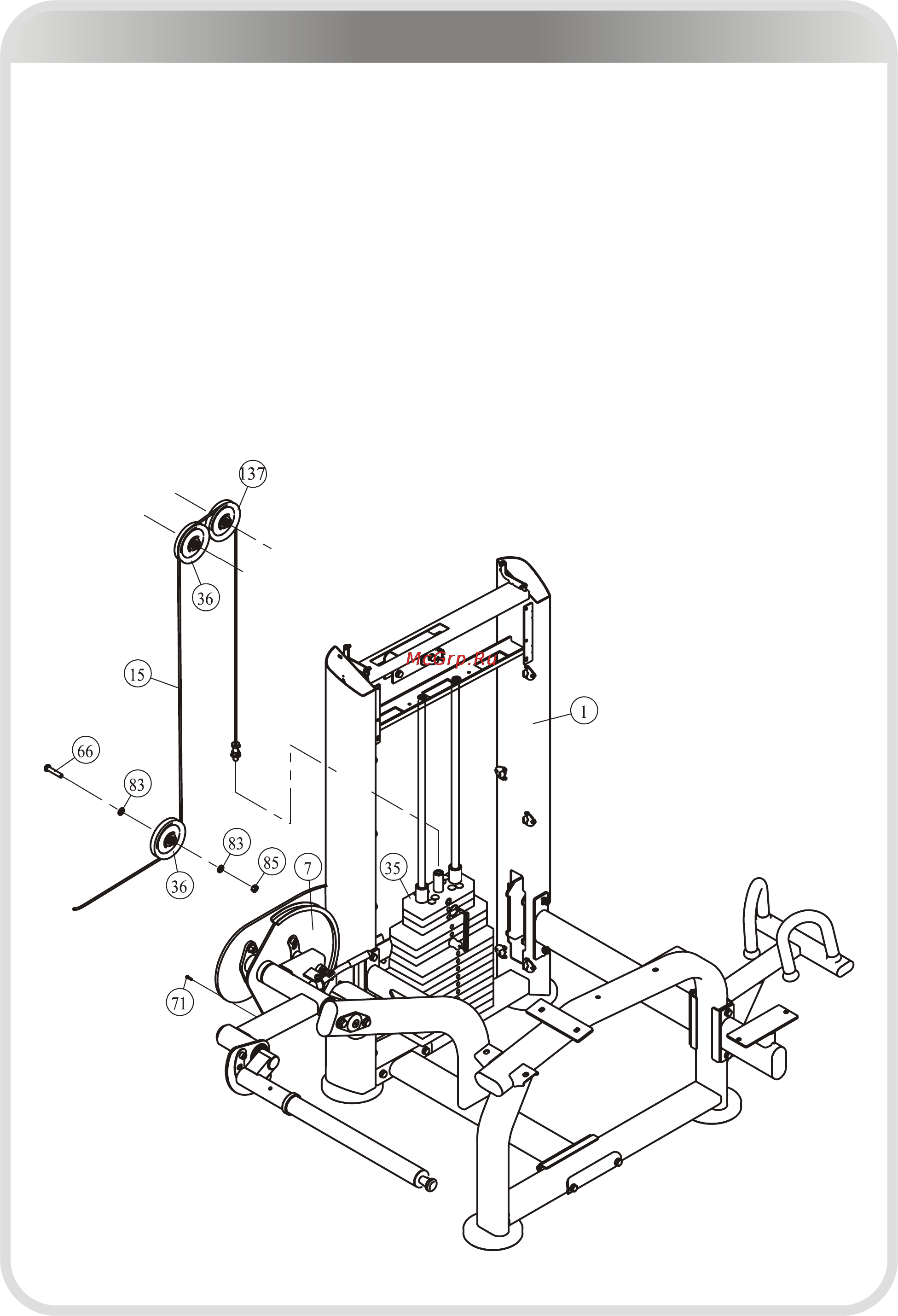

Assembly

1. Attach the Cable (#15) to the Weight Stack Frame (#1) and go through two 4.5"

Pulleys.

2. Attach one 4.5" Pulleys (#36) to the Weight Stack Frame (#1) using:

● four M10*50 HHB (#66)

● eight Φ11*Φ20*2 Flat Washers (#83)

● four M10 Nylon Lock Nuts (#85)

3. Attach the Cable (#15) to the Top Plate (#35), the Weight Stack Frame (#1) and the

Adjustable Cam (#7), then tighten the M4*15 SHCS (#71).

Note: Wrench Tighten Bolts and Nylon Lock nuts.

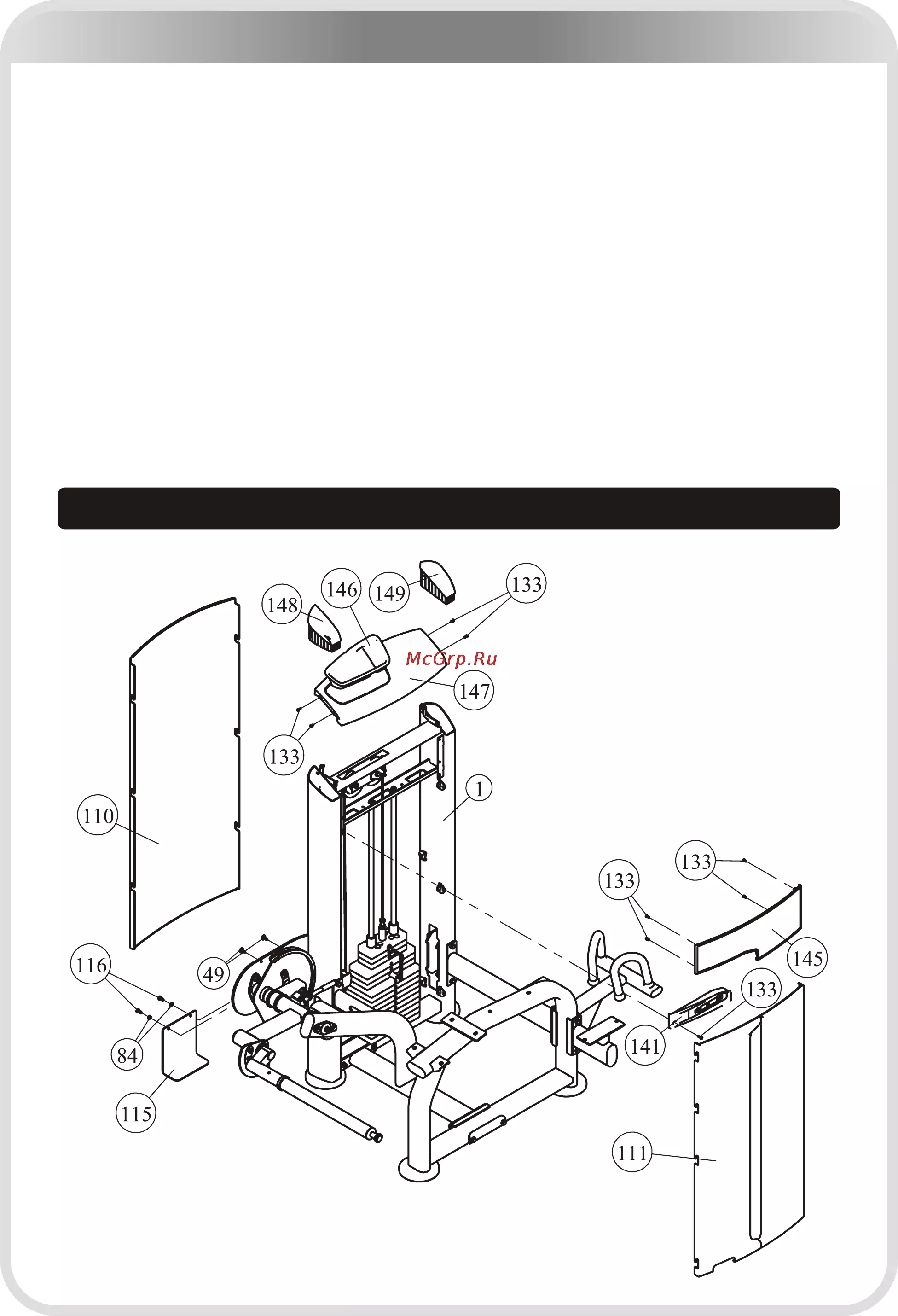

STEP 4
