─ 11 ─

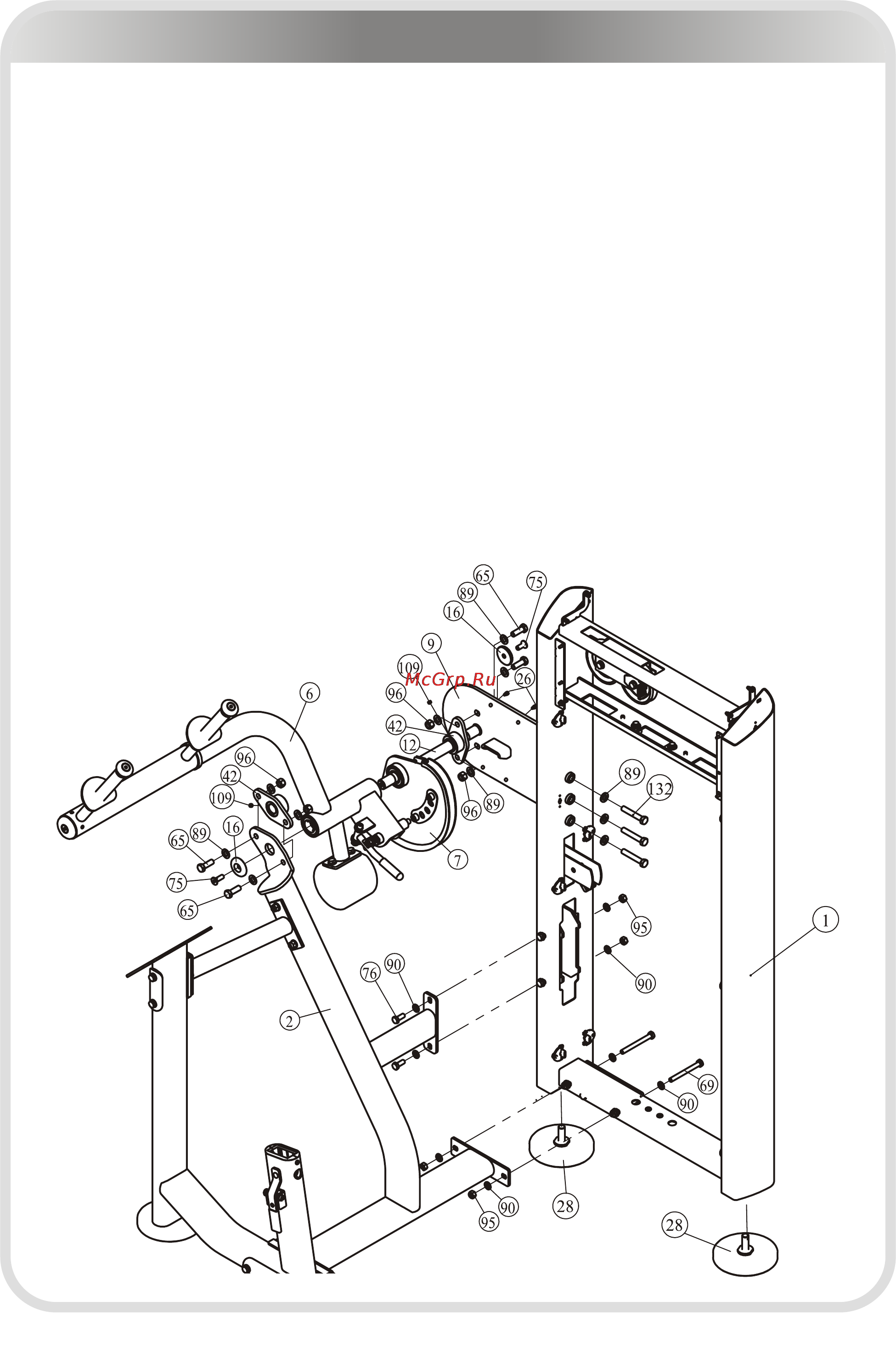

Assembly

STEP 2

1. Attach two Adjustable Foot Plate (#28) to the Weight Stack Frame (#1).

2. Attach the Main Bracket (#9) to the Weight Stack Frame (#1) using:

● three Φ13*Φ24*1.5 Flat Washers (#89) ● three M12*70 HHB (#132)

3. Attach one Flange (#42) to the Bottom Cross Brace (#2) using:

● two M12*35 HHB (#65) ● four Φ13*Φ24*1.5 Flat Washers (#89)

● two M12*70 HHB (#132)

4. Attach another Flange (#42) to the Main Bracket (#9) using:

● two M12*35 HHB (#65) ● four Φ13*Φ24*1.5 Flat Washers (#89)

● two M12 Nylon lock Nuts (#96)

5. Attach the Arm Bracket (#6) and the Cam Wheel Brackets (#7) to the two Flanges

(#42) using:

Φ Φ

●

two 50* 10.5*8 Aluminous Caps (#16)

two M10*30 Flat Head Cap Screws (#75)

● one Φ25.4*335.4 Main Shaft (#12)

●

four M8*8 Socket Set Screws (#109)

6. Attach Bottom Cross Brace (#2) to the Weight Stack Frame (#1) using:

●

two M10*75 HHB (#76)

two M10*100 HHB (#69)

Φ Φ

●

eight 11* 20*2 Flat Washers (#90)

four M10 Nylon lock Nuts (#95)

Note: Wrench Tighten Bolts and Nylon Lock nuts.
