Assembly

Item Description Qty

122 Weight Plate 5LBS 2

123 Weight Plate 10LBS 3

124 Weight Plate 15LBS 10

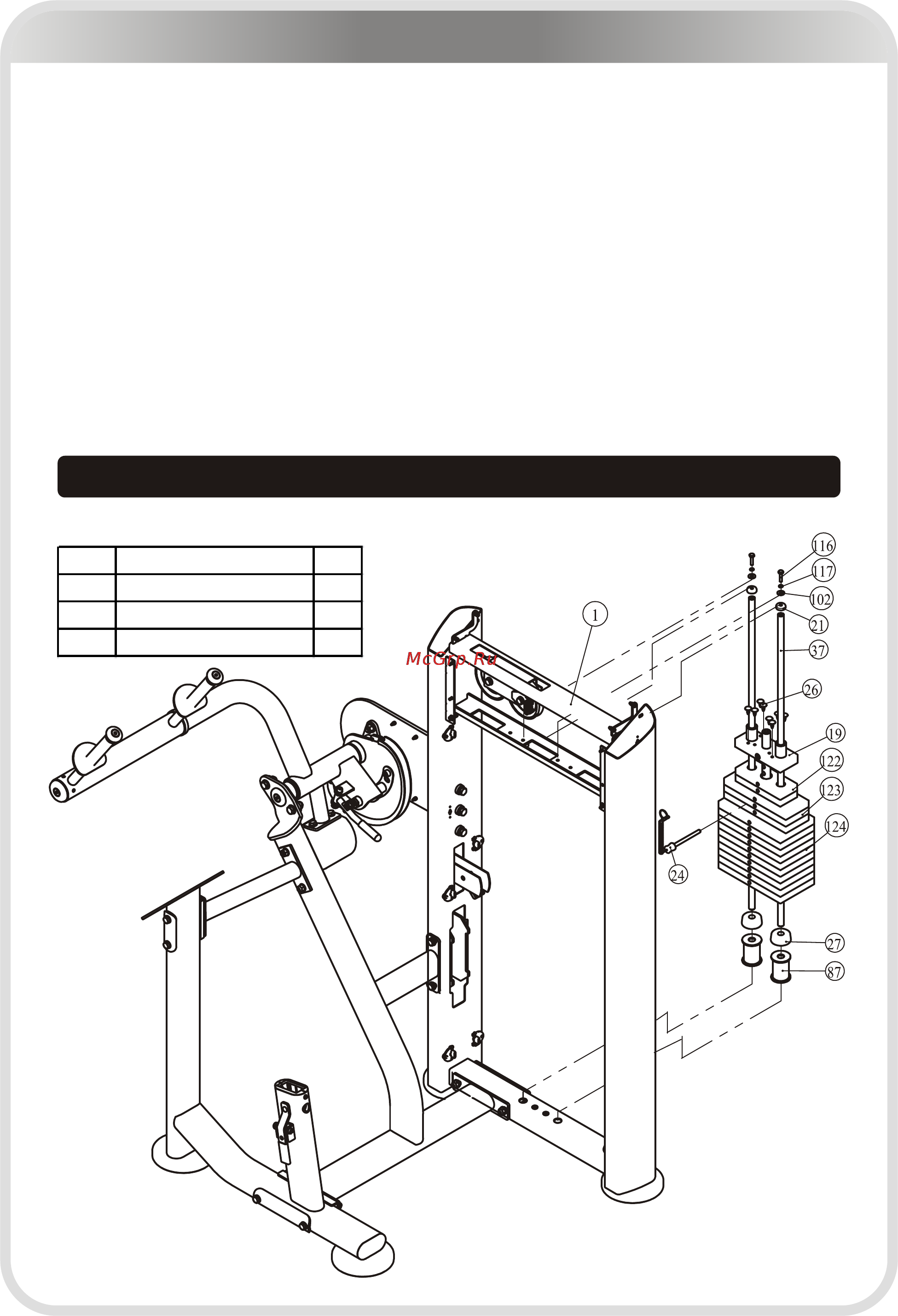

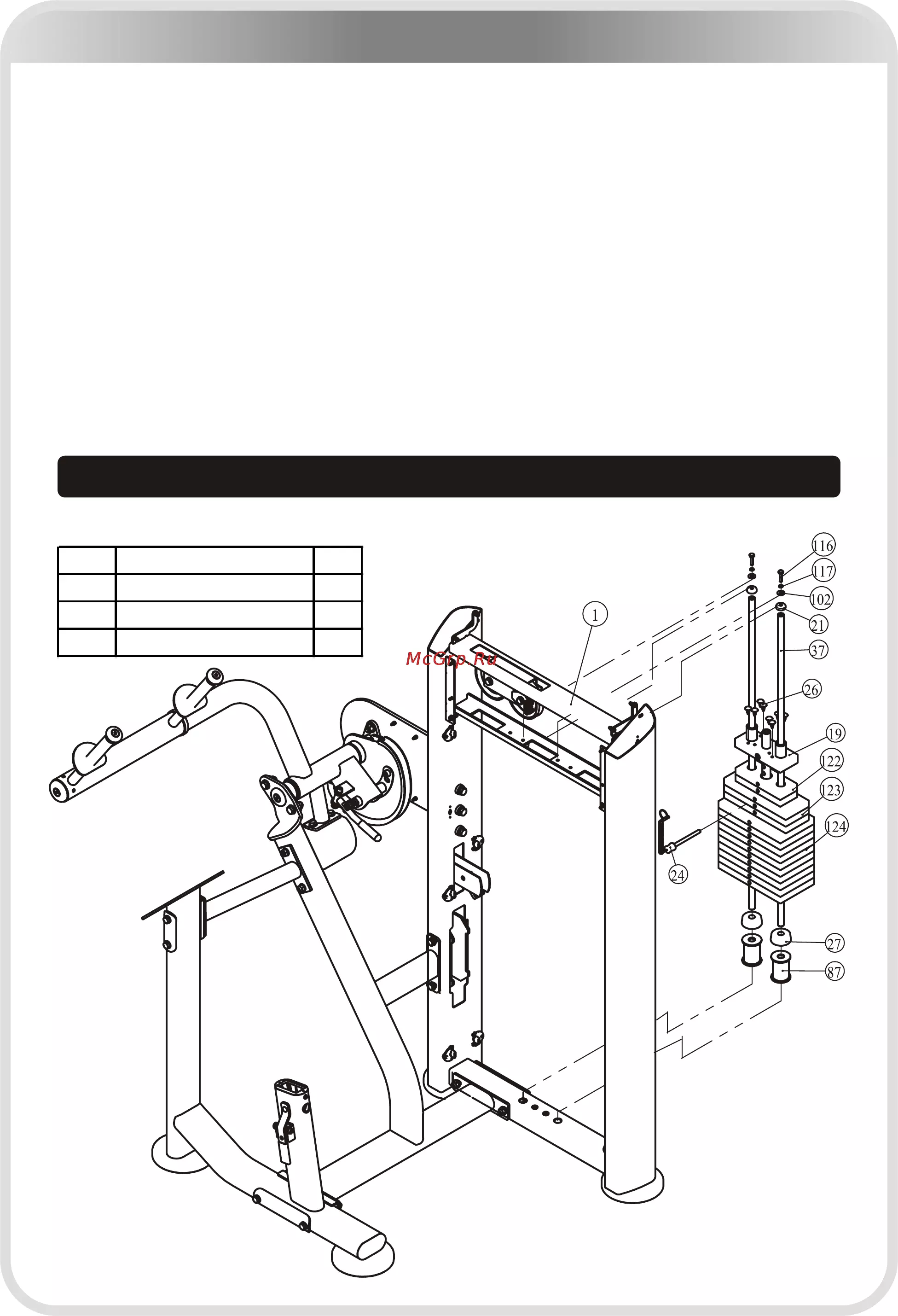

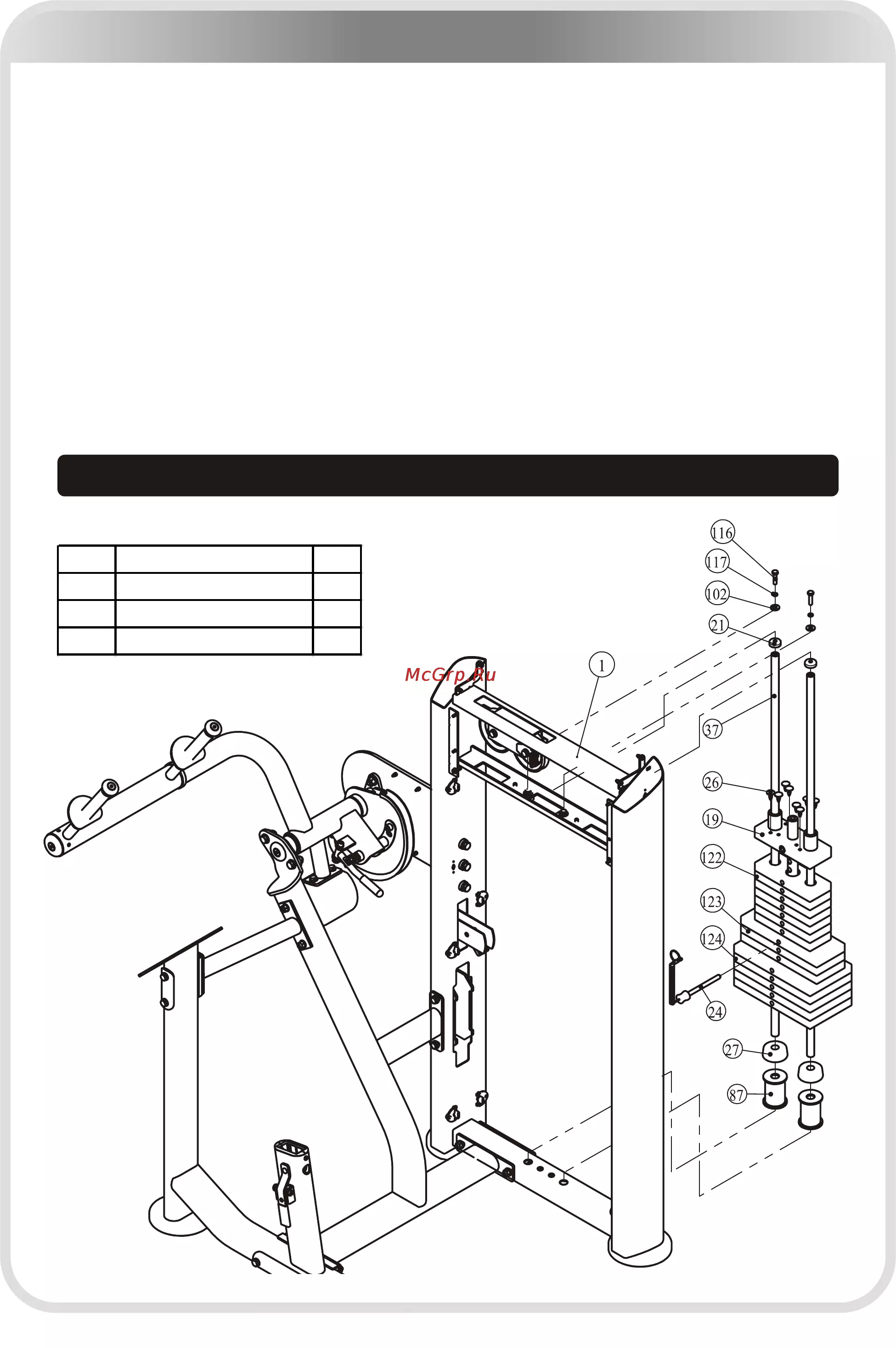

Here is the assembly instruction for 200LBS Weights !

200LBS Weight

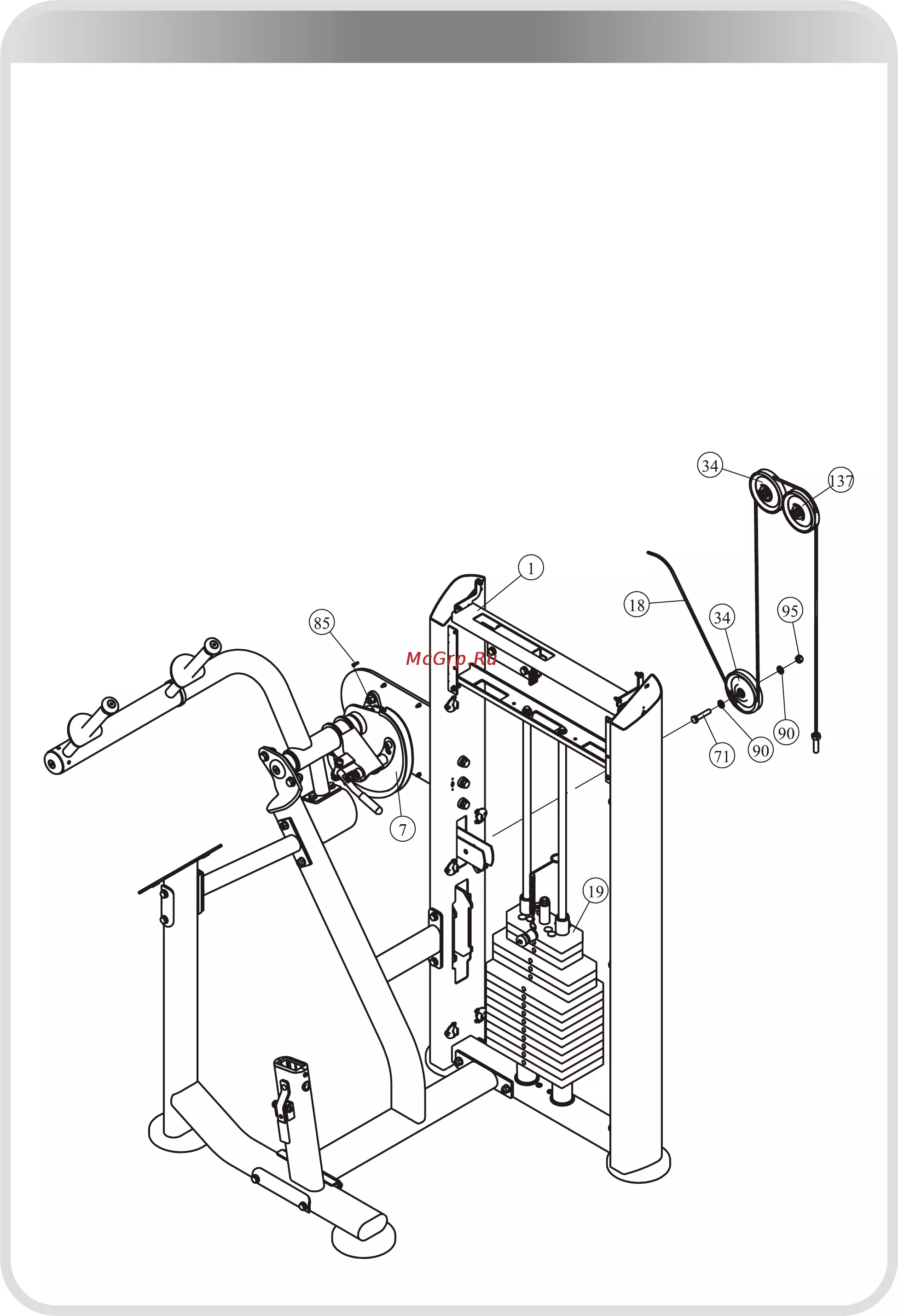

STEP 3

1. Attach:

two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#27)

●

two 19*1177 Guide Rods (#37)

●

en Weight Plate 15LBS (#124)

two Weight Stack Spaces (#87)

●

three Weight Plate 10LBS (#123)

●

two Weight Plate 5LBS (#122)

● one Top Plate (#19)

to the Weight Stack Frame (#1) using:

● two M8*30 HHB (#116) ● two Φ8 Spring Washers (#117)

Φ Φ

●

two 29* 19*10 Rubber Plugs (#21)

two 9* 22*1.6 Flat Washers (#102)

2. Attach the Selector Pin W/Coil (#24) to the Top Plate (#19).

3. Attach eight Φ8*Φ20*23 Buttons (#26) to the Top Plate (#19).

Note: Wrench Tighten Bolts and Nylon Lock nuts.
