─ 15 ─

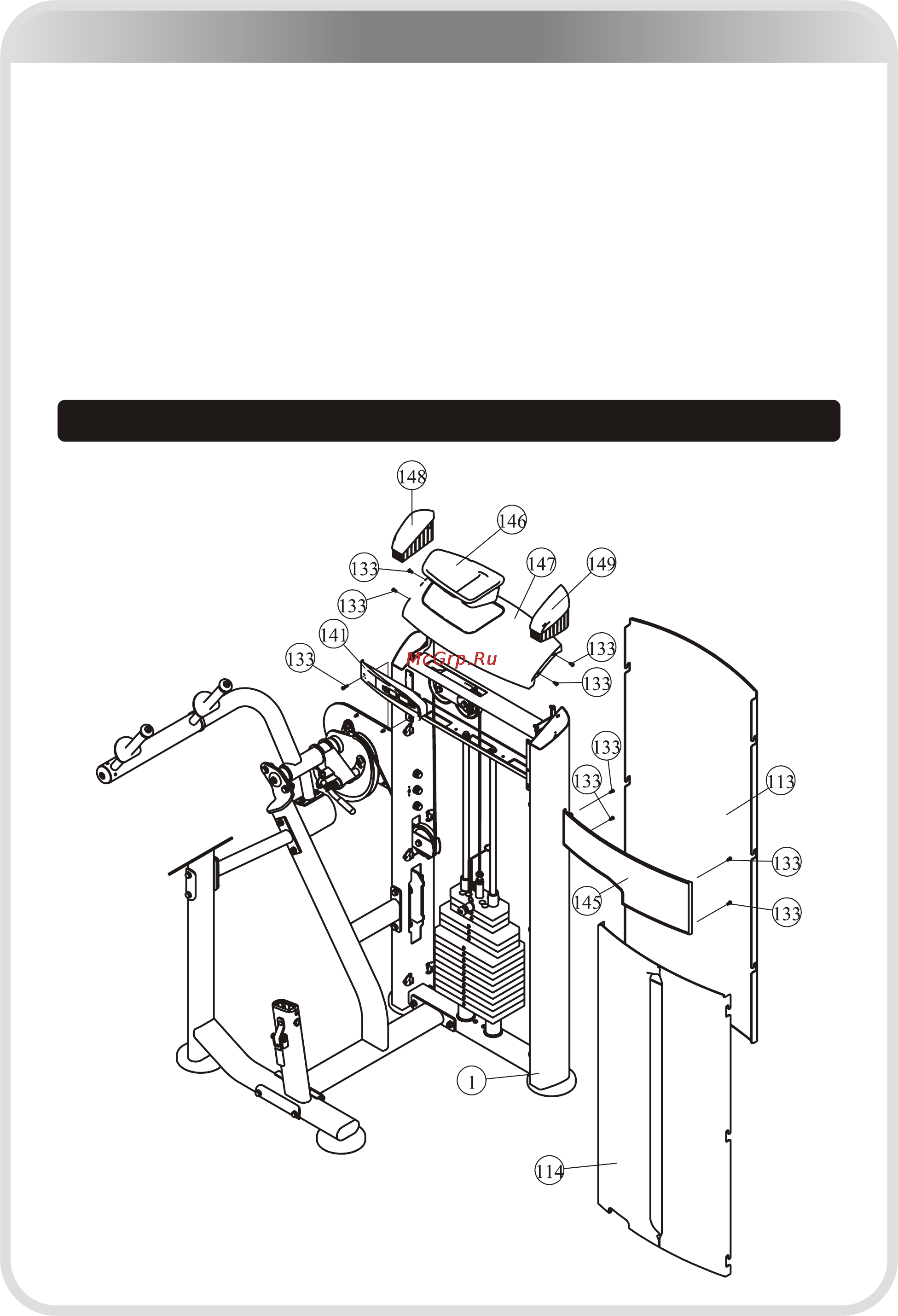

Assembly

1. Attach one Front Shroud (#114) to the Weight Stack Frame (#1).

2. Attach one Rear Shroud (#113) to the Weight Stack Frame (#1).

3. Attach the Top Front Shroud (#145) and the Console PCB (#141) to the Weight

Stack Frame (#1) using:

● five M5*12 Screws (#133)

4. Attach the Top Cover (#147) to the Weight Stack Frame (#1) using:

● four M5*12 Screws (#133)

5. Attach the Left Plug (#148) and Right Plug (#149) to the Weight Stack Frame (#1).

Note: Wrench Tighten Bolts and Nylon Lock nuts.

STEP 5

Here is the assembly instruction for Console PCB !
