STEP 6

─ 18 ─

Assembly

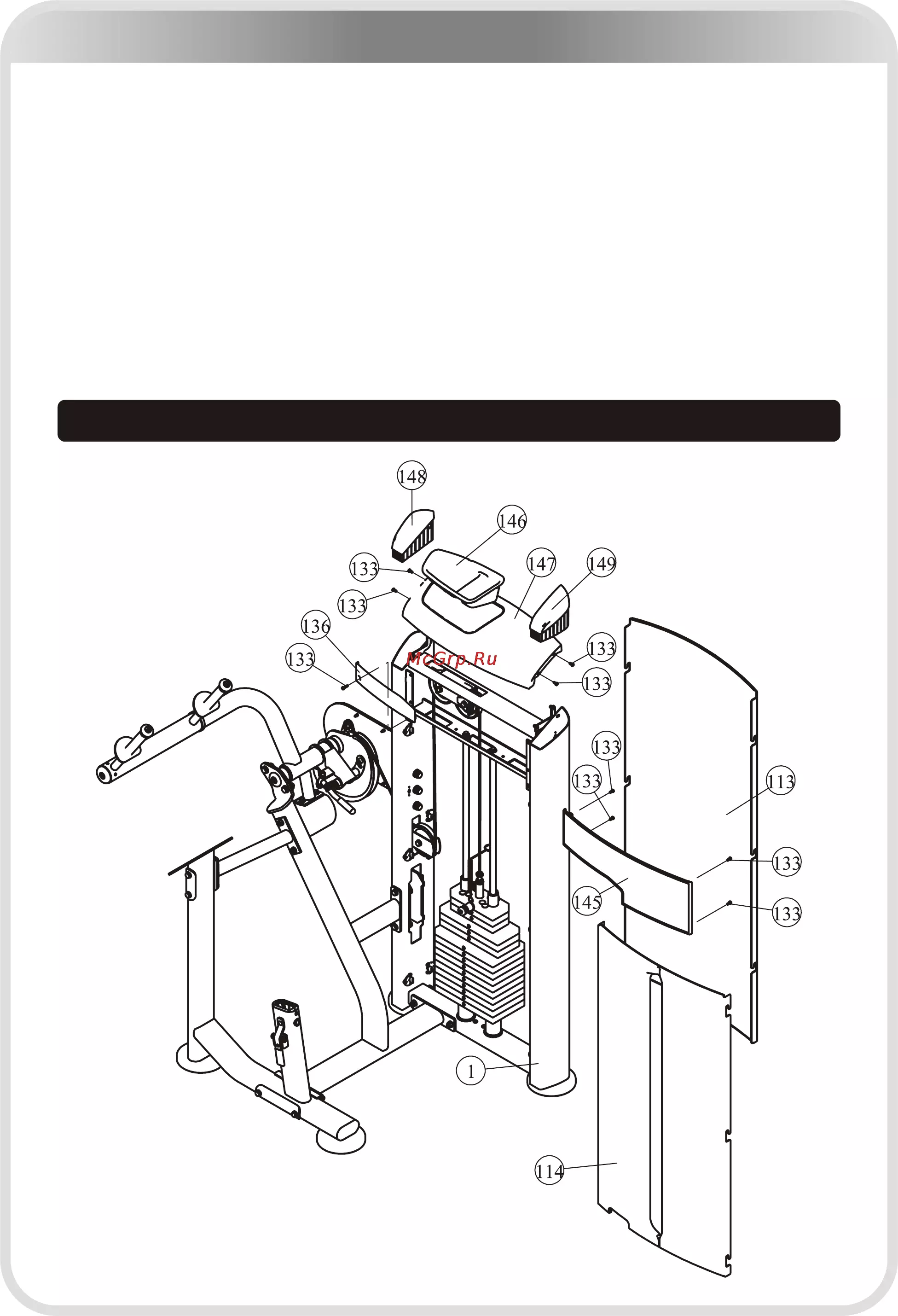

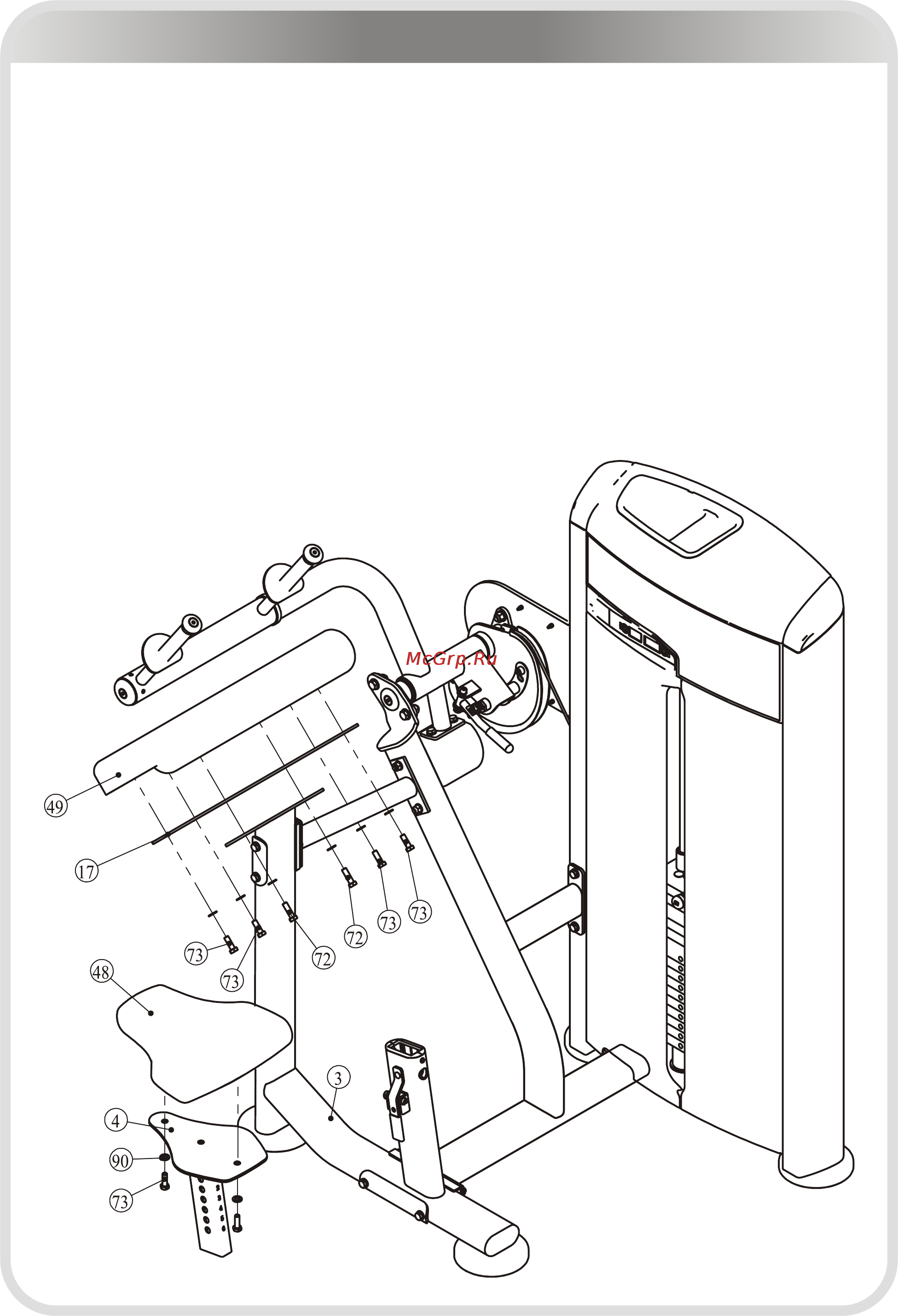

1. Attach the Seat Pad Support (#4) to the Main Frame (#3) using:

● one M8*30 SHCS (#79)

2. Attach the Seat Pad (#48) to the Seat Pad Support (#4) using:

● two M10*30 HHB (#73)

● two Φ11*Φ20*2 Flat Washers (#90)

3. Attach the Arm Pad (#49) and the Underlaying Flat Steel (#17) to the Main Frame

(#3) using:

● four M10*30 HHB (#73)

● two M10*35 HHB (#72)

● six Φ11*Φ20*2 Flat Washers (#90)

Note: Wrench Tighten Bolts and Nylon Lock nuts.
