─ 14 ─

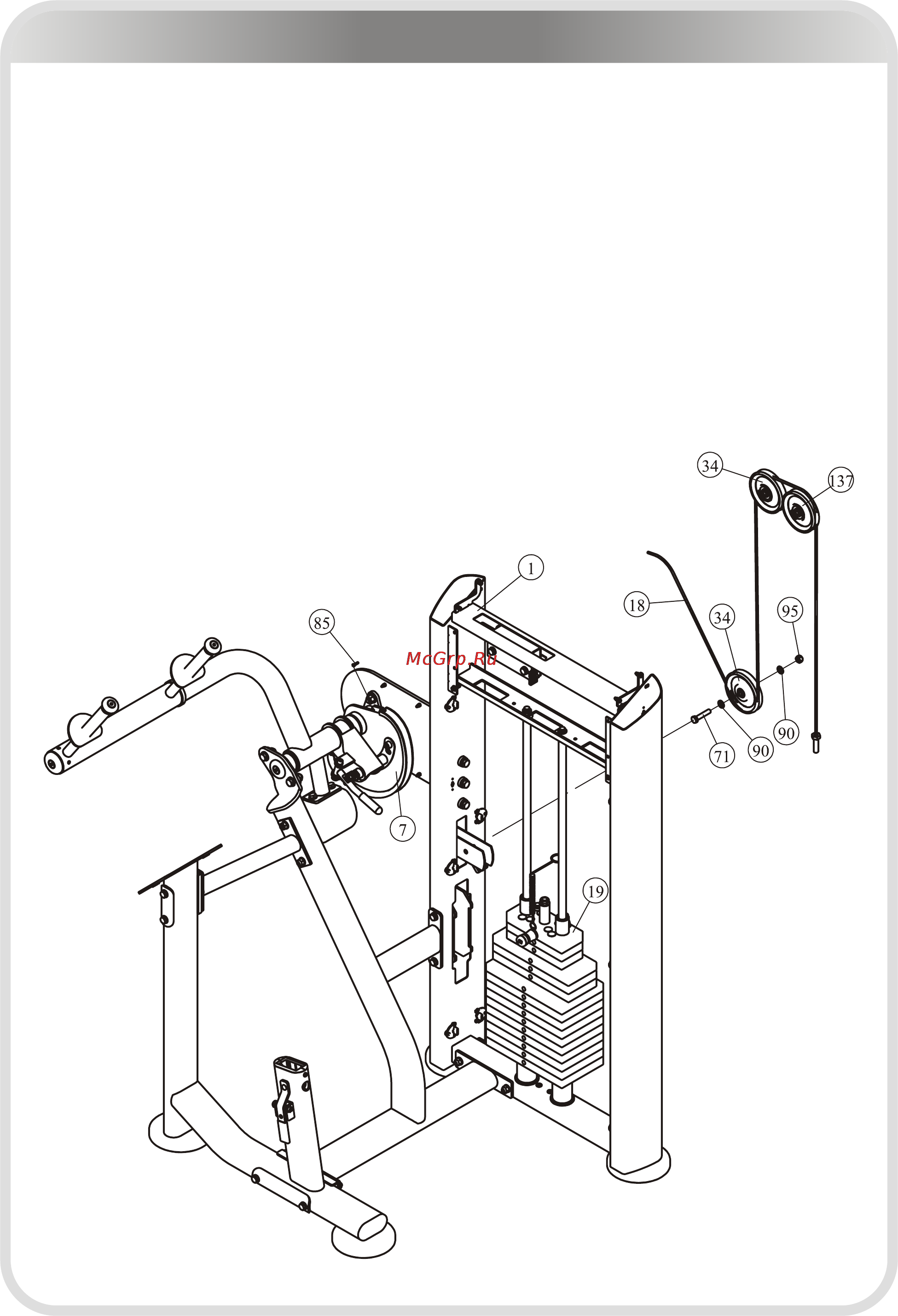

Assembly

1. Attach the Press Cable (#18) to the Top Plate (#19) and go through two 4.5"

Pulleys.

2. Attach one 4.5" Pulleys (#34) to the Weight Stack Frame (#1) using:

● one M10*50 HHB (#71)

● two Φ11*Φ20*2 Flat Washers (#90)

● one M10 Nylon lock Nuts (#95)

3. Attach the Press Cable (#18) to the Cam Wheel Brackets (#7) using:

● one M4*15 SHCS (#85)

Note: Wrench Tighten Bolts and Nylon Lock nuts.

STEP 4
