─ 12 ─

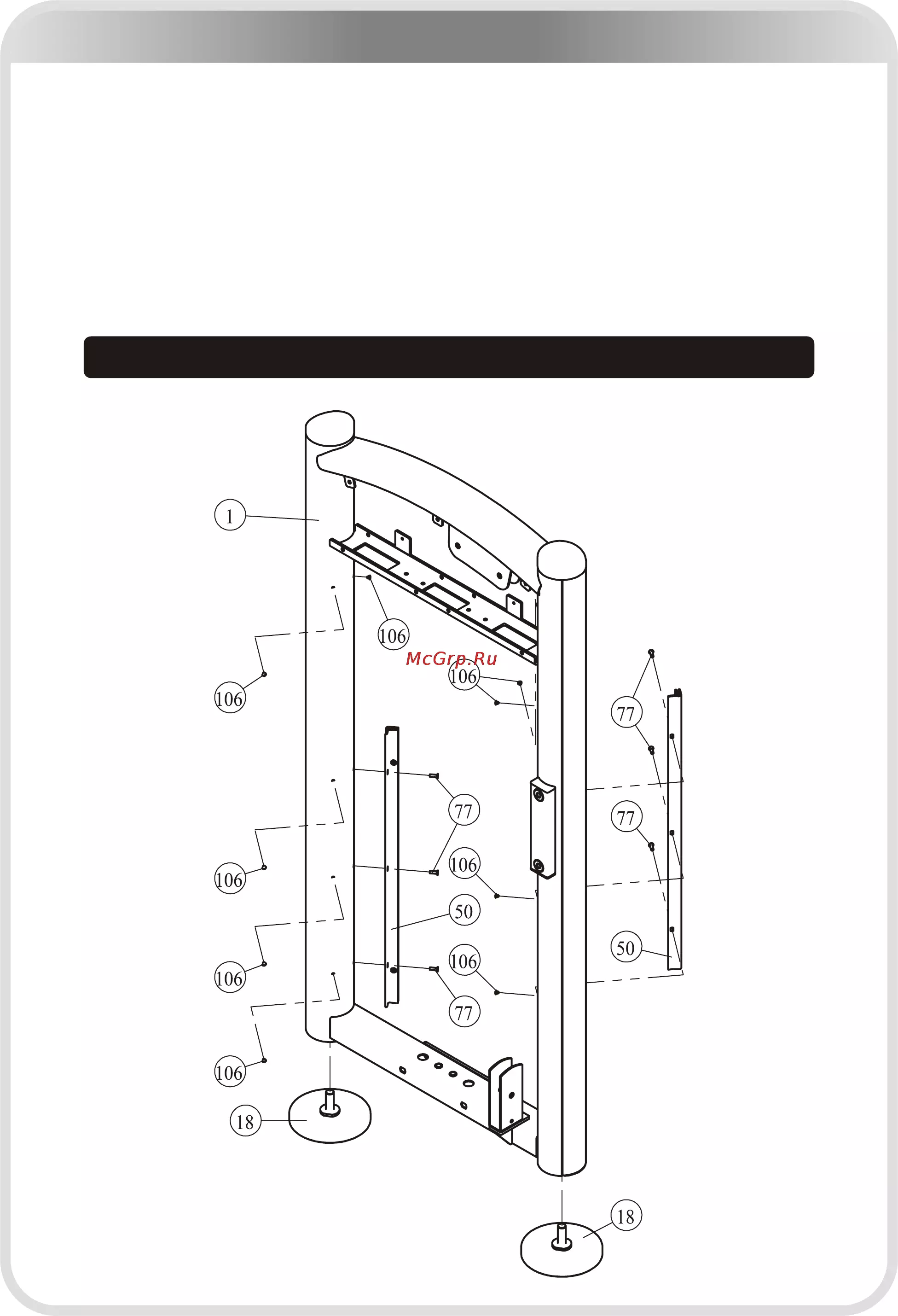

Assembly

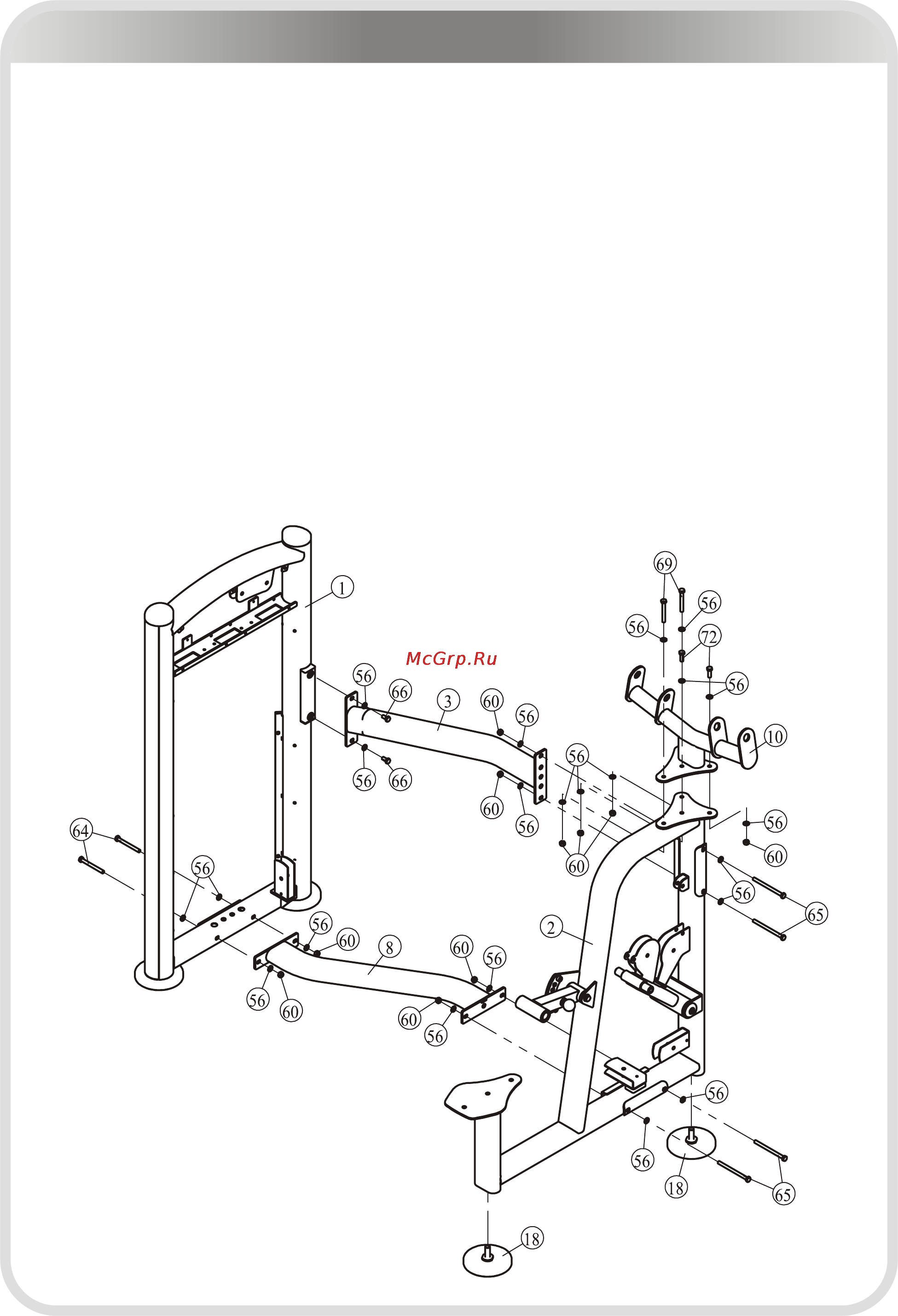

STEP 2

1. Attach two Adjustable Foot plate (#18) to the Main Frame (#2).

2. Attach the Bottom Cross Brace (#8) to the Weight Stack Frame (#1) and the

Main Frame (#2) using:

two M10*100 HHB (#64) two M10*135 HHB (#65)

eight Φ11*Φ20*2 Flat Washers (#56) four M10 Nylon Lock Nuts (#60)

3. Attach the Rear Cross Brace (#3) to the Weight Stack Frame (#1) and the

Main Frame (#2) using:

two M10*135 HHB (#65) two M10*20 HHB (#66)

six Φ11*Φ20*2 Flat Washers (#56) two M10 Nylon Lock Nuts (#60)

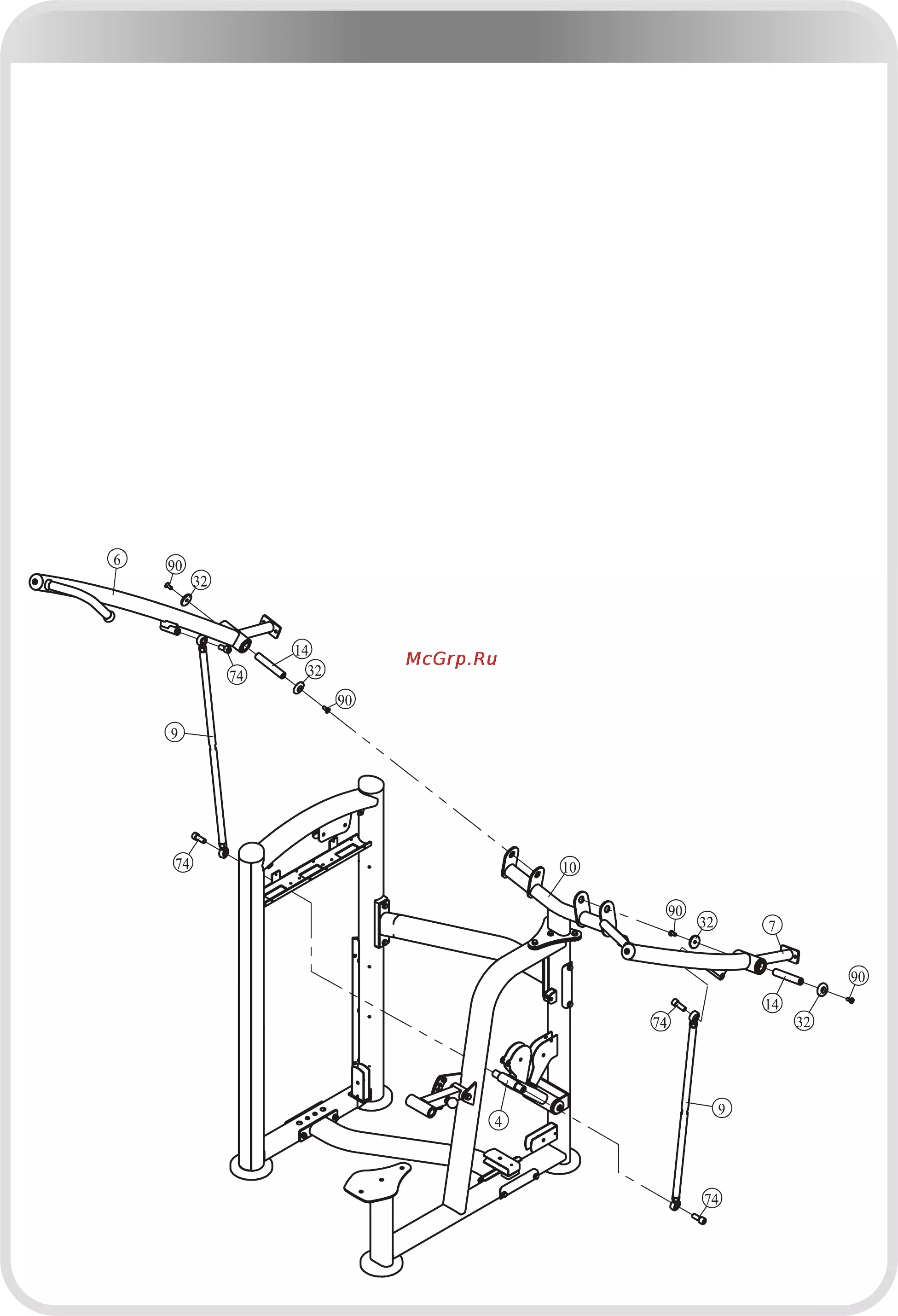

4. Attach the Upper Frame (#10) to the Main Frame (#2) using:

two M10*80 HHB (#69) two M10*30 HHB (#72)

eight Φ11*Φ20*2 Flat Washers (#56) four M10 Nylon Lock Nuts (#60)

Note: Hand tighten Βolts and Nylon Lock nuts.
