─ 19 ─

AssemblyAssembly

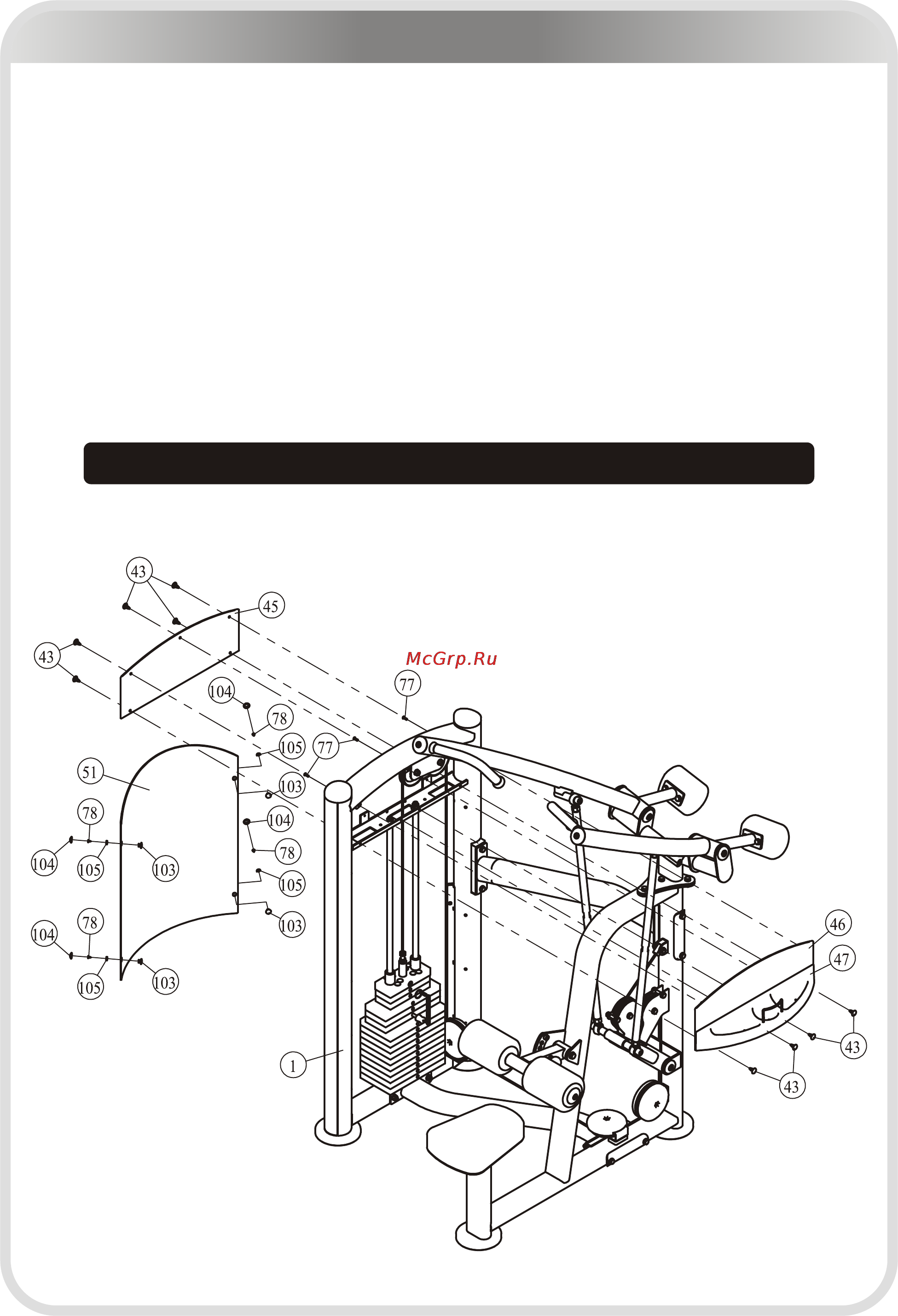

STEP 7

1. Attach the Shroud (#51) to the Weight Stack Frame (#1) using:

four Φ18*12 Connect Buttons (#103) four Φ13*3 Plastic Washers (#105)

four ST4.2*10 Self-Tapping Screws (#78) four Φ21*5.7 Plastic Covers (#104)

2. Attach the Top Front Shroud (#46) and the Support (#47) to the Weight Stack

Frame (#1) using:

four Φ8*Φ20*23 Buttons (#43) three M5*16 Flat Philips Screws (#77)

3. Attach the Top Rear Shroud (#45) to the Weight Stack Frame (#1) using:

five Φ8*Φ20*23 Buttons (#43)

Note: Wrench Tighten Bolts and Nylon Lock nuts.

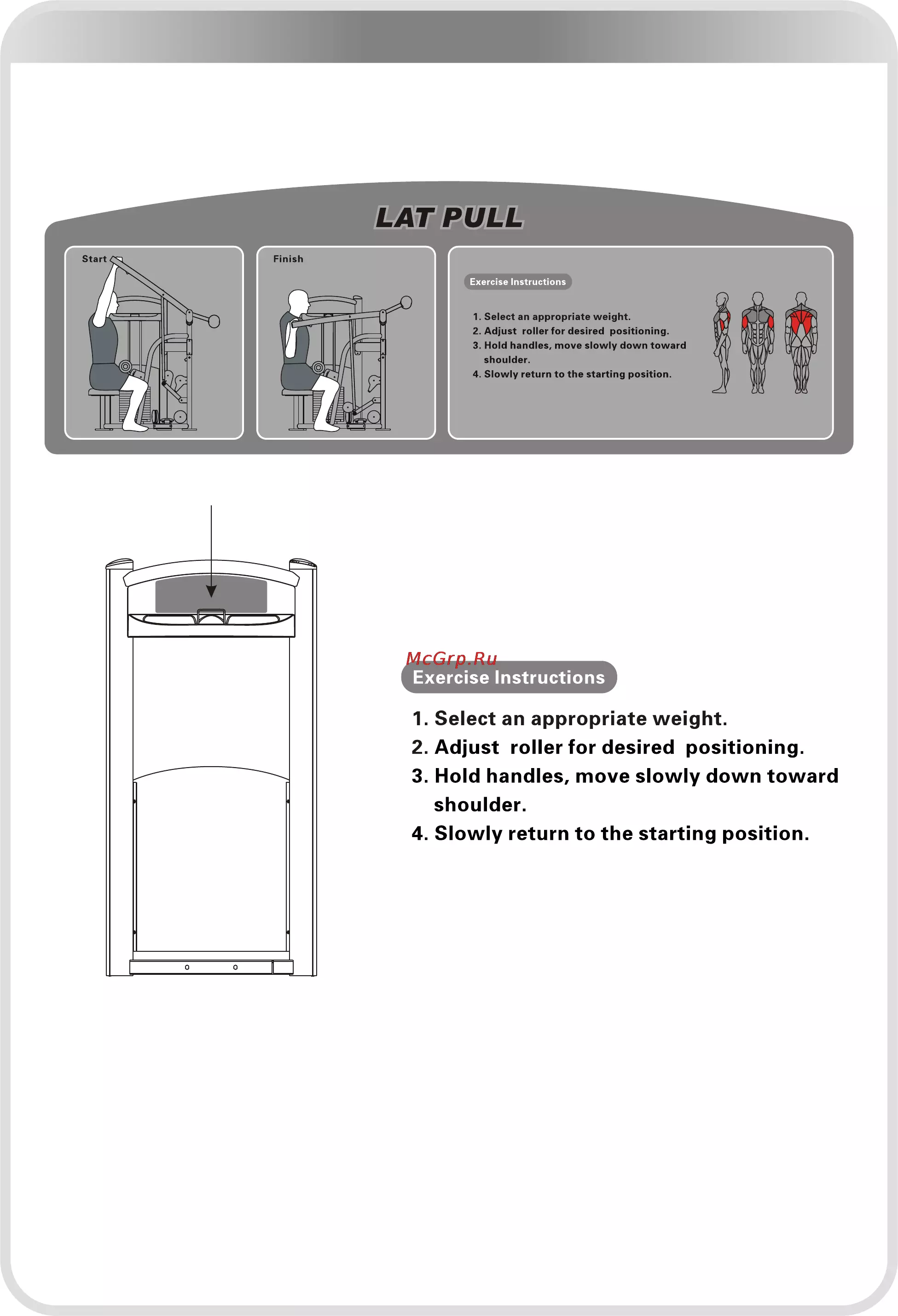

Here is the assembly instruction for Shor t Shroud !
