Assembly

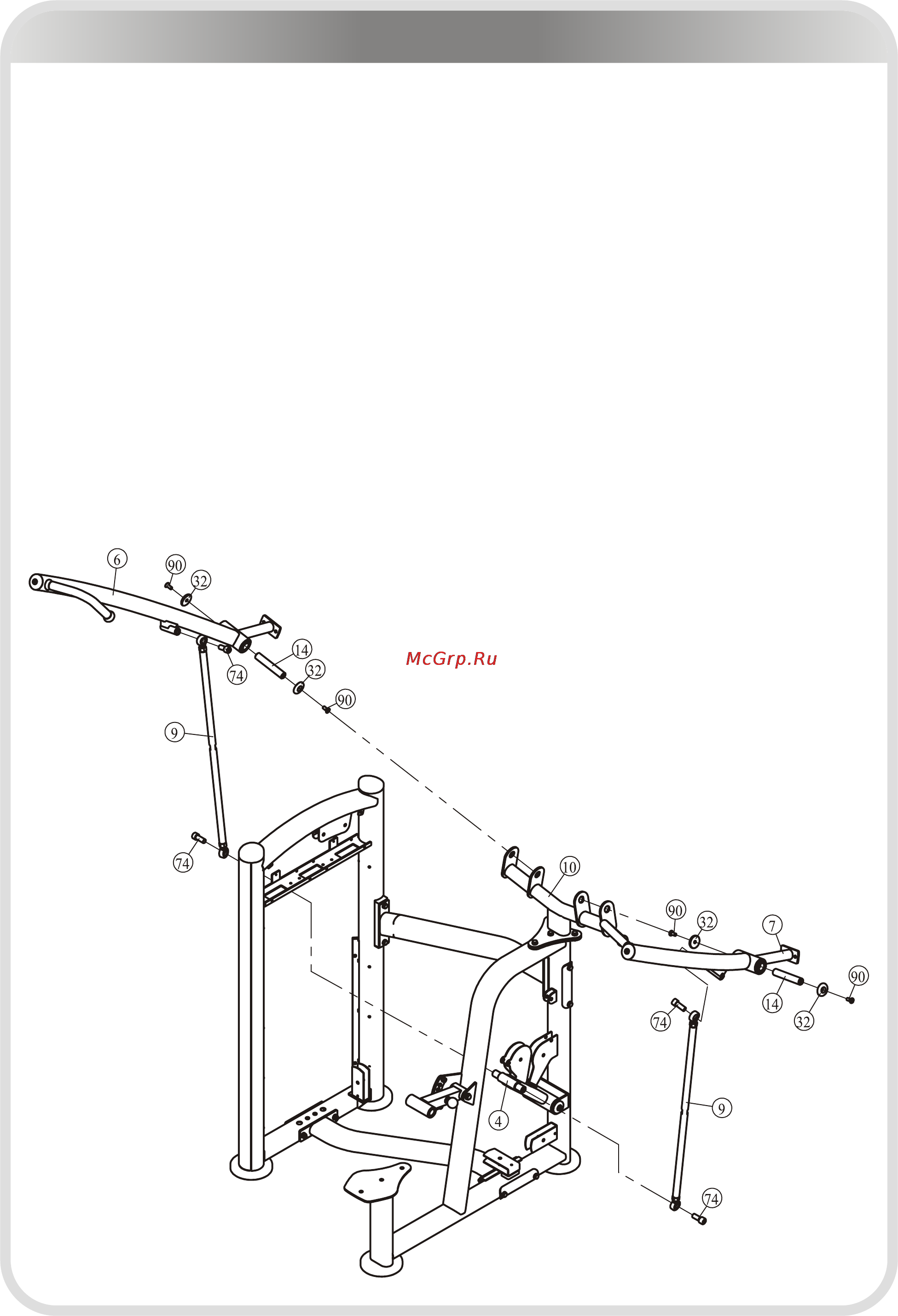

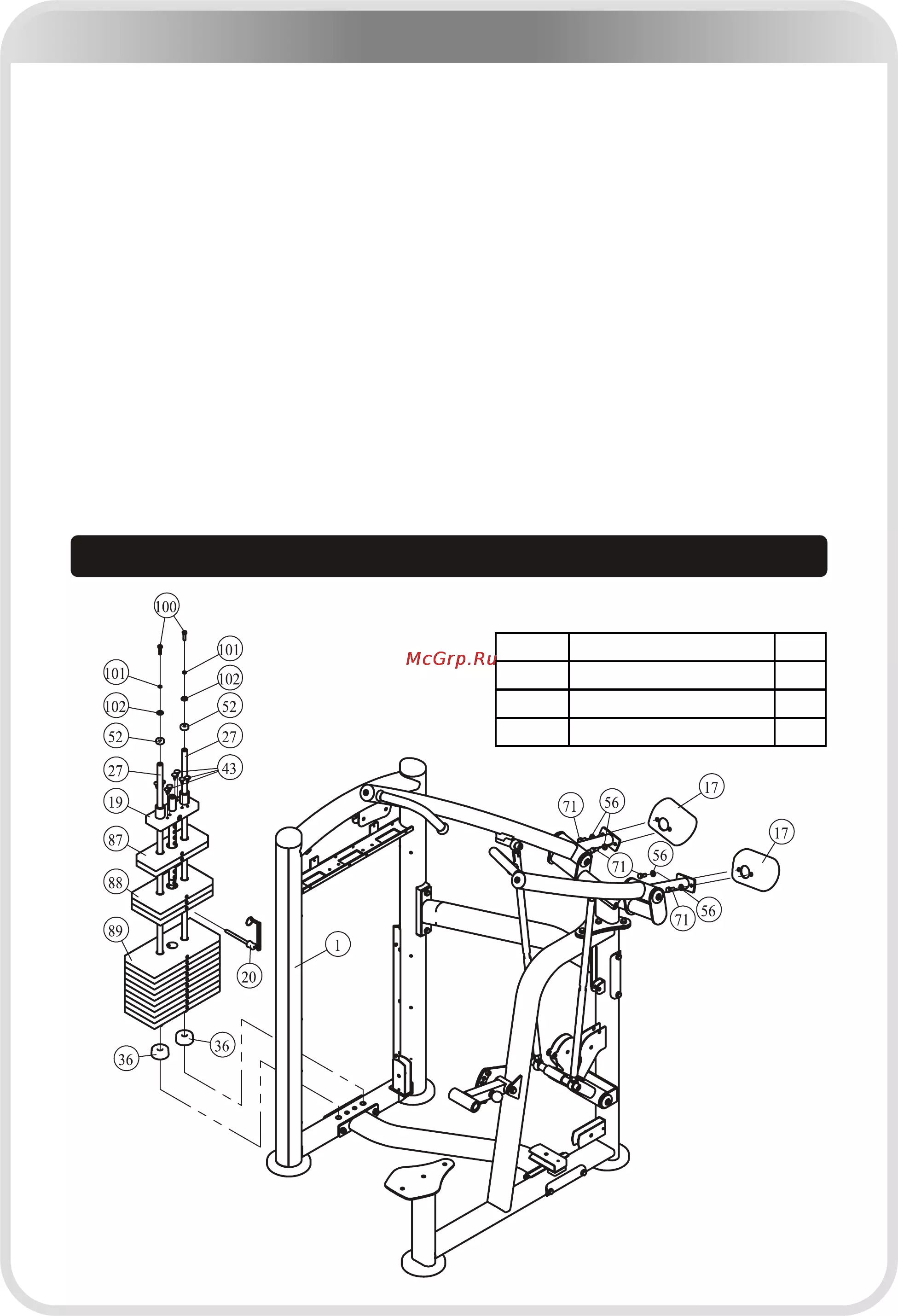

STEP 3

1. Attach the Left Pull Arm (#6) to the Upper Frame (#10) using:

one Φ25.4*144 Pivot Axle (#14) two Φ50*Φ10.5*8 Aluminium Caps (#32)

two M10*25 Flat Head Cap Screws (#90)

2. Attach the Right Pull Arm (#7) to the Upper Frame (#10) using:

one Φ25.4*144 Pivot Axle (#14) two Φ50*Φ10.5*8 Aluminium Caps (#32)

two M10*25 Flat Head Cap Screws (#90)

3. Attach one Rod (#9) to the Left Pull Arm (#6) and the Sway Pulley Bracket

(#4) using:

two M16*40 SHCS (#74)

4. Attach one Rod (#9) to the Right Pull Arm (#7) and the Sway Pulley Bracket

(#4) using:

two M16*40 SHCS (#74)

Note: Wrench Tighten Βolts and Nylon Lock nuts.
