─ 17 ─

AssemblyAssembly

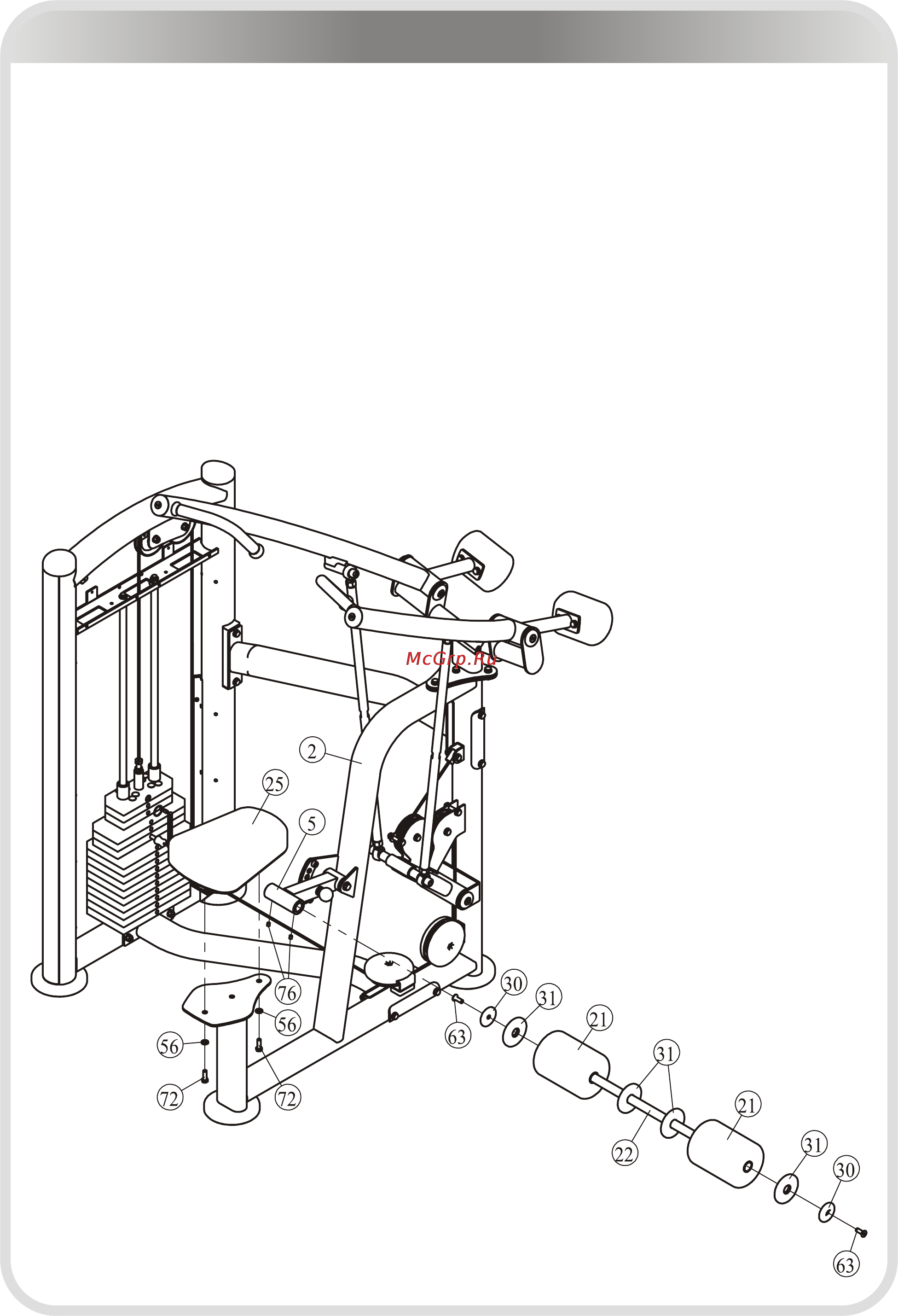

STEP 6

1. Attach the Seat Pad (#25) to the Main Frame (#2) using:

two M10*30 HHB (#72) two Φ11*Φ20*2 Flat Washers (#56)

2. Attach two Short Foam (#21) to the Foam Frame (#5) using:

one Foam Tube (#22) four Φ90*Φ26.2*8.5 Aluminium Ring (#31)

two Φ60*Φ10.5*10.9 Aluminium Cap (#30) two M10*30 FHCS (#63)

Wrench Tighten two M8*8 Socket Set Screws(#76).

Note: Wrench Tighten Bolts and Nylon Lock nuts.
