─ 15 ─

AssemblyAssembly

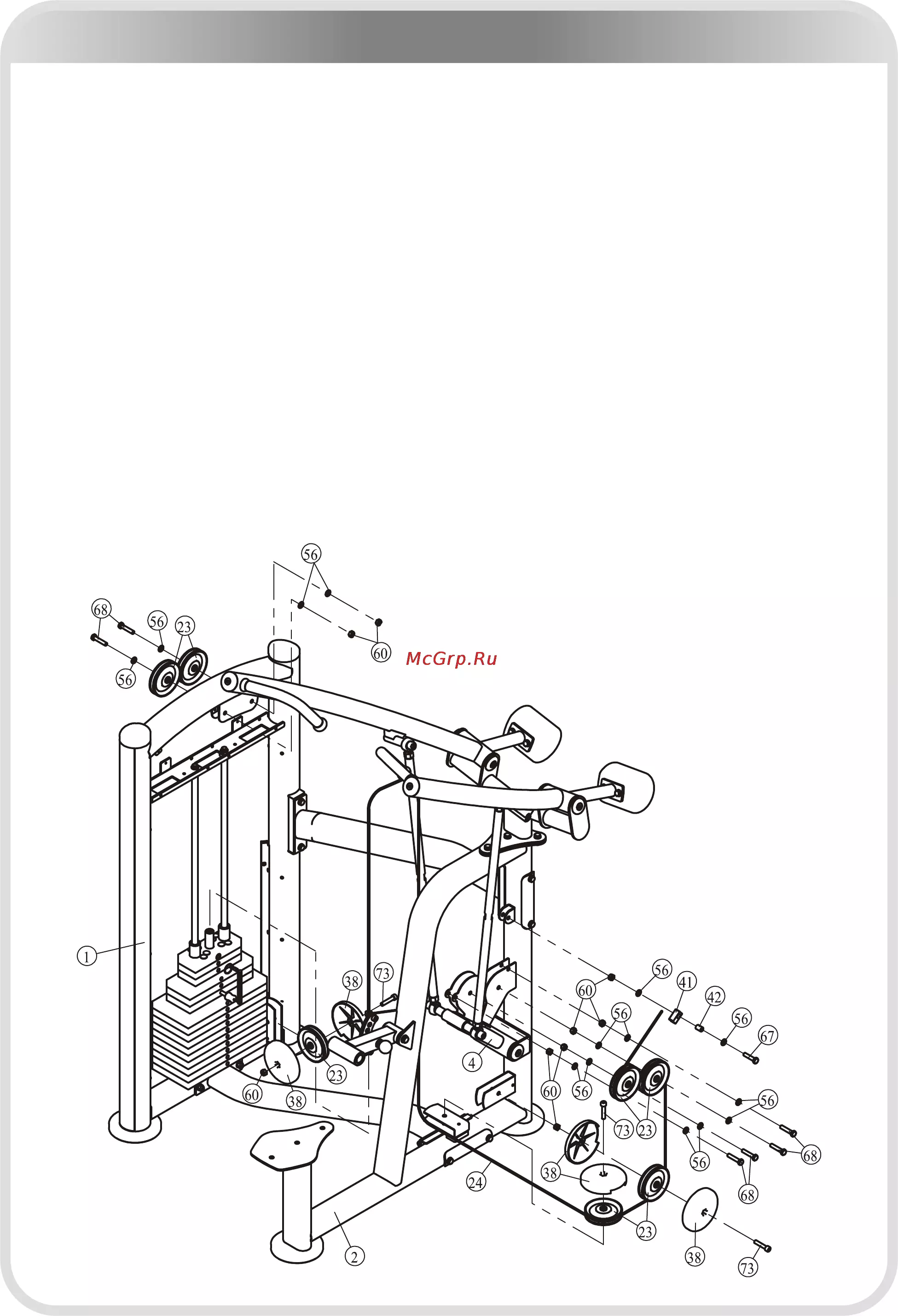

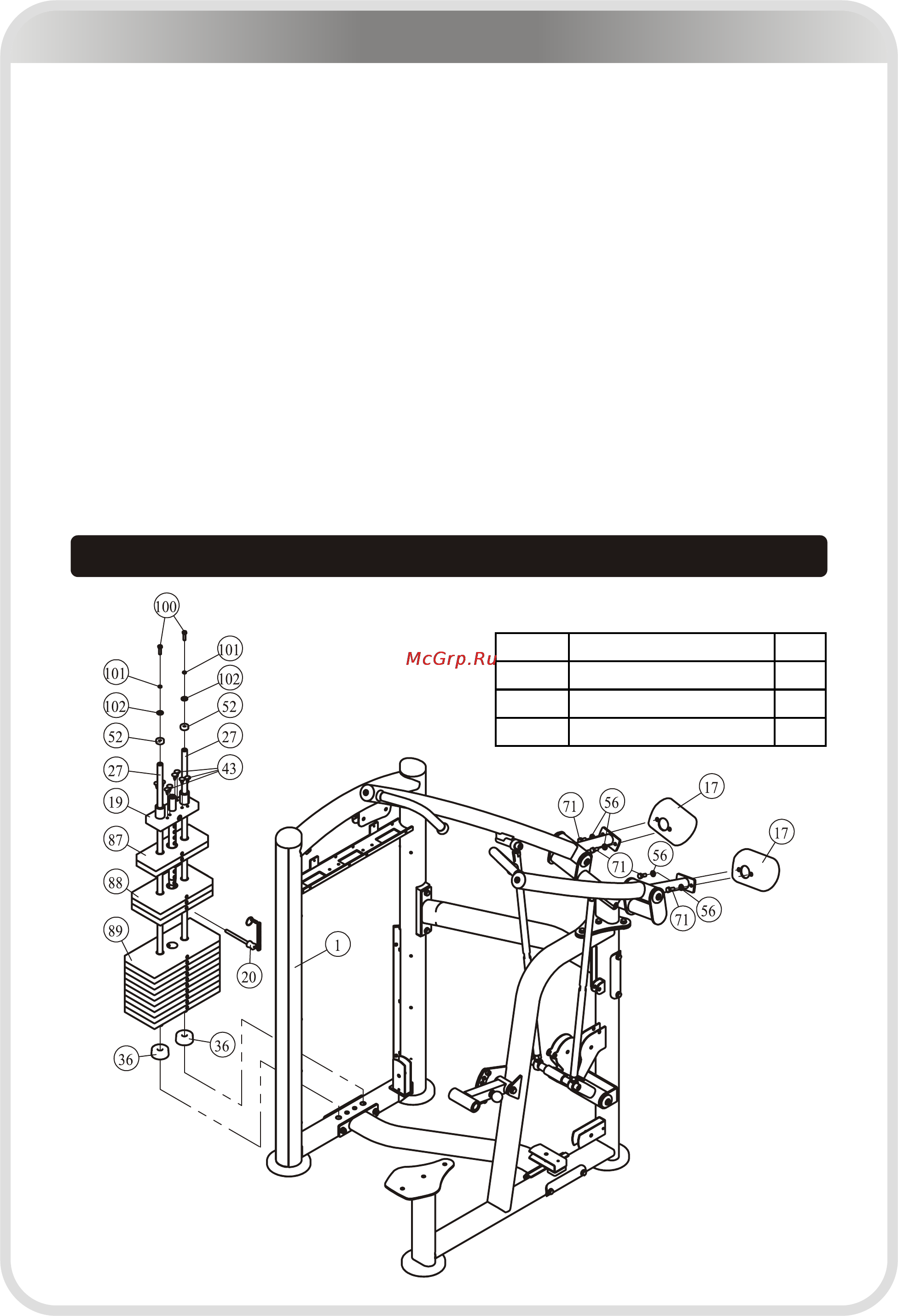

STEP 4

1. Attach:

two Guide Rod (#27) two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#36)

ten Weight Plate 20LBS (#89) three Weight Plate 15LBS (#88)

two Weight Plate 10LBS (#87) one Top Plate (#19)

to the Weight Stack Frame (#1) using:

two M8*30 HHB (#100) two Φ8 Spring Washers (#101)

two Φ9*Φ22*1.6 Flat Washers (#102) two Φ29*Φ19*10 Rubber Plugs (#52)

Attach the Selector Pin W/Coil (#20) to the Top Plate (#19).

2. Attach eight Buttons (#43) to the Top Plate (#19).

3. Attach two Rubber Counterweights (#17) to the Left Pull Arm (#6) and the

Right Pull Arm (#7) using:

four M10*25 HHB (#71) four Φ11*Φ20*2 Flat Washers (#56)

Note: Wrench Tighten Βolts and Nylon Lock nuts.

Here is the assembly instruction for 275LBS Weights !

Item No. Description Qty

87 Weight Plate 10LBS 2

88 Weight Plate 15LBS 3

89 Weight Plate 20LBS 10

275LBS Weights
