─ 18 ─

AssemblyAssembly

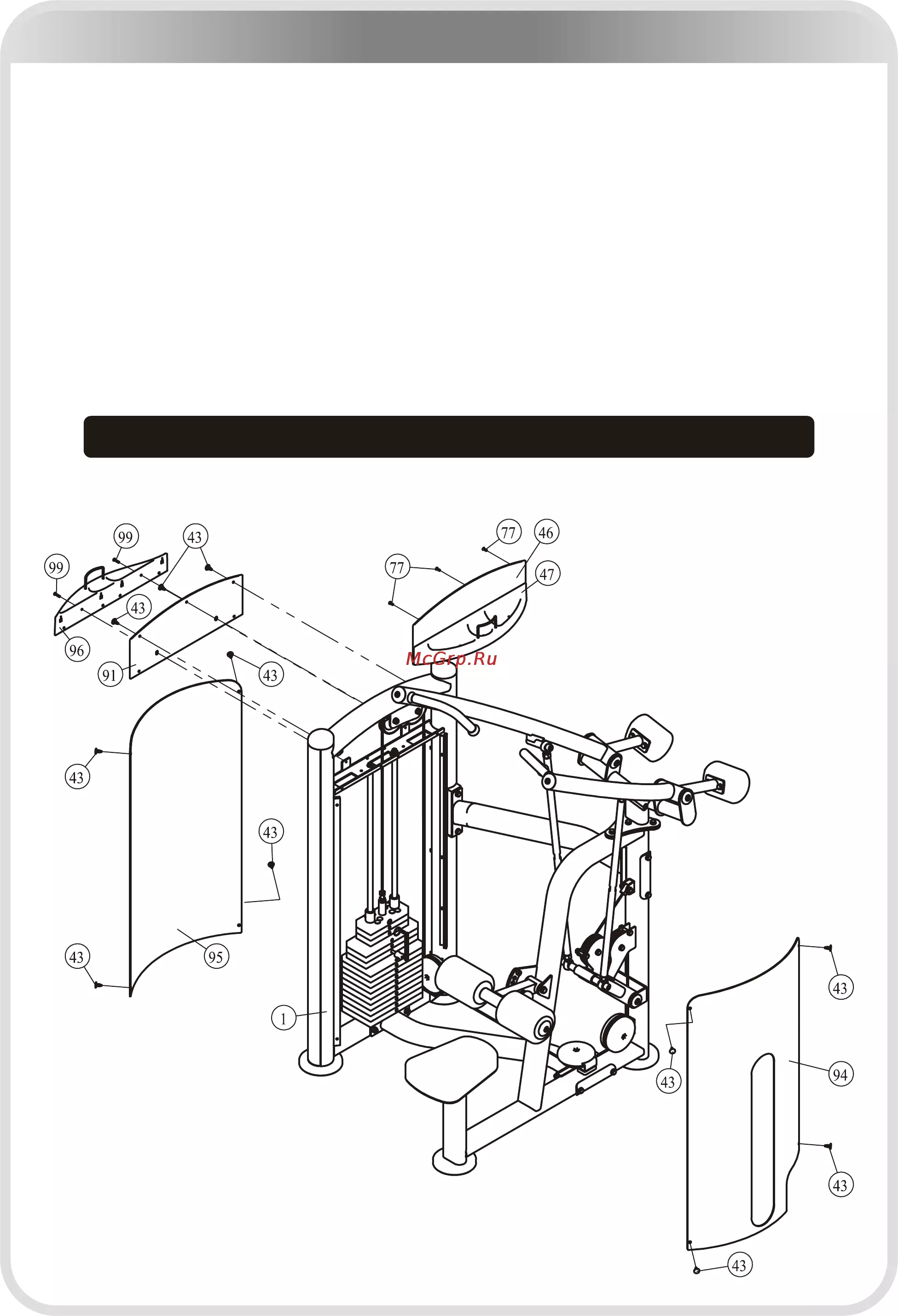

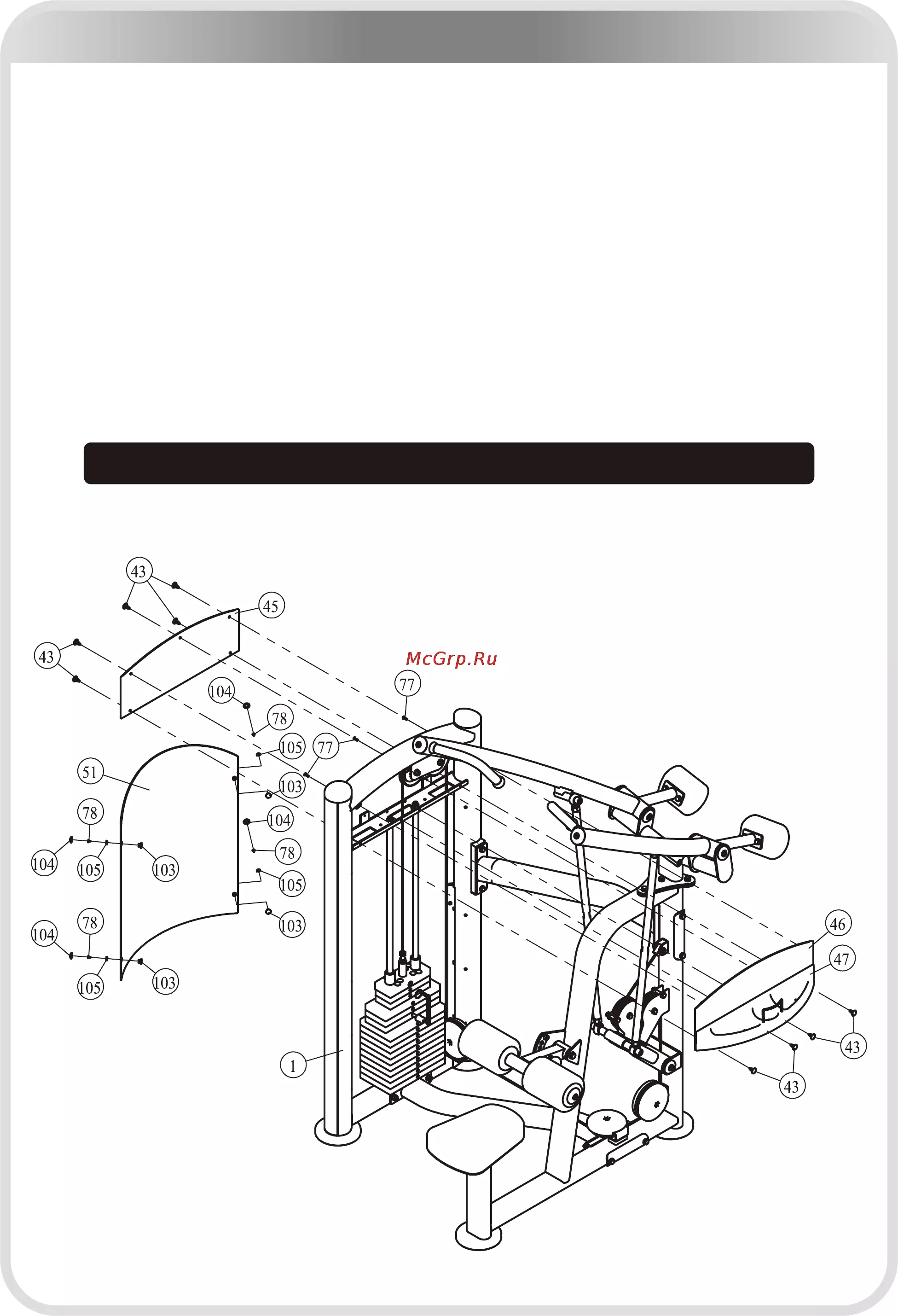

STEP 7

1. Attach the Front Shroud (#94) and the Rear Shroud (#95) to the Weight Stack

Frame (#1) using:

eight Φ8*Φ20*23 Buttons (#43)

2. Attach the Top Front Shroud (#46) and the Support (#47) to the Weight Stack

Frame (#1) using:

three M5*16 Flat Philips Screw (#77)

3. Attach the Top Rear Shroud-A (#91) and the Rear Support (#96) to the Weight

Stack Frame (#1) using:

three Φ8*Φ20*23 Buttons (#43) two M5*25 Flat Philips Screw (#99)

Note: Wrench Tighten Bolts and Nylon Lock nuts.

Here is the assembly instruction for Long Shroud !
