21
All information on the display is labeled (Fig. 3.6).
During a no-decompression stop dive, the following
information will be displayed:
- your present depth in meters [ft]
- the maximum depth during this dive in meters
[ft], indicated as MAX
- the available no-decompression time in minutes
in the center window as NO DEC TIME and as
a bar graph on the left side of the display. It is
calculated based on the five factors described
in section 6.1. “Operating Principles”.
- the water in temperature in °C [°F] in the lower
left corner
- the elapsed dive time in minutes, shown as
DIVE TIME in the lower right corner
- the Altitude Adjustment setting on the left side
of the center window with a wave and moun-
tain symbols (A0, A1, or A2) (see Table 3.4.)
- the Personal Adjustment setting on the left side
of the center window with a diver symbol and
+ signs (P0, P1, or P2) (see Table 3.5.)
- Diver Attention Symbol if there is micro-
bubble buildup, and surface interval should be
prolonged (see Table 3.3.)
Alternative displays by pressing the TIME button
(Fig. 3.7.):
- the current time, shown as TIME
NOTE! In Dive Mode the alternative display swit-
ches back to the main display after 5 seconds.
Bookmark3.3.2.
It is possible to make special marks in the profile
memory during a dive. These Bookmarks will be
shown as a blinking dive log symbol when scrolling
the profile memory on the computer display. To make
a bookmark on the profile memory during a dive press
the PLAN button (Fig. 3.8.).

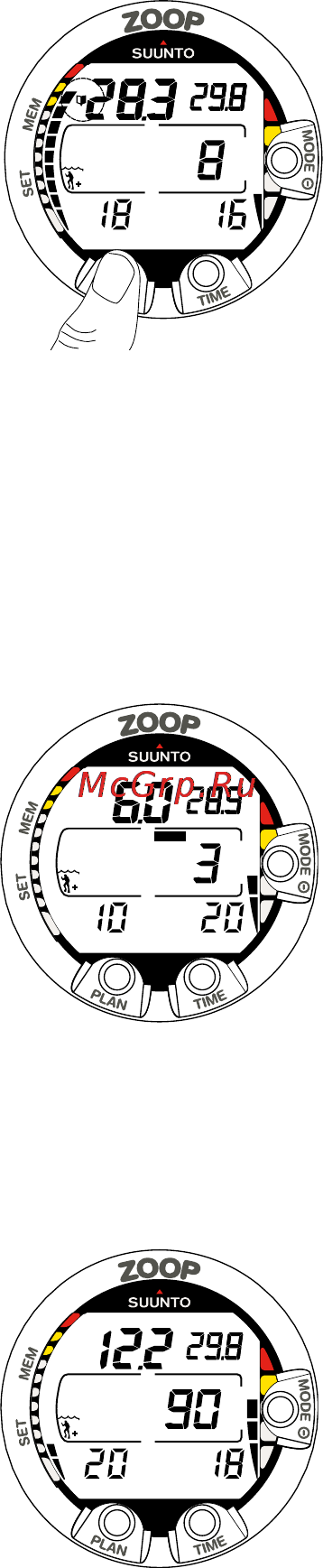

Fig. 3.8. Bookmark activation.
An annotation, Bookmark, is
placed in the profile memory
during a dive by pressing
PLAN button. Note Logbook
symbol.
m
NO DEC TIME
T
C
B
º
C
MAX
DIVE TIME
MAX
Fig. 3.9. A three minute
Recommended Safety Stop.
DIVE TIME
T
C
B
ºC
m
MAX
STOP
Fig. 3.10. Ascent Rate
Indicator. Three segments.
m
NO DEC TIME
T
C
B
ºC
MAX
DIVE TIME
