20
between 6 m to 3 m [20 ft to 10] also the CEILING
label, ceiling depth and the calculated Safety Stop
time appear in the display. You should wait until the
Mandatory Safety Stop warning disappears (Fig.
3.13.).
The Mandatory Safety Stop time always includes the
three minute Recommended Safety Stop time. The total
length of the Mandatory Safety Stop time depends on
the seriousness of the ascent rate violation.
You must not ascend shallower than 3 m [10 ft] with
the Mandatory Safety Stop warning on. If you ascend
above the Mandatory Safety Stop ceiling, a downward
pointing arrow will appear and a continuous beeping
starts (Fig. 3.14.). You should immediately descend to,
or below, the Mandatory Safety Stop ceiling depth. If
you correct this situation at any time during that dive,
there are no affects on the decompression calculations
for future dives.
If you continue to violate the Mandatory Safety Stop,
the tissue calculation model is affected and the dive
computer shortens the available no-decompression
time for your next dive. In this situation, it is recom-
mended to prolong your surface interval time before
your next dive.
DIVING WITH THE ZOOP3.3.
The ZOOP has two operating modes: Air mode for di-
ving with standard air only and Nitrox mode for diving
with oxygen enriched (EANx) mixtures. The Nitrox
mode is enabled in the MODE-SET-MODEL.
Basic Dive Data3.3.1.
The dive computer will remain in the Surface mode at
depths less than 1.2 m [4 feet]. At depths greater than
1.2 m the instrument will go into the Diving mode
(Fig. 3.6.).
Fig. 3.6. Dive starts
º
C
TIME
DIVE
m
NO DEC TIME
T
C
B
MAX

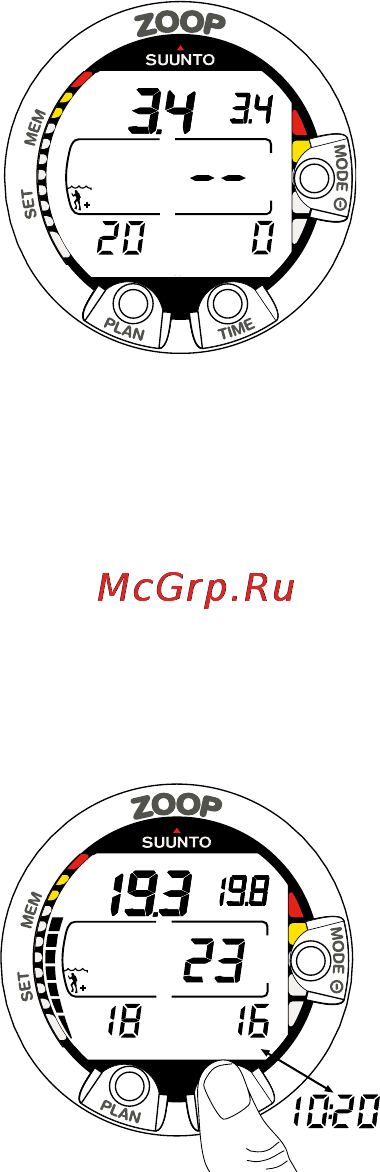

Fig. 3.7. Diving display.
Present depth is 19.3 m [63
ft] and no-decompression
stop time limit is 23 minutes
in A0/P1 mode. Maximum
depth during this dive
was 19.8 m [65 ft], water
temperature is 18°C [64°F],
elapsed dive time is 16
minutes. Alternative display
of current time 10:20 [10:20
am] is shown for 5 seconds
after pressing TIME button.
m
NO DEC TIME
T
C
B
º
C
MAX
DIVE TIME
MAX
TIME
