39
Logbook and Dive Profile 4.1.1.
Memory [1 LOGBOOK]
This instrument has a very sophisticated high ca-
pacity Logbook and Profile Memory, with a data
recording interval of 30 seconds. Dives shorter than
the recording interval are not registered.
To enter the Logbook Memory Mode select MODE-
MEMORY- LOGBOOK.
For each dive there are four pages of logbook dive
information. Use the scroll buttons to scroll the dis-
play between Logbook pages I, II, III and IV. The
data of the most recent dive is shown first.
The logbook dives can be scrolled through displaying
only the first page of each dive, or scrolling through
the 4 different pages of a dive.
When at the first page of a dive use the MODE button
to change the scroll sequence. When the arrow icon is
next to the Mode button the scroll button will scroll
through the first page only of each dive.
When Select is displayed next to the mode button
the scroll buttons will scroll through the four pages
of the selected dive.
The END text is displayed between the oldest and
most recent dive. (Fig. 4.11.)
Note that chronological sequence in the logbook is
determined by the date, not by the dive number.
The following information will be shown on four
pages:
Page I, main display (Fig. 4.6.)
• dive number in the dive series
• dive entry time and date.

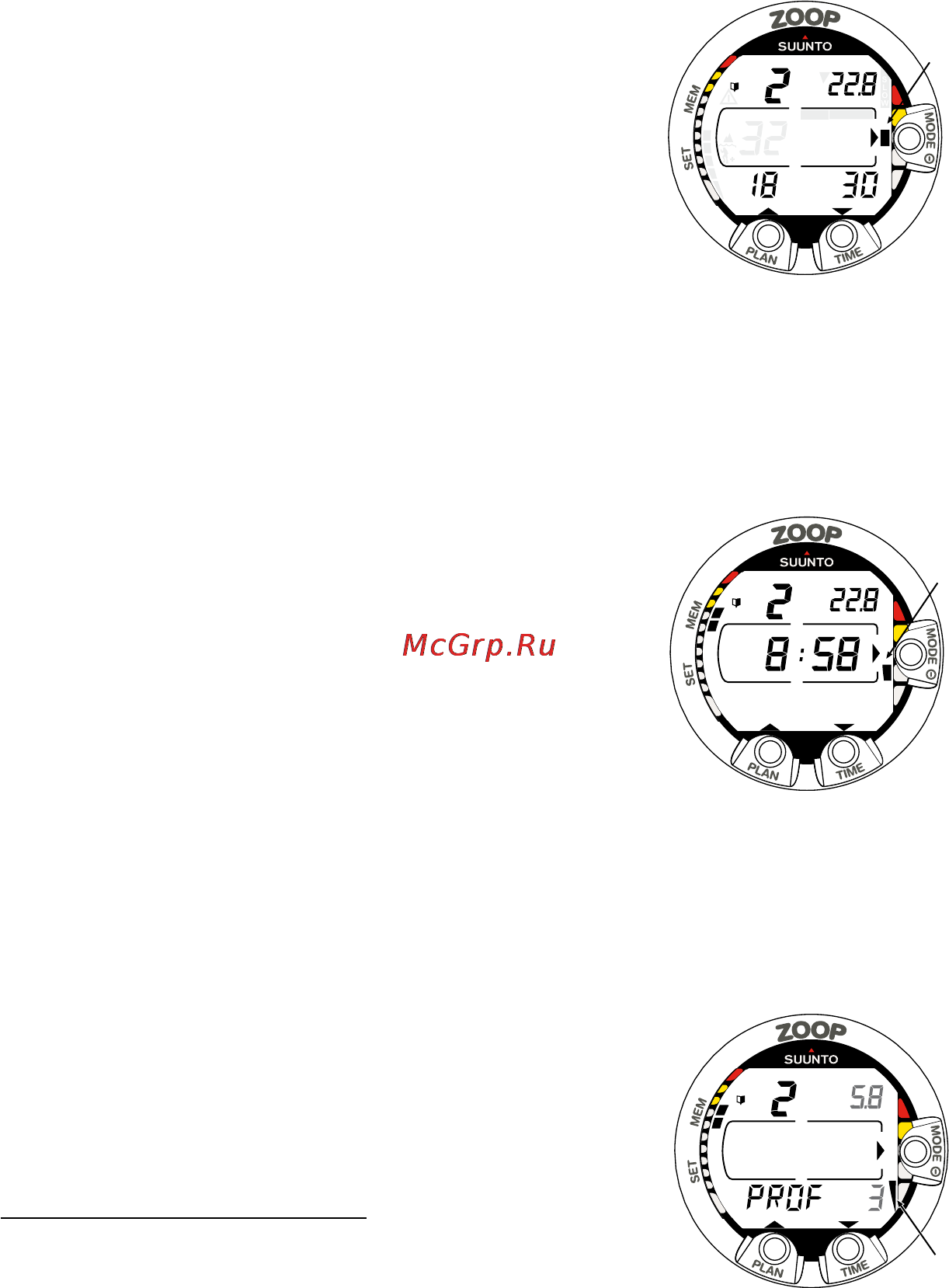

Fig. 4.7. Logbook, page II.
Main dive related data.
DIVE
TIMEDIVE
page 4
QUIT
Fig. 4.9. Logbook, page IV.
Profile of specific dive.
DIVE
MAX
TIMEDIVE
page 2
QUIT
ºC
O2%
OLF
STOP
ASC TIME
Fig. 4.8. Logbook, page III.
Surface interval time and
average depth
DIVEDIVE
AVG
TIME
SURF
page 3
QUIT
